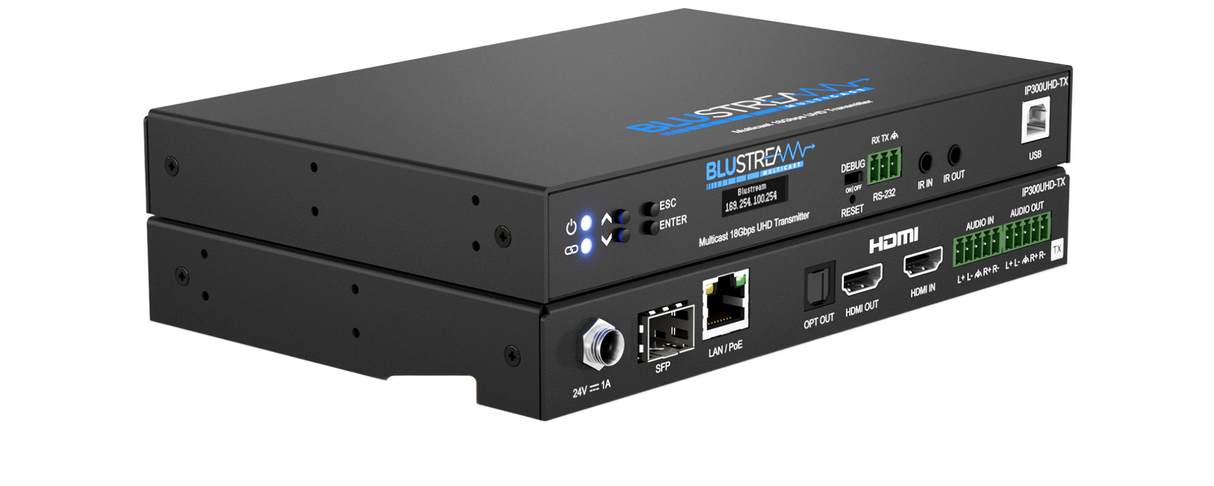

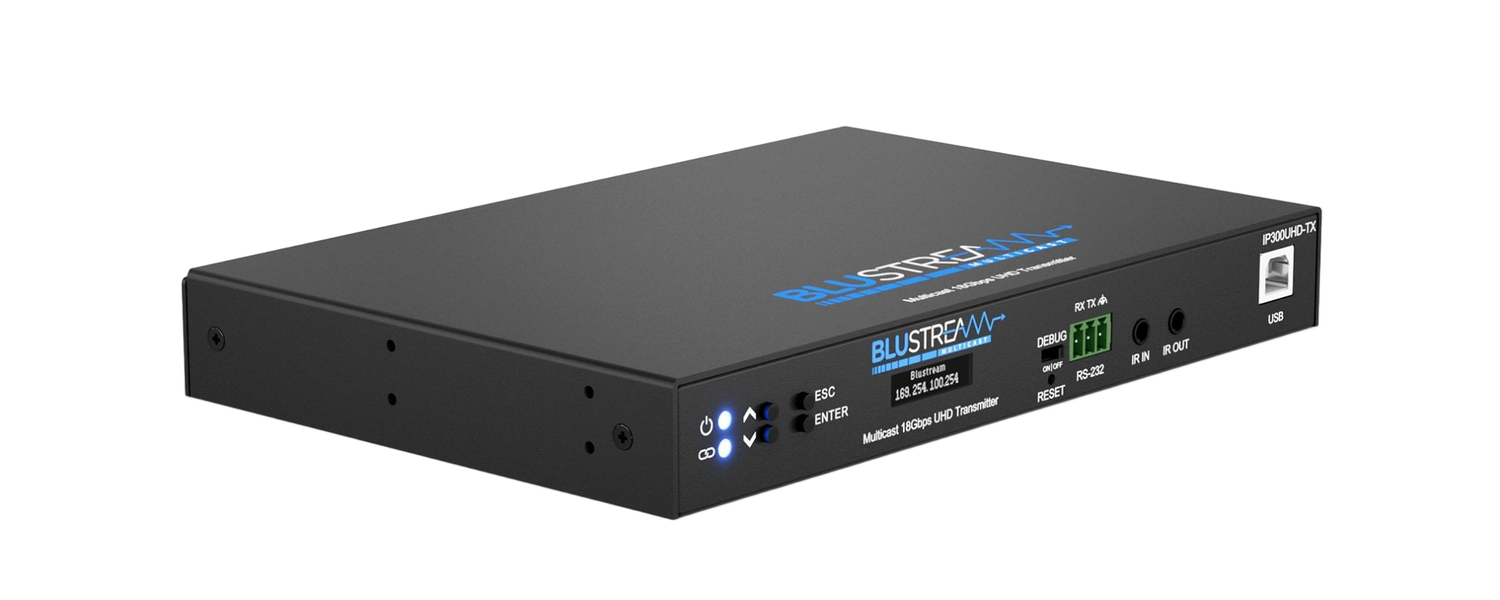

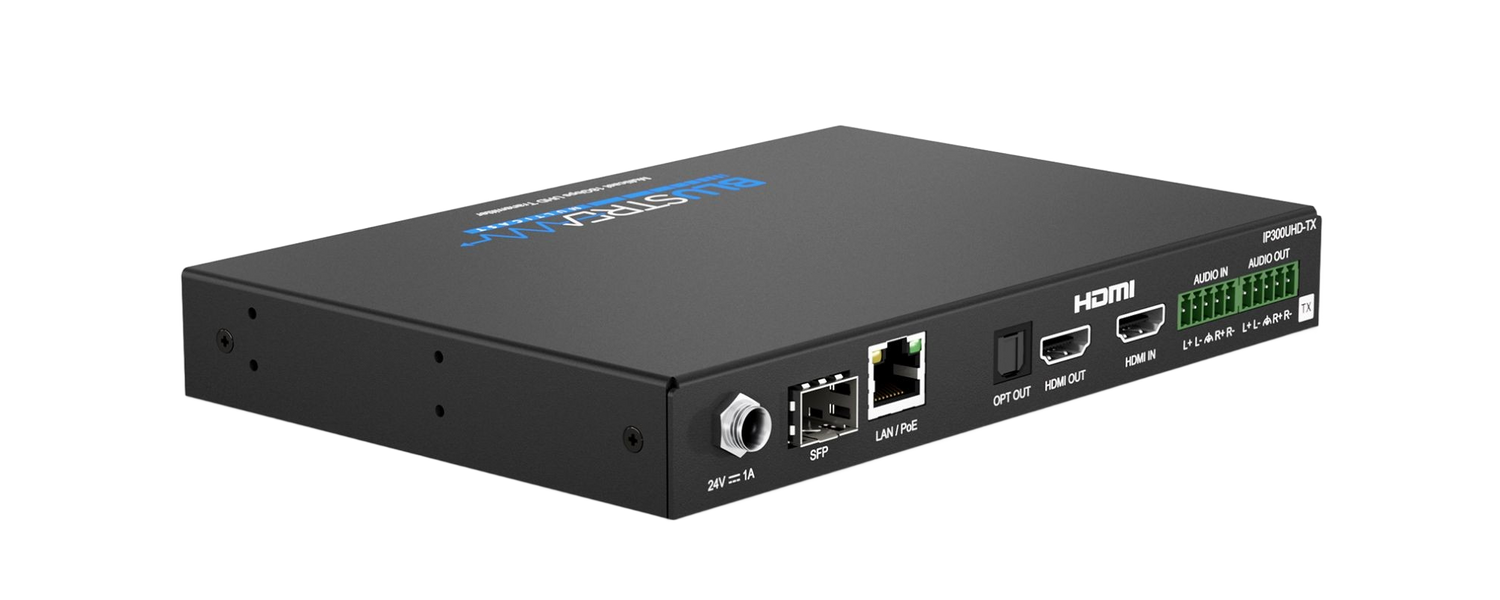

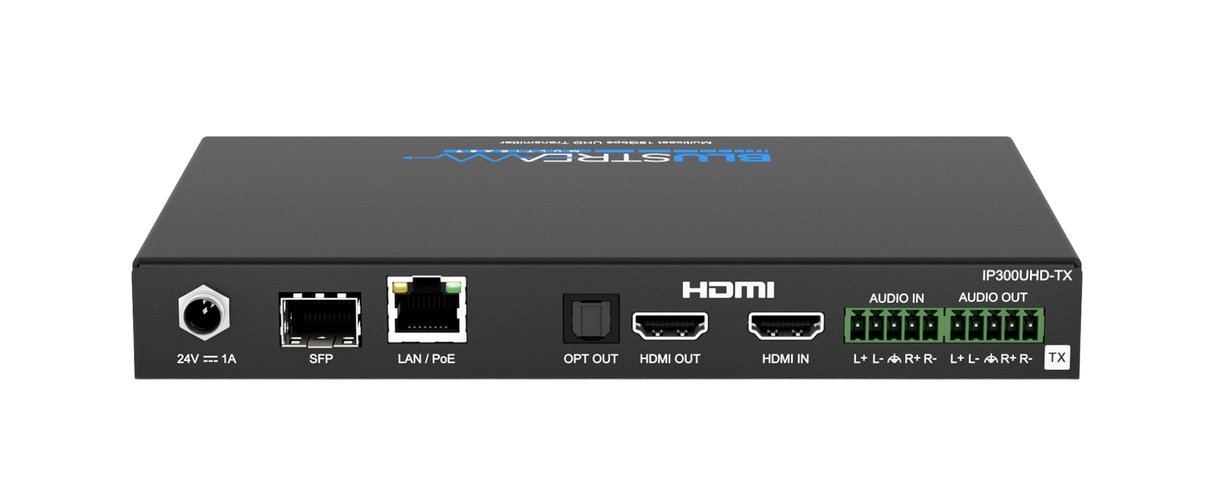

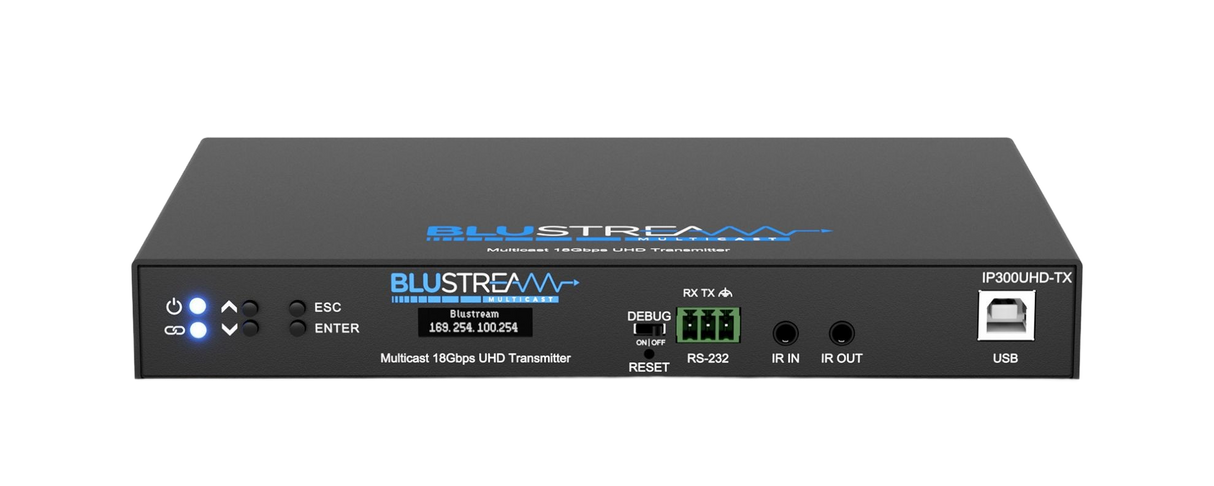

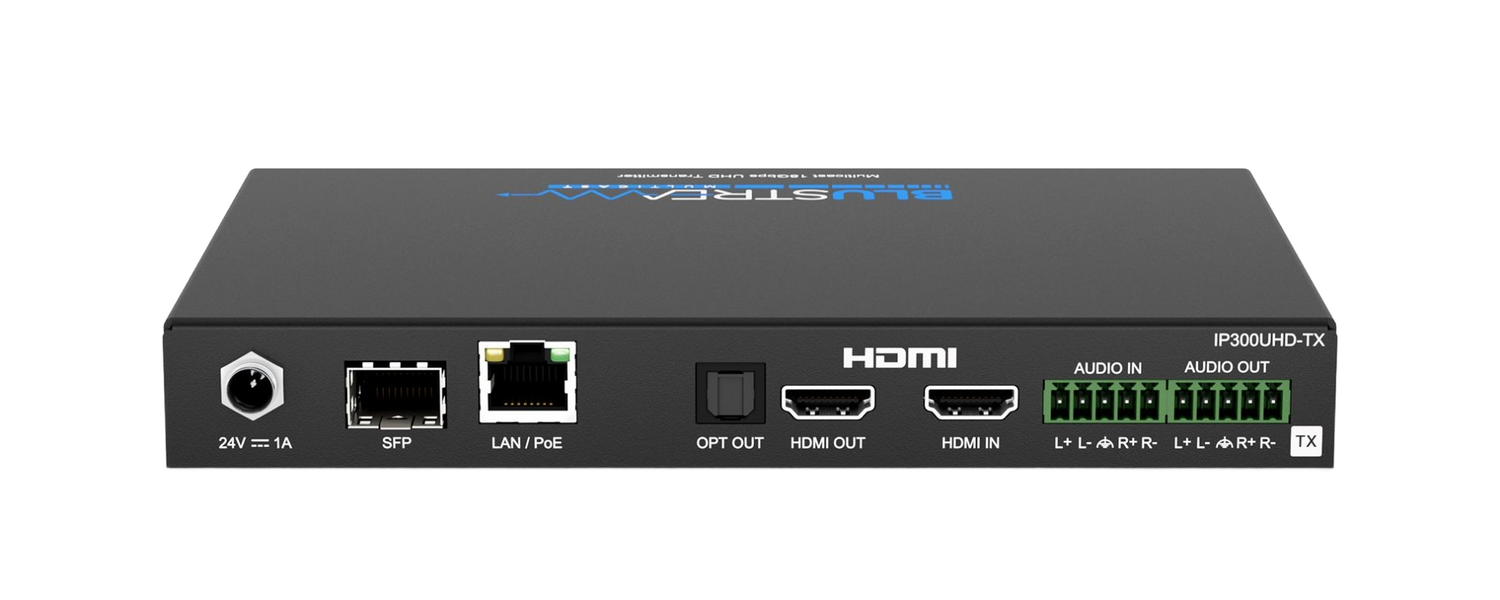

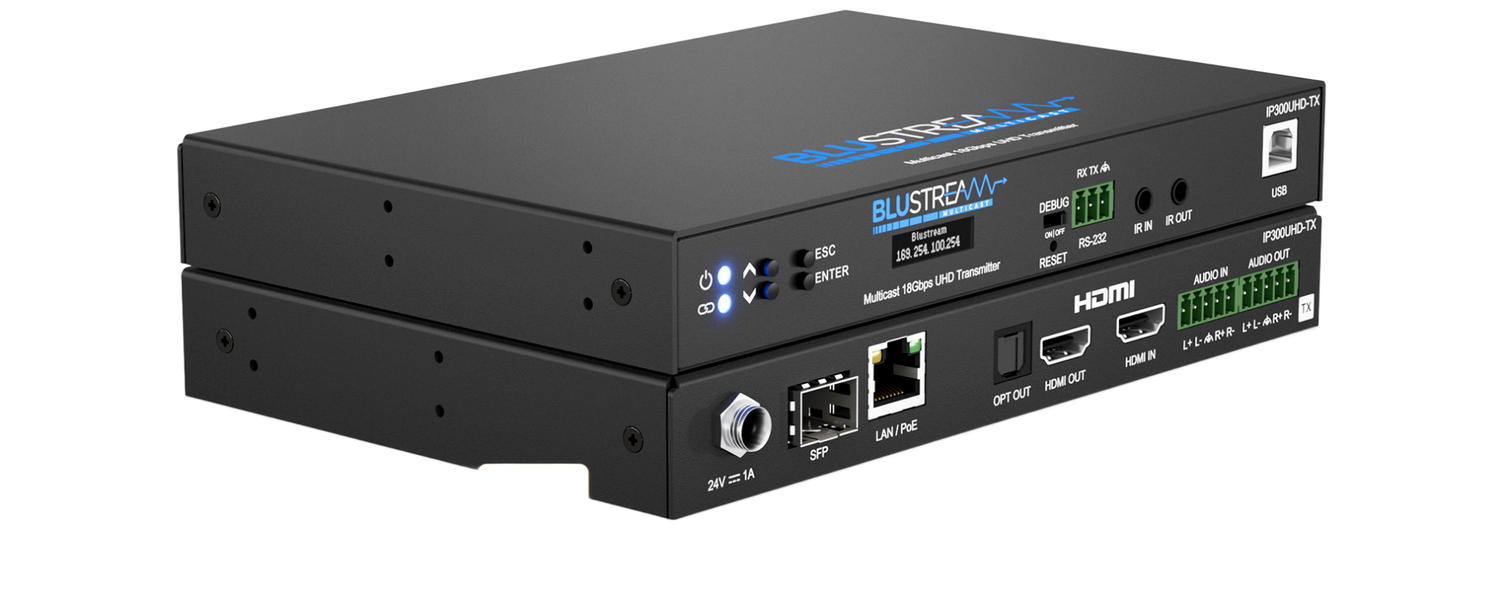

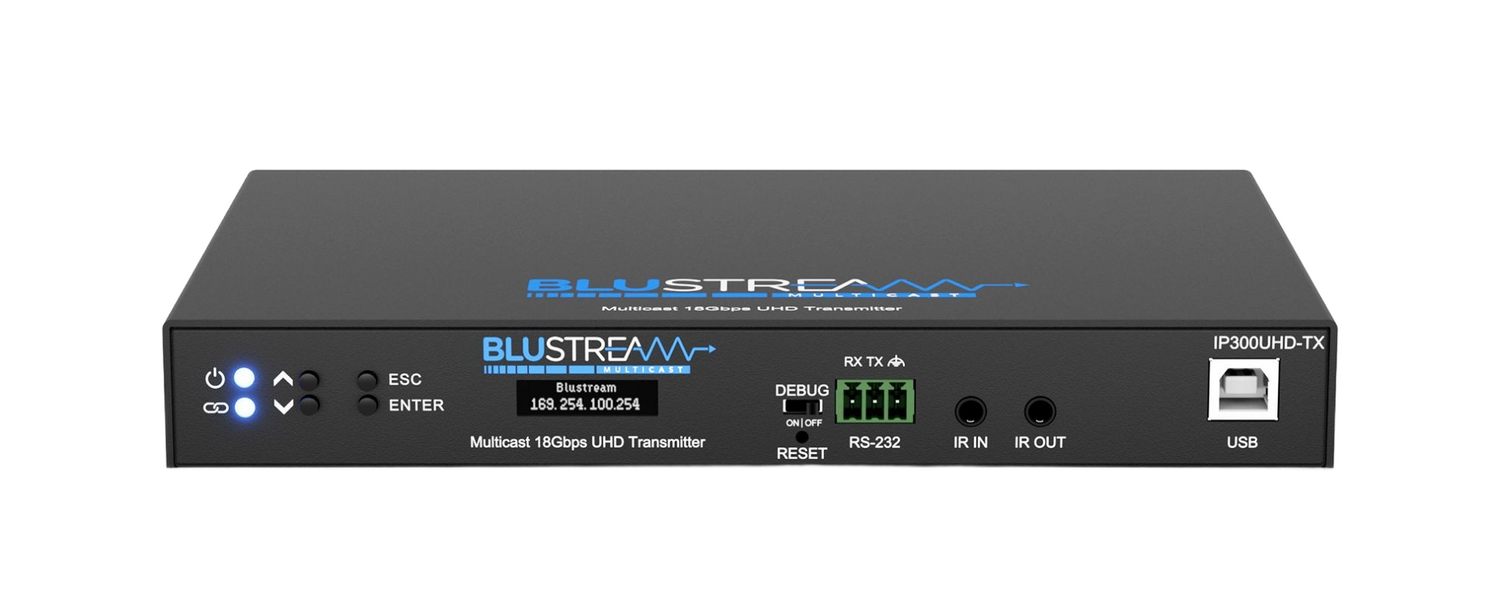

Blustream IP300UHD-TX 4K 60Hz UHD HDMI Video over IP Transmitter with PoE over 1Gb Network

• Video Input: 1 x HDMI Type A, female
• Video Output: 1 x LAN RJ45 connector, 1 x SFP connector, 1 x HDMI Type A, female
• Audio Input: 1 x 5-pin Phoenix connector
• Audio Output: 1 x 5-pin Phoenix connector, 1 x Optical (S/PDIF)
• Ethernet Port: 1 x LAN RJ45 connector
• Fiber Port: 1 x SFP connector (fiber module not supplied)
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• USB/KVM Port: 1 x USB2.0-type B for KVM
• IR Input: 1 x 3.5mm stereo jack
• IR Output: 1 x 3.5mm mono jack
• Power Consumption: 8W (max)
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
• Dimensions:  7.48 x 5.03 x .98"
• Weight:         1.65 lbs

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• SFP port for signal distribution over fiber
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR including Dolby Vision LLM
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Audio breakout to optical (S/PDIF) and analog L/R audio outputs, supporting both balanced and unbalanced audio signals
• Balanced/unbalanced analog audio input for replacing the HDMI embedded audio with a different audio signal
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products

IP300/350 Multicast platform features 4 operational modes:

• Matrix distribution (requires 1Gb network switch)
• Video wall (requires 1Gb network switch)
• One-to-one HDMI extender (no network switch required)
• One-to-many HDMI extender (no network switch required)
