Chauvet DJ 4BAR Quad Wash Lighting
Chauvet DJ 4BAR Quad Wash Lighting
Login for Pricing
MSRP: $799.99Chauvet DJ | SKU:Chauvet DJ 4BARQUAD
ITEM: 0074-0003
Couldn't load pickup availability

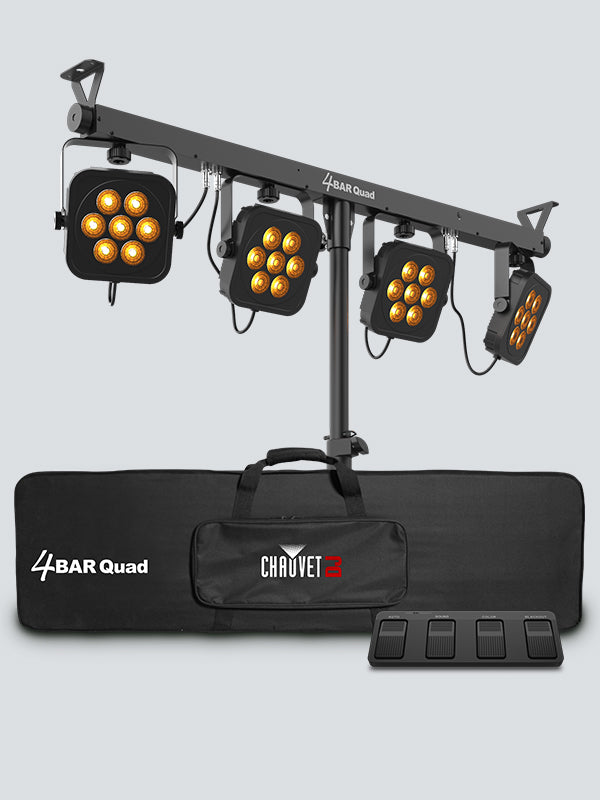

4BAR Quad is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad safely attaches to truss with built-in bolts, easily increasing mounting options.
Features
Features
- DMX Channels: 4, 6 or 19
- DMX Connectors: 3-pin XLR
- Max Unobstructed Distance: (foot switch): 100 ft (30.5 m)
- Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 1310 Hz
- Beam Angle: 14°
- Field Angle: 23°
- Operating Frequency: (D-Fi): 2.412 to 2.484 GHz (Foot switch): 433 MHz
- Fits Tripod Size: 1.5 in (36.80 mm)
- Illuminance: 2,353 lux @ 2 m (per pod)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz 78 W, 0.6 A @ 230 V, 50 Hz
- Approvals: CE, FCC
- Footswitch battery: 9 V
- Stand Height: 7 ft 4 in (2.2 m)
- Bracket Mounting Hole: M10 (1.5 mm pitch)
In the Box
In the Box
- 4Bar Quad
- Power cord
- Carrying bag
- Tripod
- Tripod Carry bag
- Wireless Footswitch
- Quick Reference Guide
Specs
Specs
- Dimensions: 45.7 x 2 x 12"
