Blustream  |  SKU: SW42DA-V2 | Item No. 0210-0465

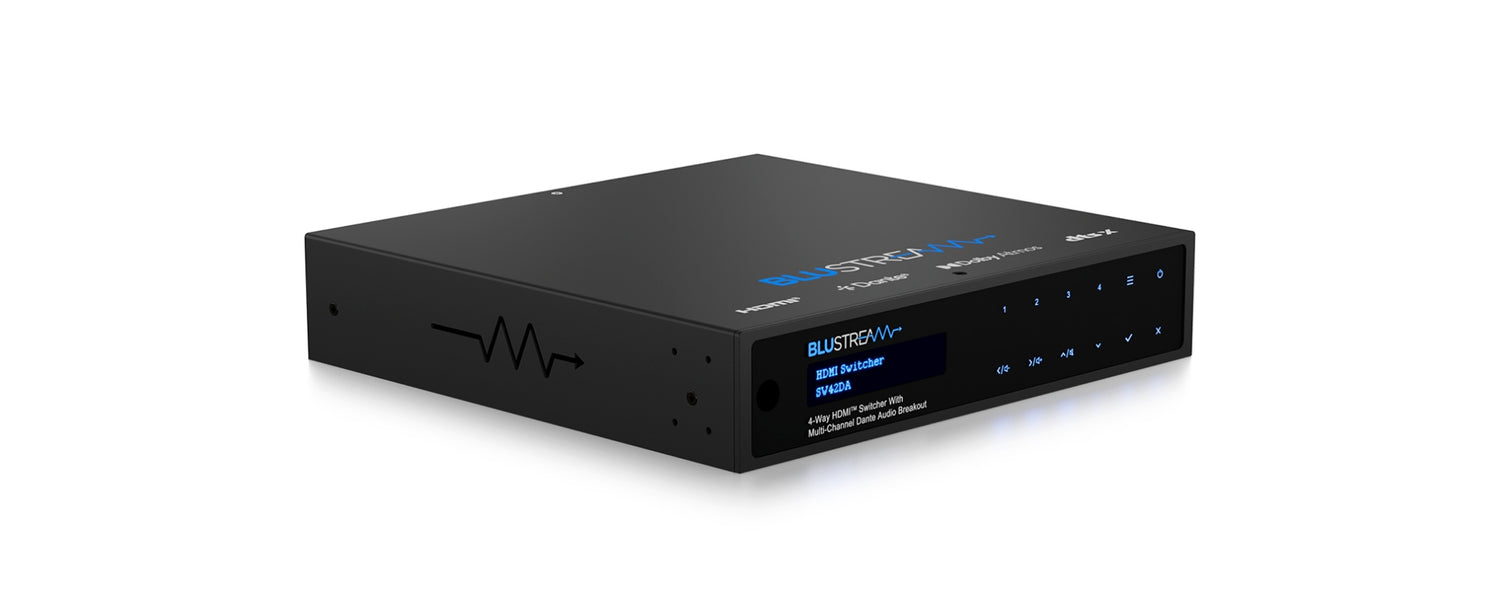

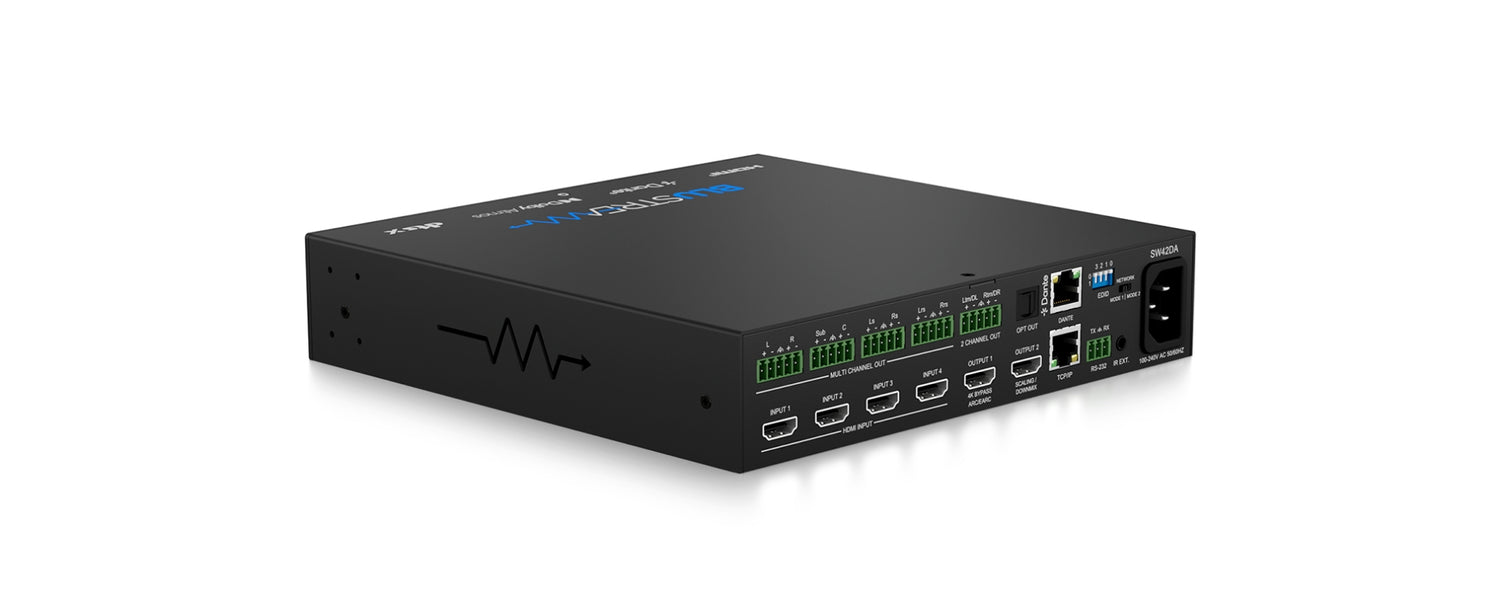

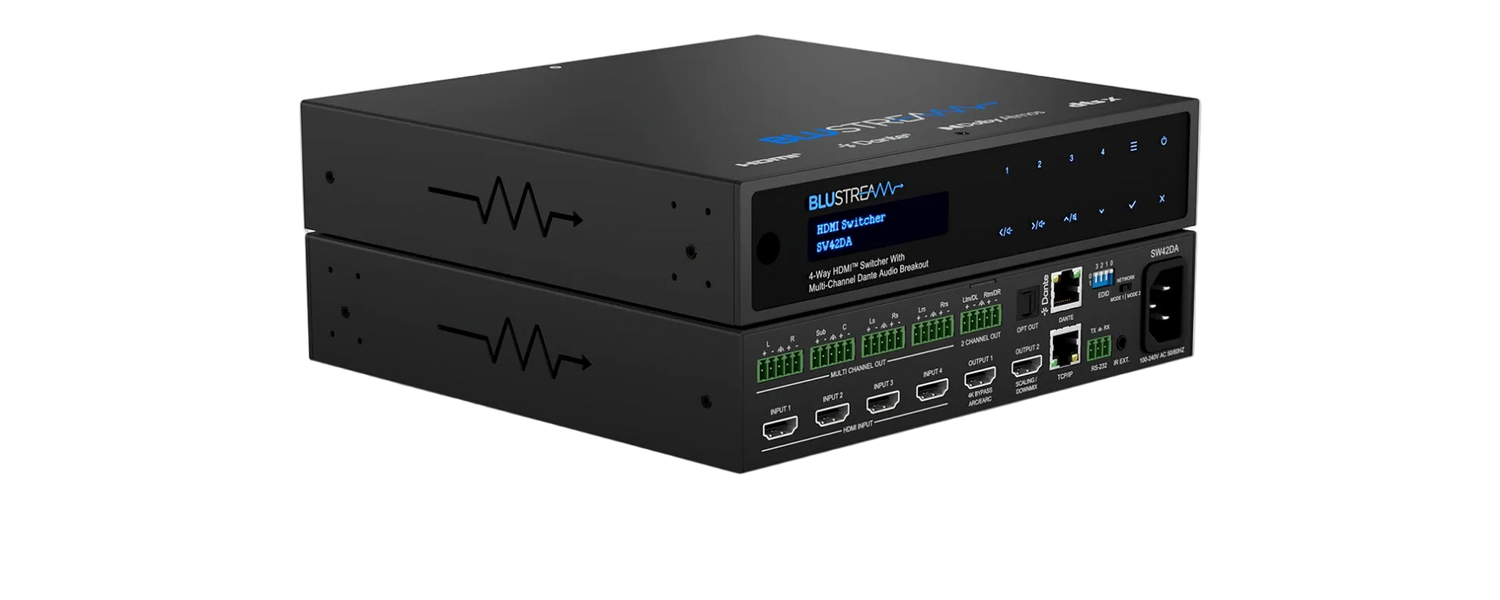

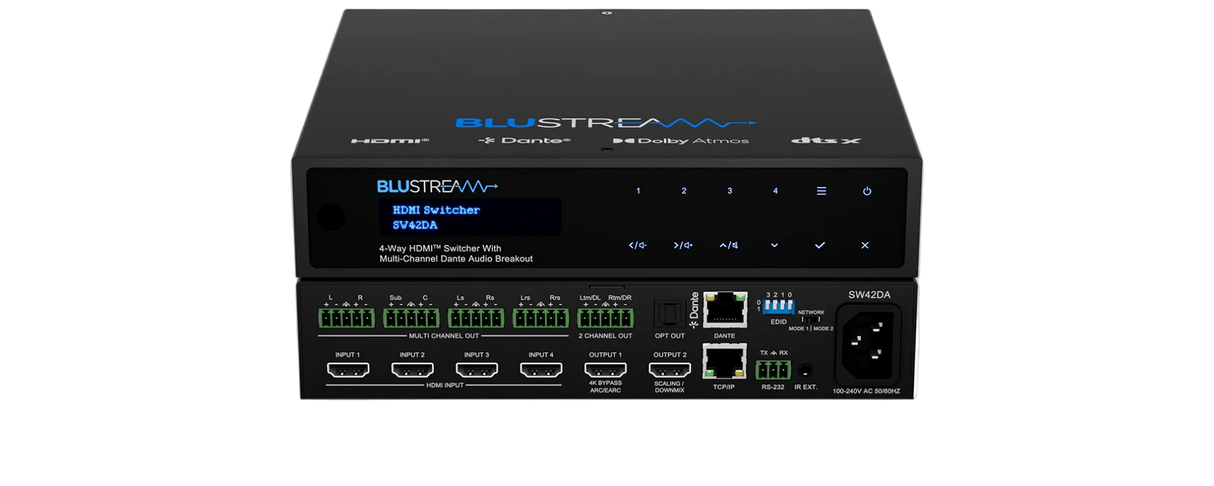

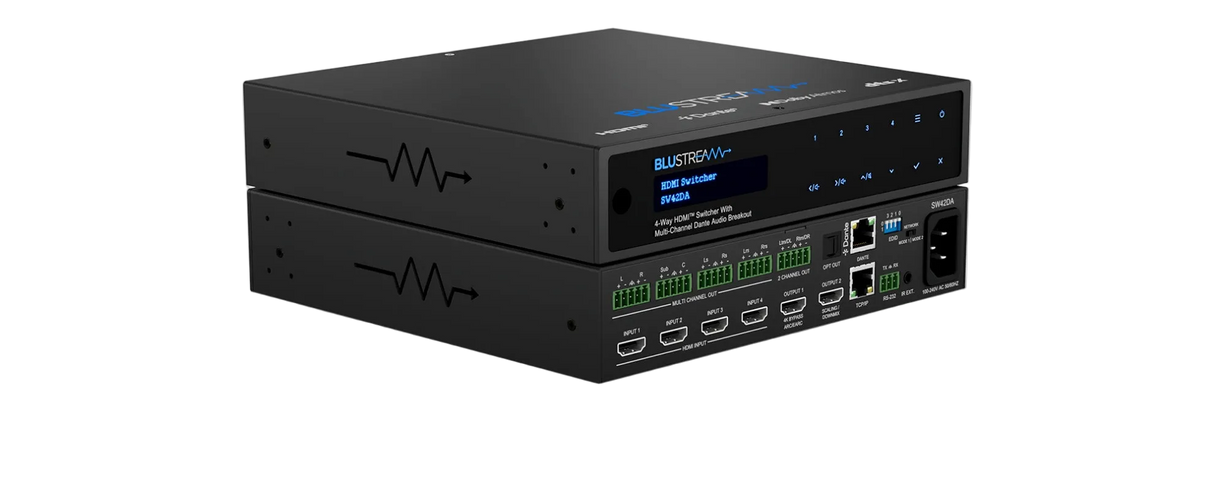

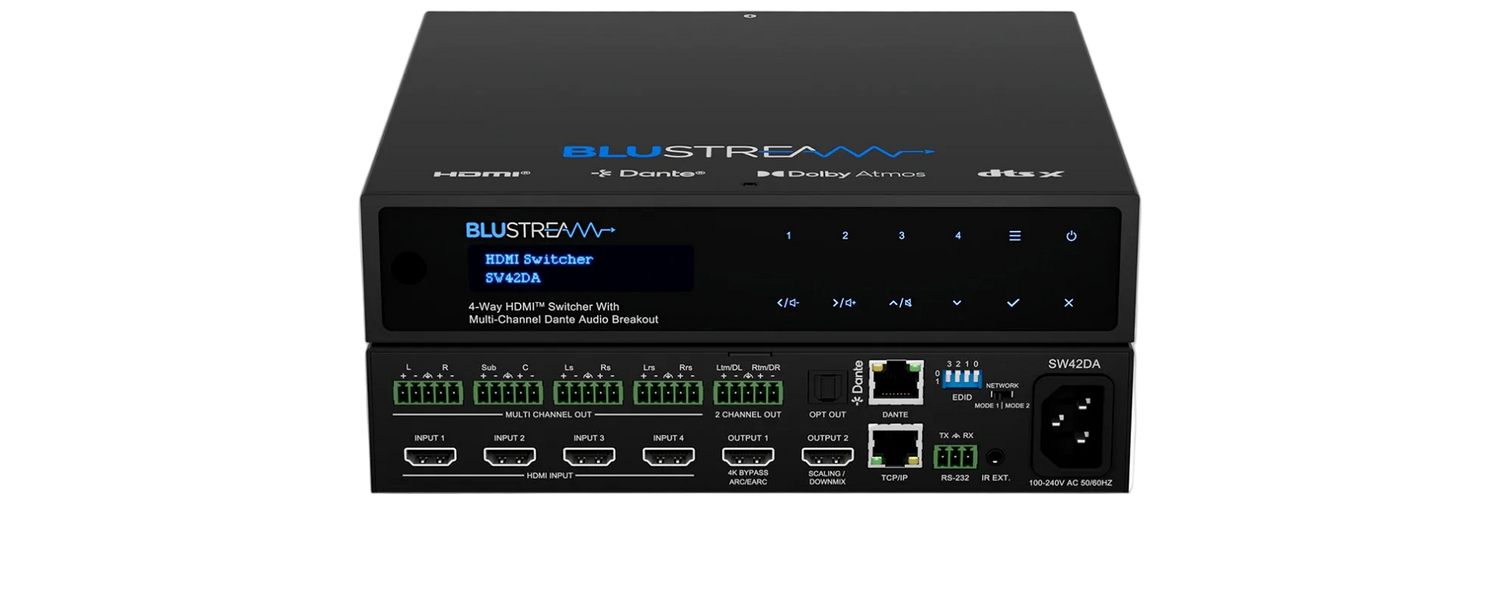

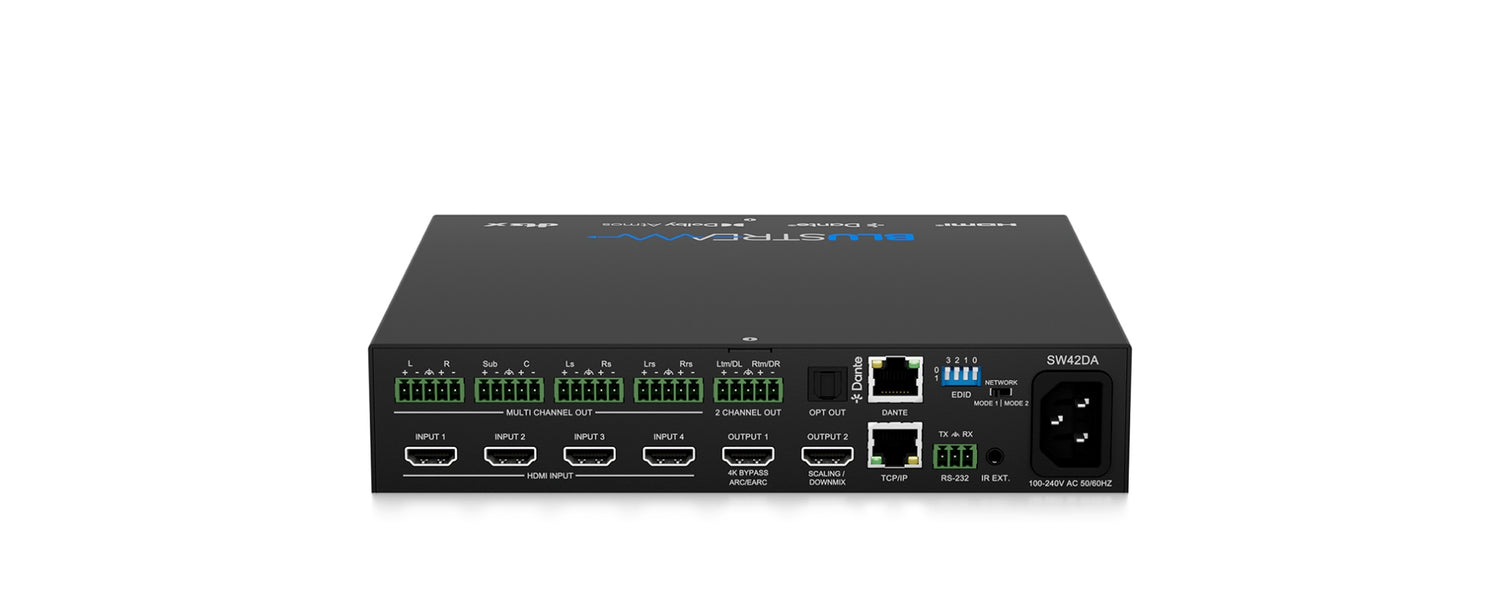

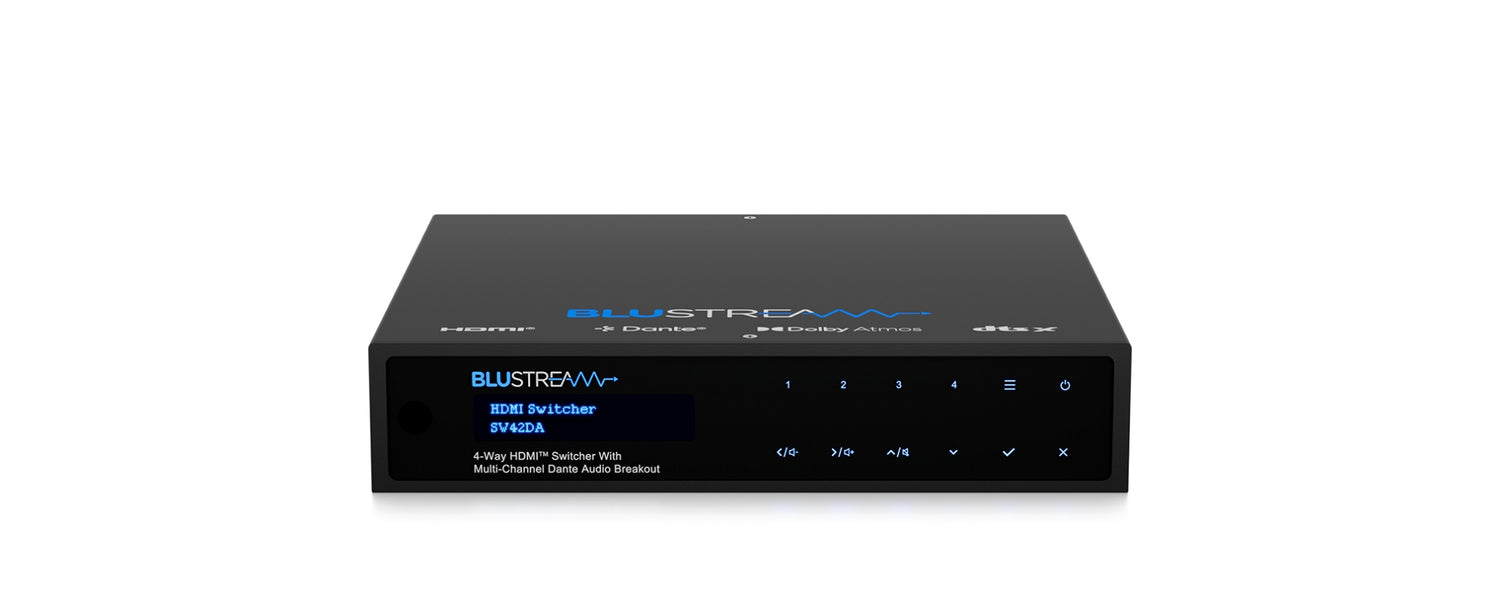

SW42DA-V2 4-Way HDMI Switcher with Dual HDMI Output

Login for pricing

MSRP: $2800.00

Description

The Blustream SW42DA is a 4-Way HDMI switch that has been designed to convert and downmix embedded Dolby Audio or DTS Audio within a HDMI switching environment, HDMI audio capabilities include the selection and manipulation of formats across both multichannel and 2ch downmixed Dante digital signal, optical, multi-channel and 2ch downmixed balanced/unbalanced analogue audio and HDMI outputs.

The SW42DA will pass native video and multi-channel audio to compatible equipment, with a second HDMI output featuring selectable video down-conversion of 4K 60Hz 4:4:4 video down to 1080p, with embedded native or down-mixed 2ch audio as required.

The SW42DA provides an advanced, but cost effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a Dante multi-room system where there are a mixture of 2ch and/or 7.1ch zones or 7.1.2/5.1.4 (9.1ch) audio, with multiple output resolution requirements.

Product Features

• Features 4 x HDMI inputs which can be switched to the dual HDMI outputs simultaneously
• Supporting Dolby Atmos® Technology
• Supports HDMI 2.0b 18Gbps specification, including 4K 60Hz 4:4:4 UHD video
• Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• HDMI output 1 replicates the HDMI input signal - up to 4K 60Hz 4:4:4 and 5.1.4ch / 7.1.2ch Dolby Atmos® and DTS-HD multi-channel audio
• HDMI output 2 features an optional 4K video down-scaler, and 5.1.4ch / 7.1.2ch to 2ch Dolby Atmos® and DTS-HD audio downmixing
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos®, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout of Dolby Atmos® and DTS-HD to up to 8 channels of Dante audio (7.1ch), with an independent 2 down-mixed channels of Dante audio
• HDMI audio breakout of Dolby Atmos® and DTS-HD to up to 10 channels of Dante audio (7.1.2ch / 5.1.4ch)*
• HDMI audio breakout to 7.1ch balanced / unbalanced analogue audio outputs
• HDMI Dolby Atmos® and DTS-HD 7.1 down-mixing to 2ch balanced and unbalanced audio ouputs
• Supports ARC/eARC including breakout to 7.1ch and 2ch downmixed analogue, and Dante audio
• Supports: 44.1, 48, 88.2 & 96kHz Dante® sample rates @ 24-bit
• Configurable Dante® device latency using Dante® Controller
• Supports AES67 RTP audio transport
• Control via TCP/IP, web-GUI, RS-232, front panel buttons, and infrared
• HDCP 2.3 compliant with advanced EDID management

* The Dante 2ch down-mix channels can be re-allocated to allow for additional height channels (7.1.2ch / 5.1.4ch)



® Dolby Atmos is a registered trademark of Dolby Laboratories Licensing Corporation.

In the Box

1 x SW42DA
1 x Remote Control
1 x IR Receiver
1 x 19” Rack Mounting Kit
4 x Feet
1 x Quick Reference Card
IEC Power Cable(s)

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    8.42 in
  • Width
    8.66 in
  • Depth
    1.77 in
