RDL  |  SKU: TX-8A | Item No. 0165-0883

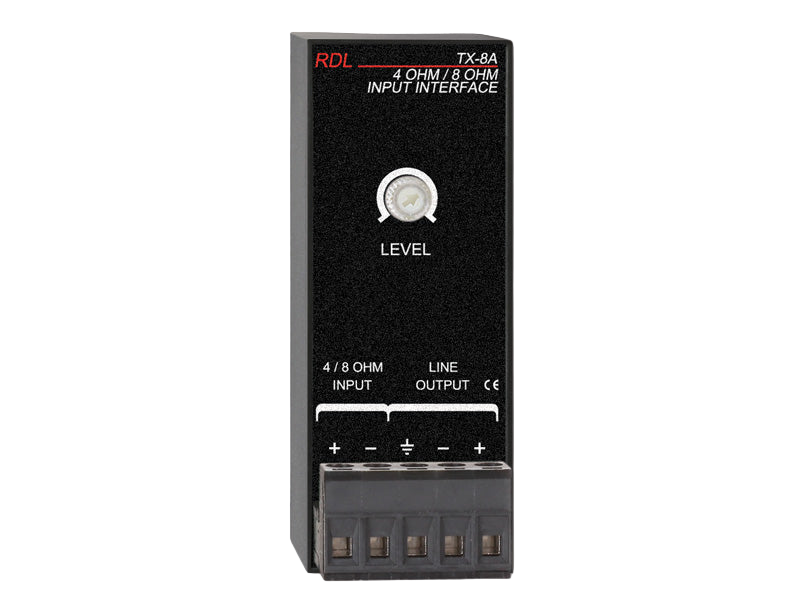

TX-8A 4 Ohm / 8 Ohm Input Interface

MSRP: $130.68

Description

The TX-8A is the ideal choice in many applications requiring superior quality transformer coupling between the output of a 4 or 8 Ohm power amplifier and the input of an audio mixer or amplifier. A front-panel LEVEL control allows the output to be adjusted for -10 dBV or +4 dBu over a wide range of amplified power levels.

The TX-8A is a single-channel (mono) module featuring barrier block connections for the input and output. A high quality bifilar wound audio transformer couples the audio input to the audio output. The amplified input terminals are isolated from ground. The output ground terminal is connected to the TX-8A metal support structure.

The audio transformer provides galvanic isolation. The secondary may be wired balanced or unbalanced. The TX-8A delivers the wideband audio, low distortion, audio clarity and headroom common to professional equipment in a module suited to general-purpose audio installations.

The excellent low frequency response makes the TX-8A well suited to feed the line-level input of a subwoofer amplifier. In a stereo installation, two TX-8A module output may be mixed to feed a mono audio line and/or a subwoofer amplifier line input.

The TX-8A's compact size permits mounting in a variety of spaces and in various locations in equipment racks. The TX-8A may be mounted where needed, to rack sides or in an equipment rack (either the front or rear rack rails) using a variety of available RDL mounting options. Use the TX-8A individually or combine it with other RDL products as part of a complete audio/video system.





Product Features

Converts an Amplifier Output to Line Level

Bridges 4 or 8 Ohm Speaker Line

Adjustable for Wide Range of Input Power Voltage

Converts Amplified Levels from 0.5 W to 400 W

Excellent Low Frequency Response

Suitable to Feed a Subwoofer Amplifier Input

Detachable Terminal Block Connections

Balanced or Unbalanced Output

Superior Quality Audio Transformer

Bifilar Windings

Galvanic Isolation

Convenience of RDL TXs

In the Box

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Length
    1.2in
  • Height
    3 in
  • Width
    1.5 in
  • Weight
    0.35 lb
