LEA  |  SKU: CS354D | Item No. 0147-0013

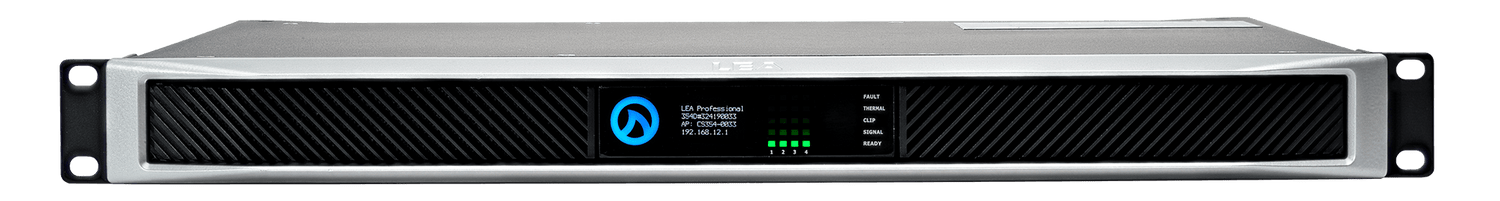

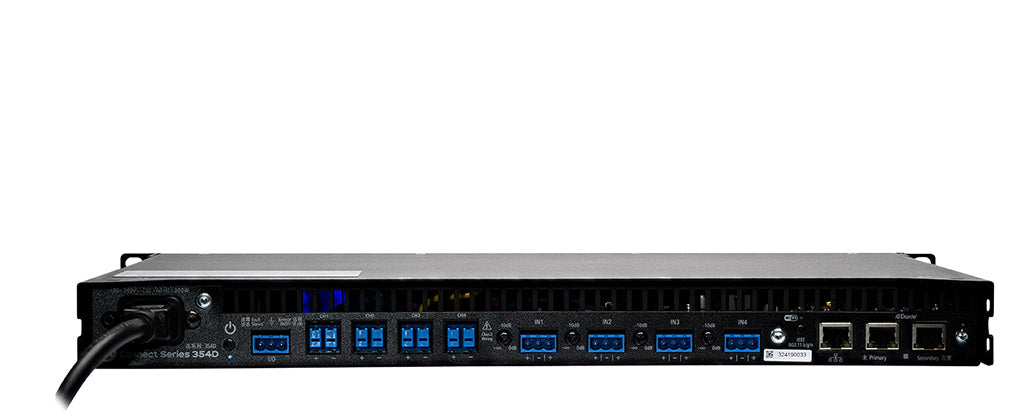

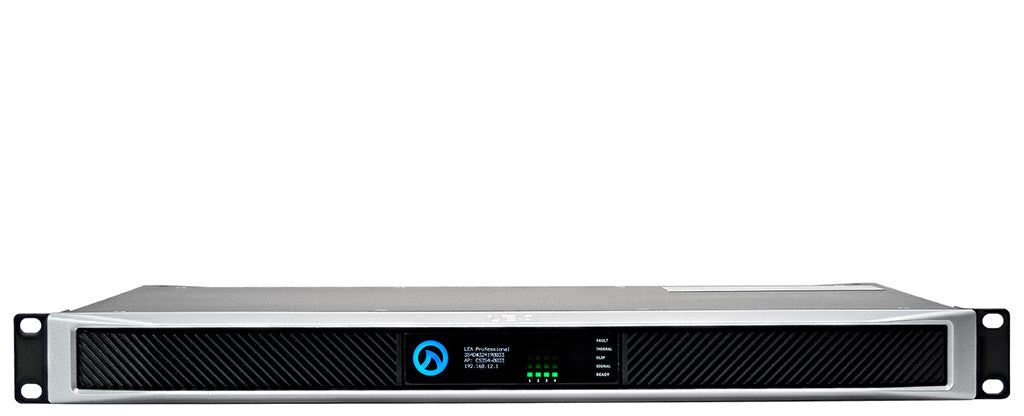

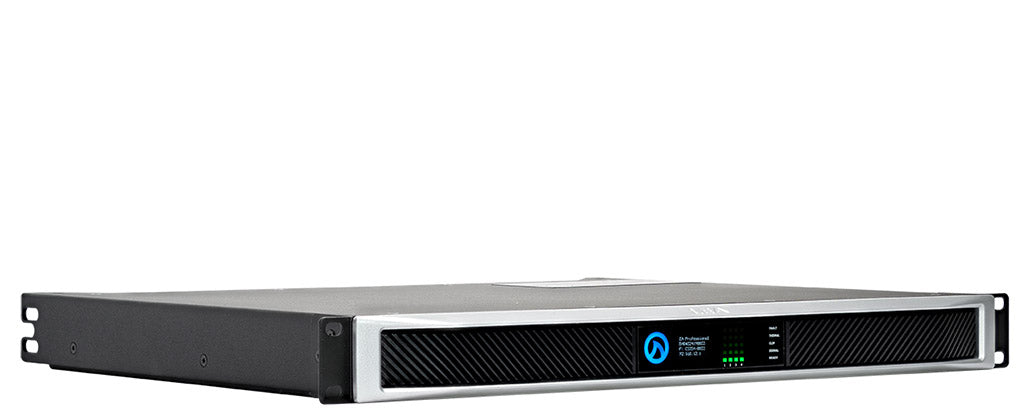

CS354D Amplifier 4 Channel 350W Dante

Login for pricing

MSRP: $3398.00
4 in stock

Product Features
  • Web Browser-based UI works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw

Specifications
  • Dimensions:         14.25 x 19 x 1RU
  • Weight:                 14 lbs
  • Shipping Weight:  18.7 lbs

Related Files

Spec Sheet

Manual

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The CONNECTSERIES 354D is a 4-channel amplifier with 350 watts per channel. As part of the Dante CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 354D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.
