Crown  |  SKU: CDi4x600 | Item No. 0087-0115

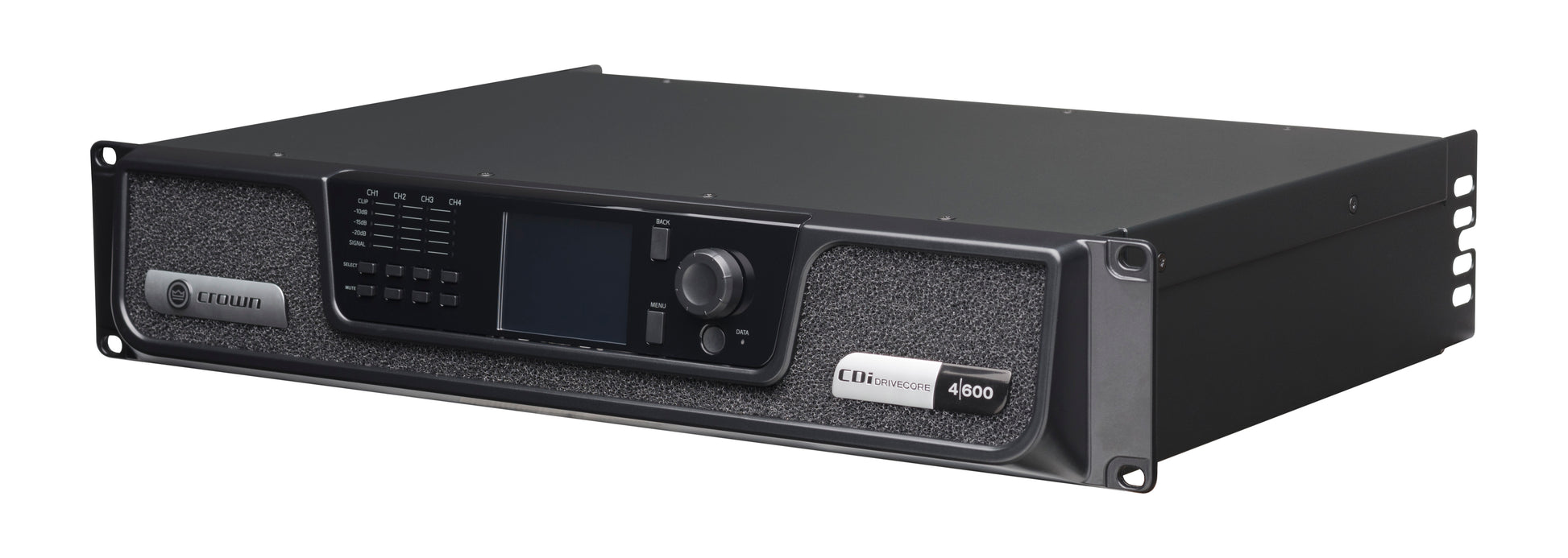

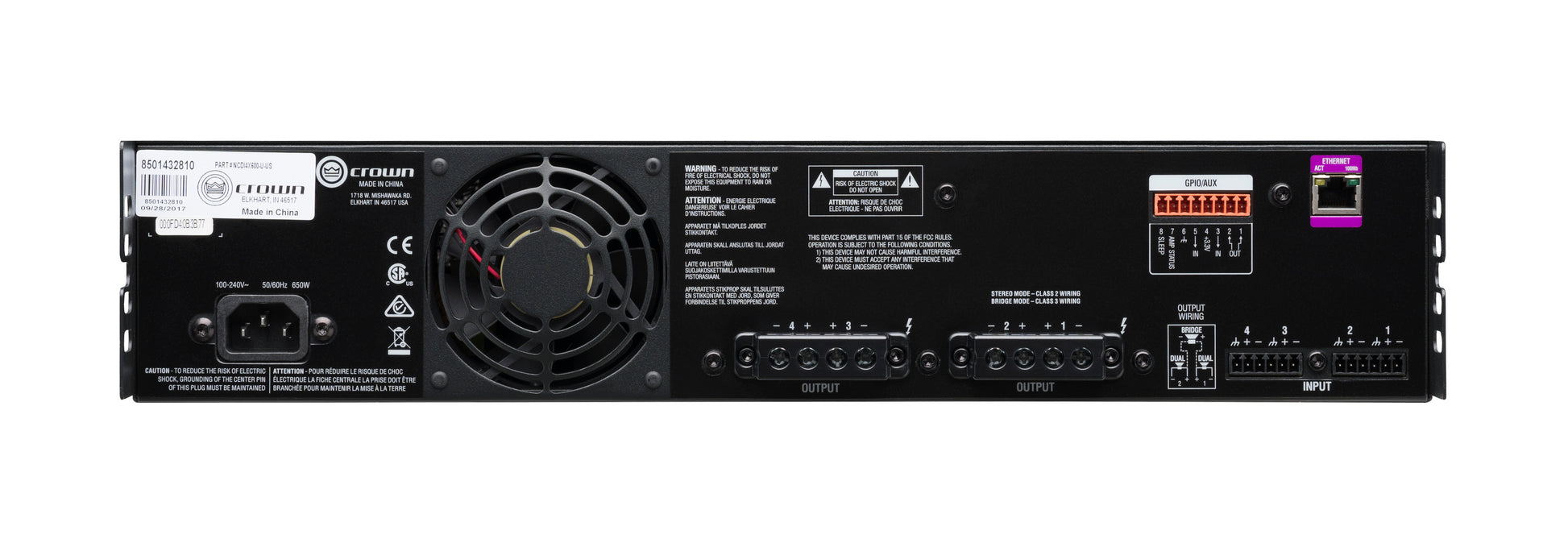

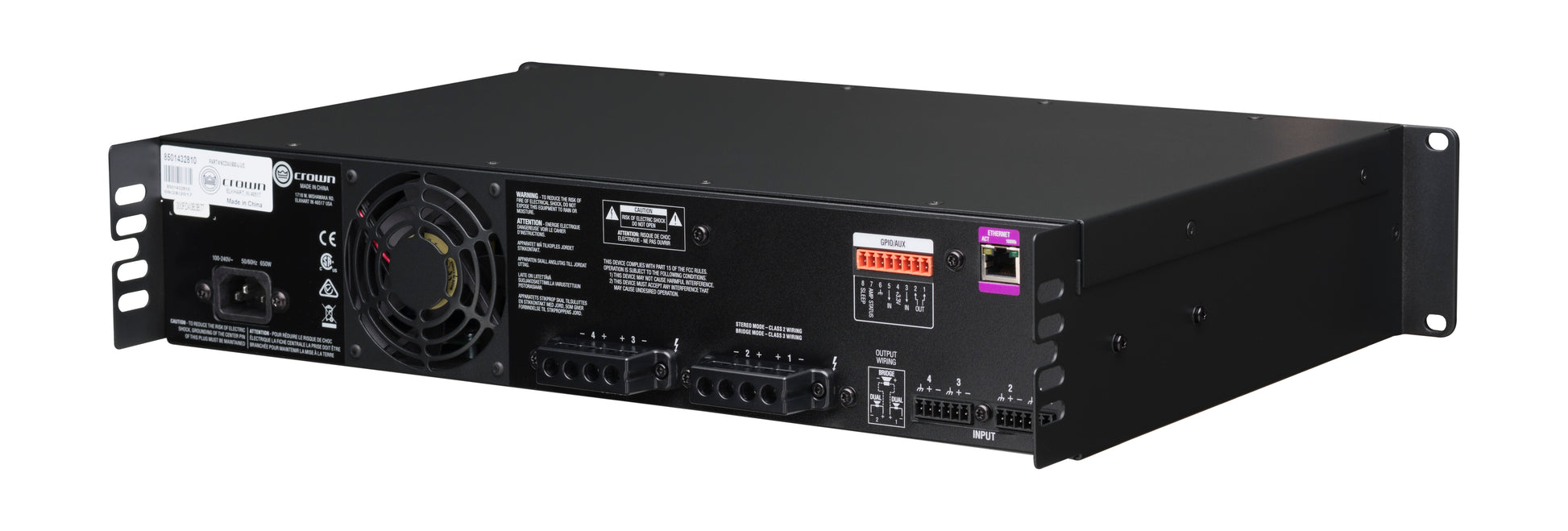

CDi4x600 4 Channel 600W per @ 4Ω 70V Power Amplifier + DSP

MSRP: $3411.00

Product Features

  • DriveCore™ Technology – Crown’s proprietary DriveCore technology eliminates  hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
  • Network Control and Monitoring – Through HARMAN’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
  • DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration and includes these integrated features:
  • Input Router
  • Input Delay – Up to 1000ms
  • Input Parametric EQ – 8 band
  • Crossover
  • Output Parametric EQ – 8 band
  • Output Delay – Up to 100ms
  • LevelMAX™ Limiter
  • Direct Drive 70/100Vrms Output – Each output channel is capable of providing either 70V or 100V for high impedance applications.

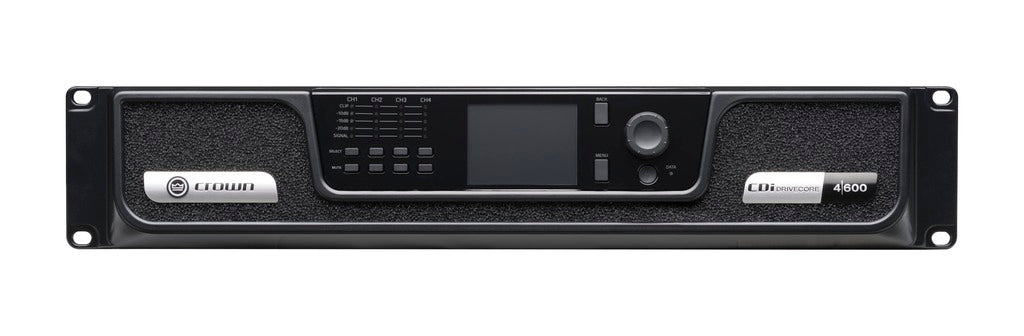

  • Front-Panel Interface – Completely configure the amplifier using an intuitive front-panel interface.
  • GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
  • Pre-loaded Speaker Tunings – For quicker and easier setup and installation.

Specifications

  • Dimensions:  19 x 3.5 x 14.25"
  • Weight:          20.1 lbs

Related Files

CDi Brochure

Spec Sheet - N/A

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance, rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.  Designed for ease-of-use in a variety of applications, the 4|600 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
