Blustream  |  SKU: MX22AB-8K | Item No. 0210-0352

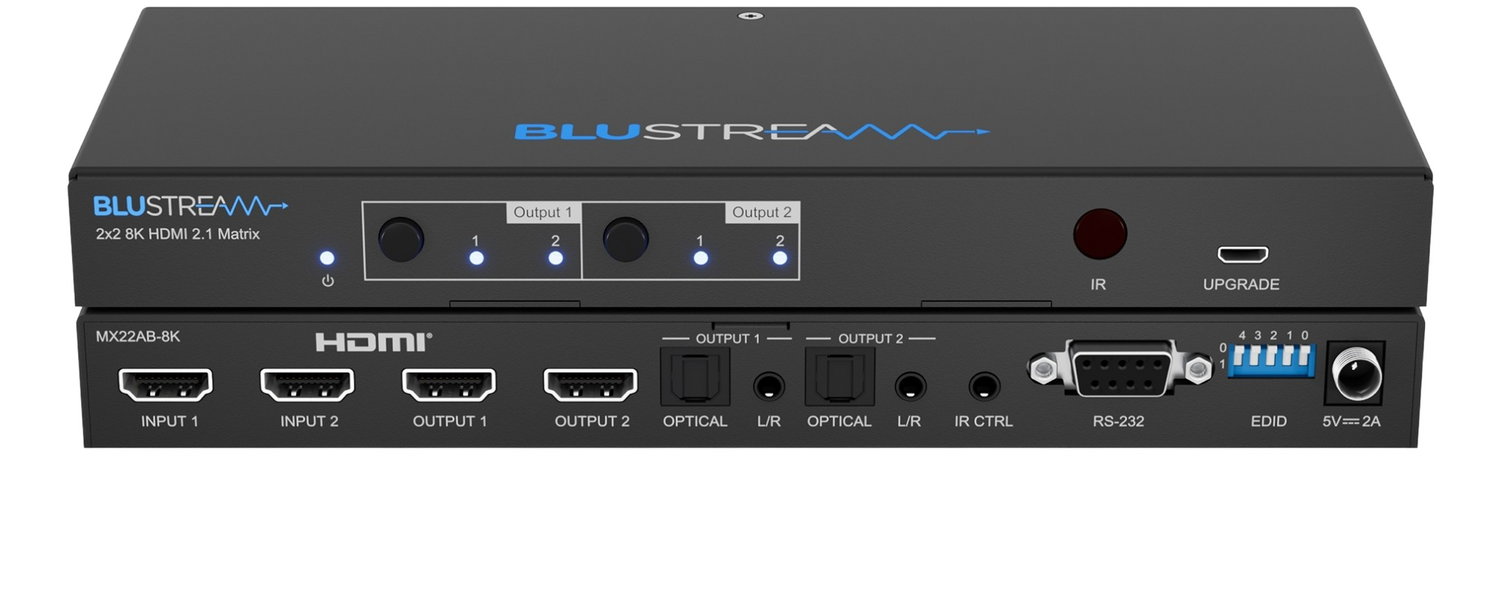

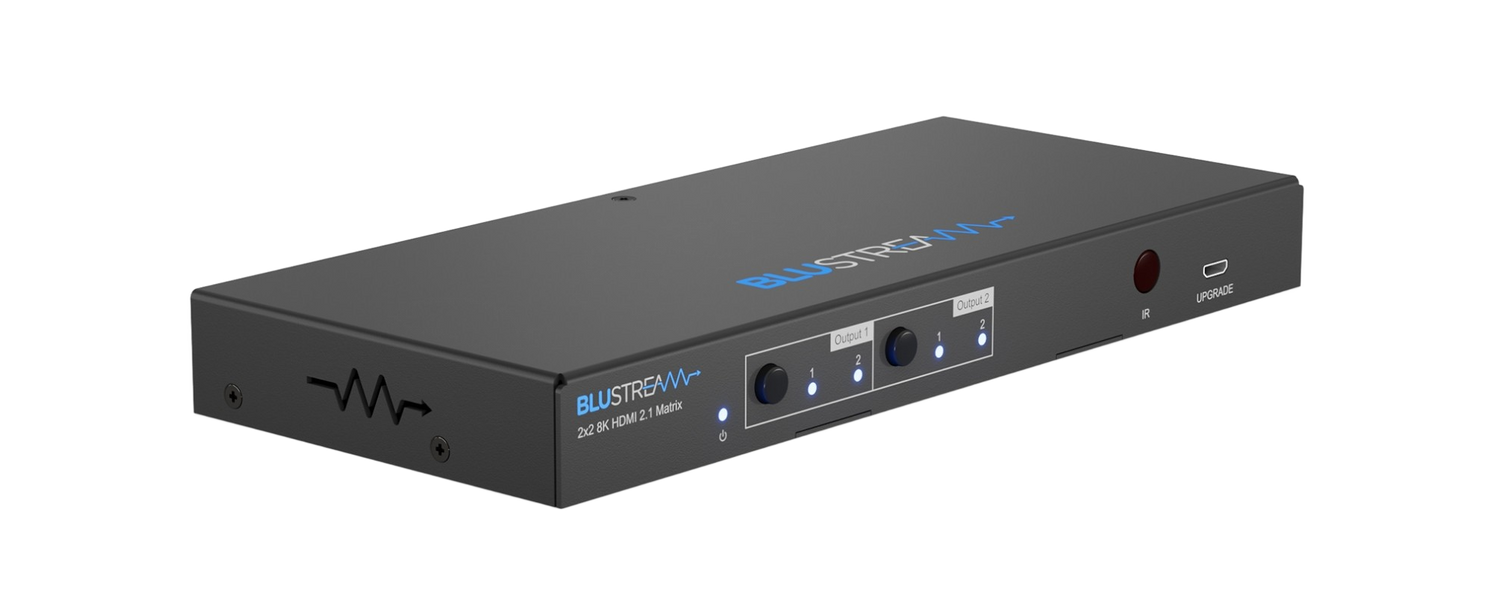

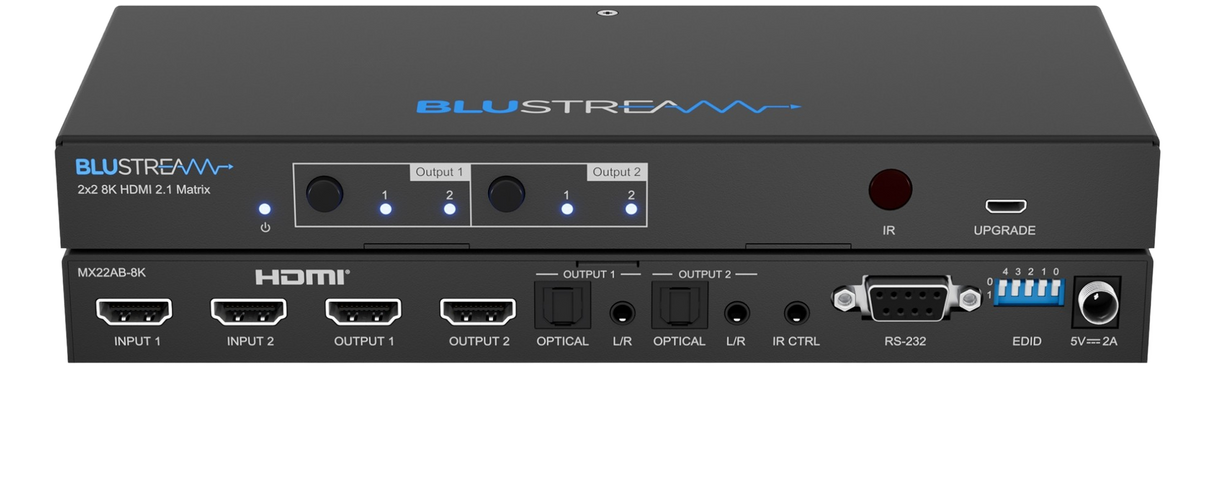

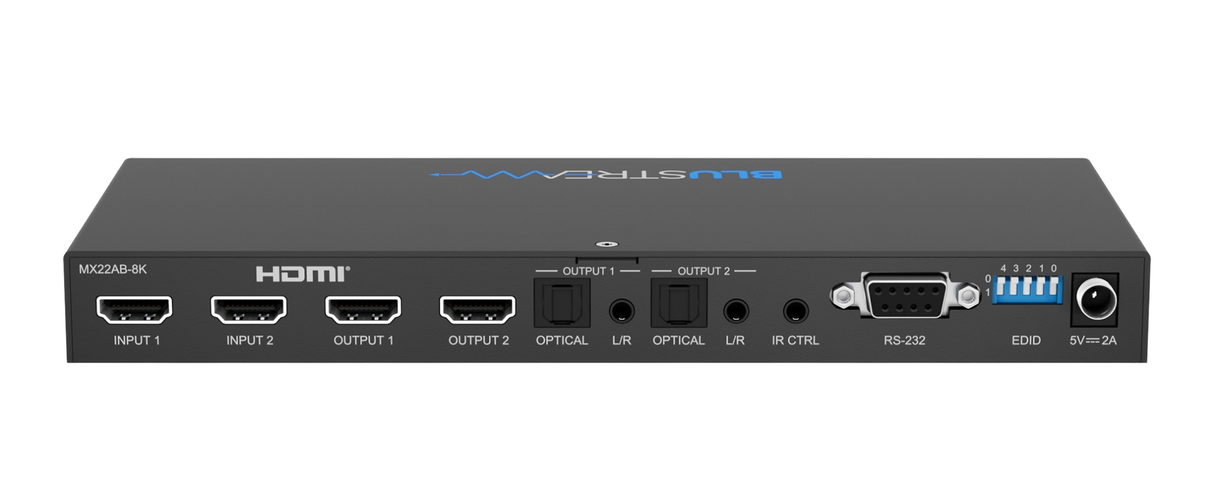

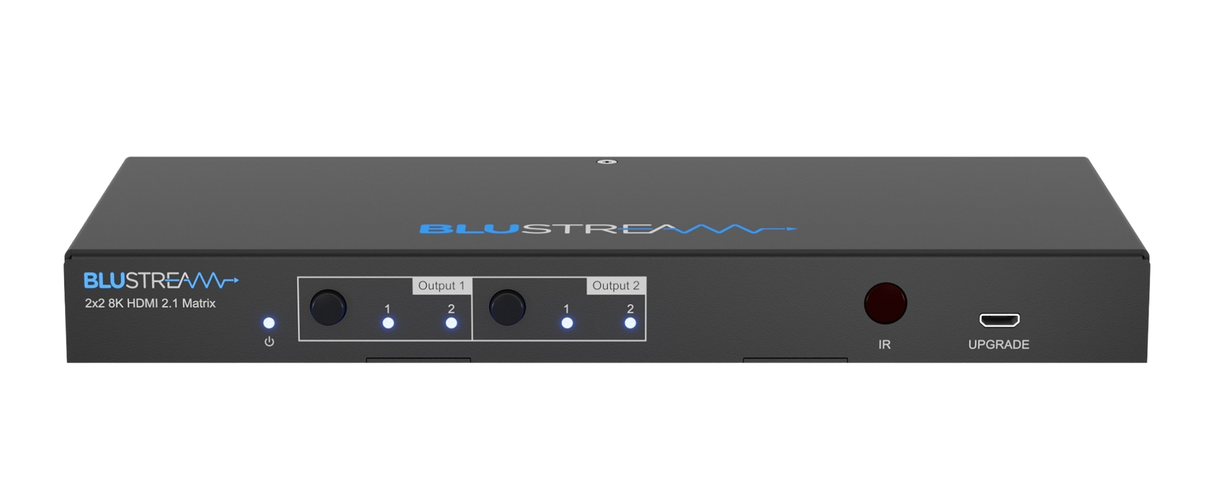

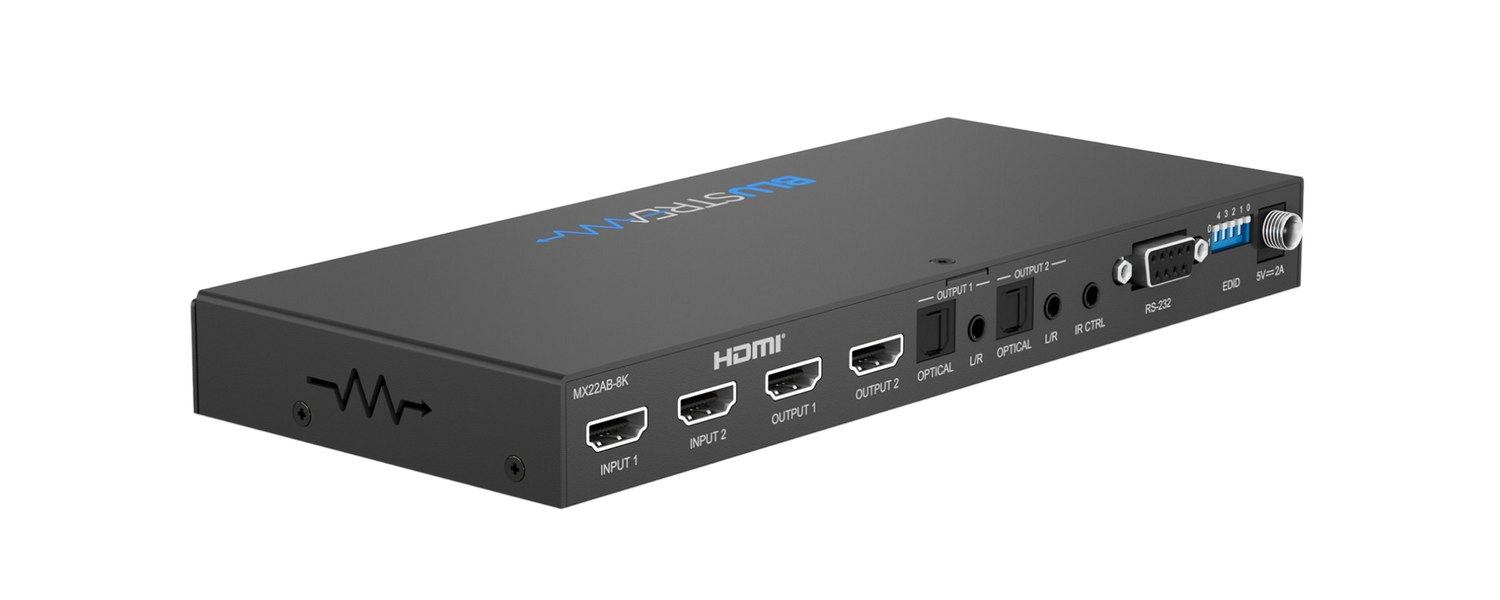

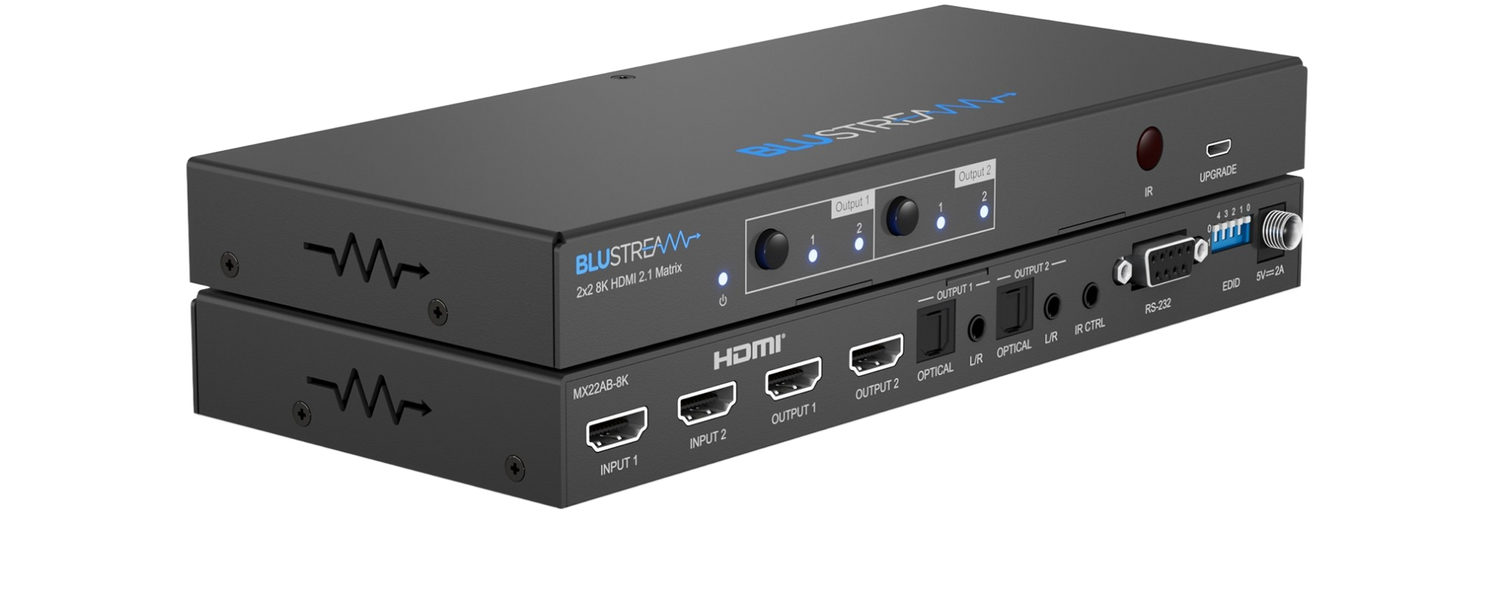

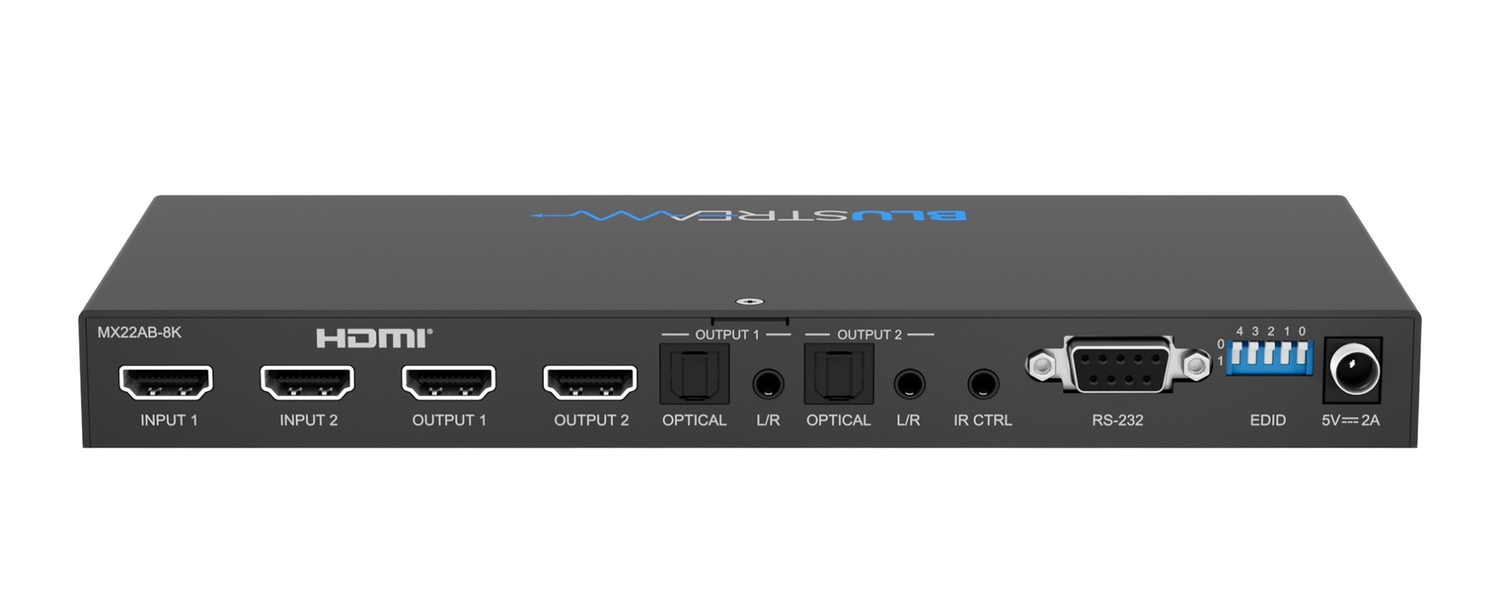

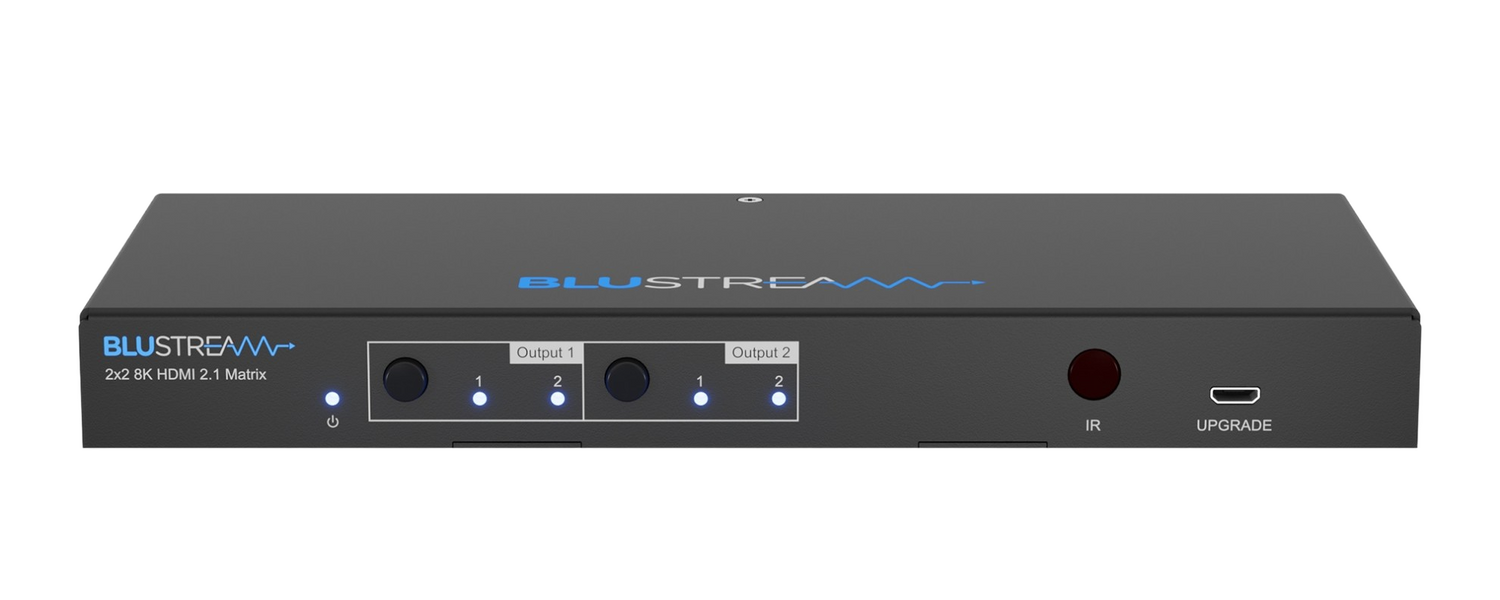

MX22AB-8K 2x2 8K HDMI 2.1 Matrix with Audio Breakout

Login for pricing

MSRP: $587.95

Description

The MX22AB-8K HDMI2.1 matrix integrates source and display devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz and 4K 120Hz signals.

Independent routing of 2 x HDMI input sources to 2 x HDMI2.1 displays, the MX22AB-8K can auto-switch based on either detecting a 5V hot plug, or a new TMDS signal; or be manually controlled using RS-232, IR, or from the units front panel.

Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The MX22AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.

Product Features
  • Features 2 x selectable HDMI2.1 inputs that can be independently routed to 2 x HDMI2.1 outputs
  • Supports HDMI2.1 specification including HDR (40Gbps maximum
  • Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
  • Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • Auto HDMI source switching via 5V and / or TMDS signal sensing
  • Manual HDMI source switching via front panel, IR and RS-232
  • Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
  • 5V / 12V IR Compatible
  • HDCP 2.3 compliant with advanced EDID management

In the Box

1 x MX22AB-8K
1 x REM42 Remote Control
1 x 5V/2A DC Power Supply
1 x IR Receiver (IRR)
1 x Mounting Bracket Set
4 x Rubber Feet
1 x User Manual
