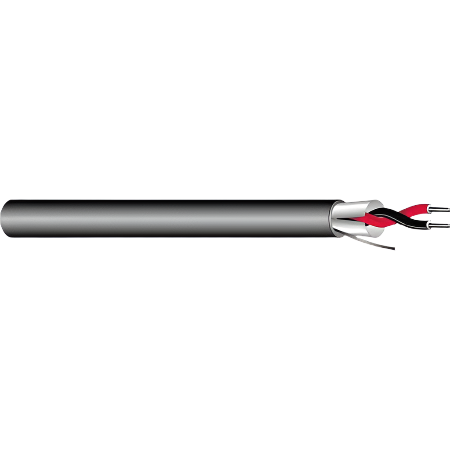

2/22 Stranded Foil Shielded Plenum Cmp

Number of Conductors: 2
AWG Size: 22
Conductor Stranding: 7x32
Conductor Type: Bare Copper
Nominal DCR: 17.5 Ohm/1000ft
Cabling Lay Length: 2.5 in
Twists/Foot: 4.8 twist/ft
Insulation Type: Plenum PVC
Insulation Thickness: 0.008 in
Insulation Color Code: 1. Black 2. Red
Shield Type: Overall 100% Aluminum Foil
Drain Wire Type: Tinned Copper
Drain Wire AWG: 24 AWG
