Blustream  |  SKU: HEX31WP-TX | Item No. 0210-0219

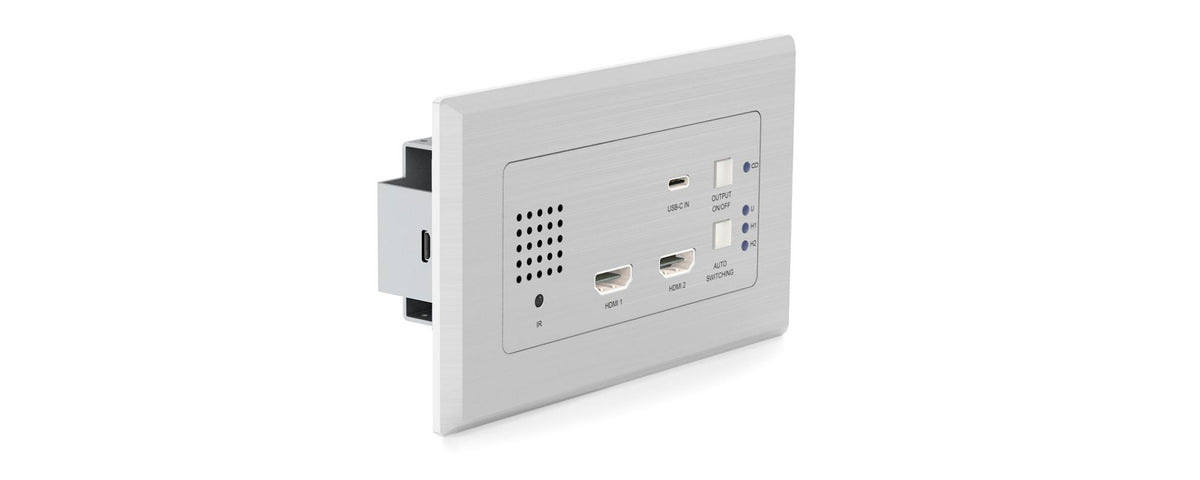

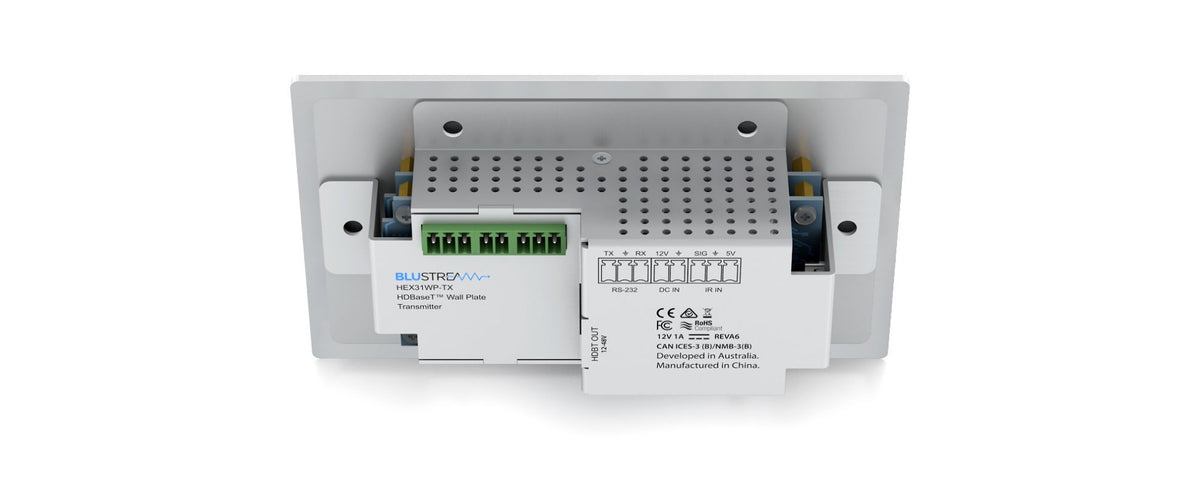

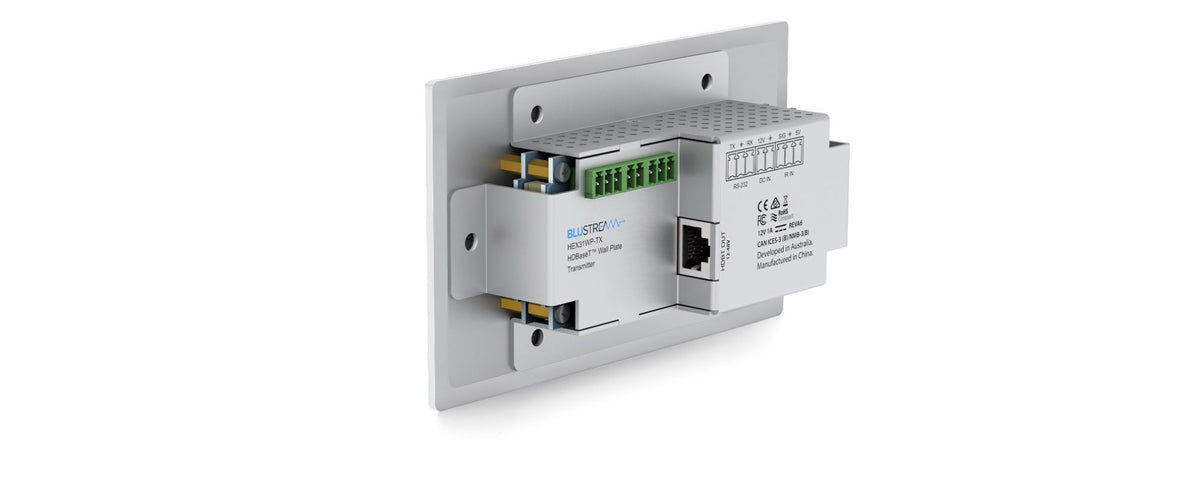

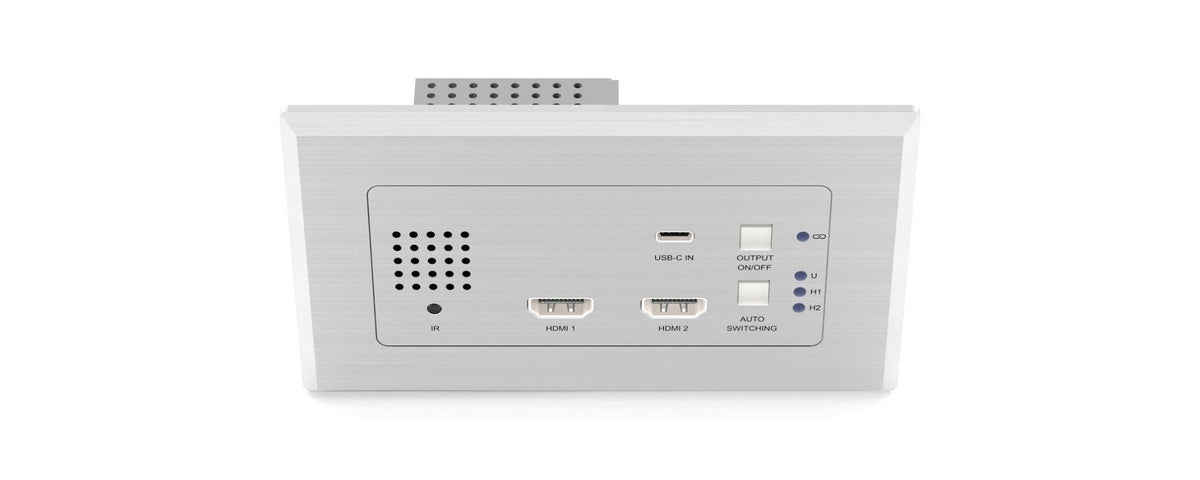

HEX31WP-TX 2 x HDMI & 1 x USB-C Wall Plate HDBaseT™ Transmitter

Login for pricing

MSRP: $1150.00

Description

HEX31WP-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0).

The HEX31WP-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers / Matrix).

The HEX31WP-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.

Product Features

• Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Input selection via front panel, IR or RS-232
• Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products *
• Magnetic faceplate surround allowing both UK & EU back box compatibility
• HDCP 2.2 support

* Technical performance is subject to the features supported on the connected HDBaseT™ device

** Please note: The USB-C input port on this unit does not provide PD charging to devices connected for video distribution.

In the Box

1 x HEX31WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x RS-232 Control Cable
1 x Quick Reference Guide
