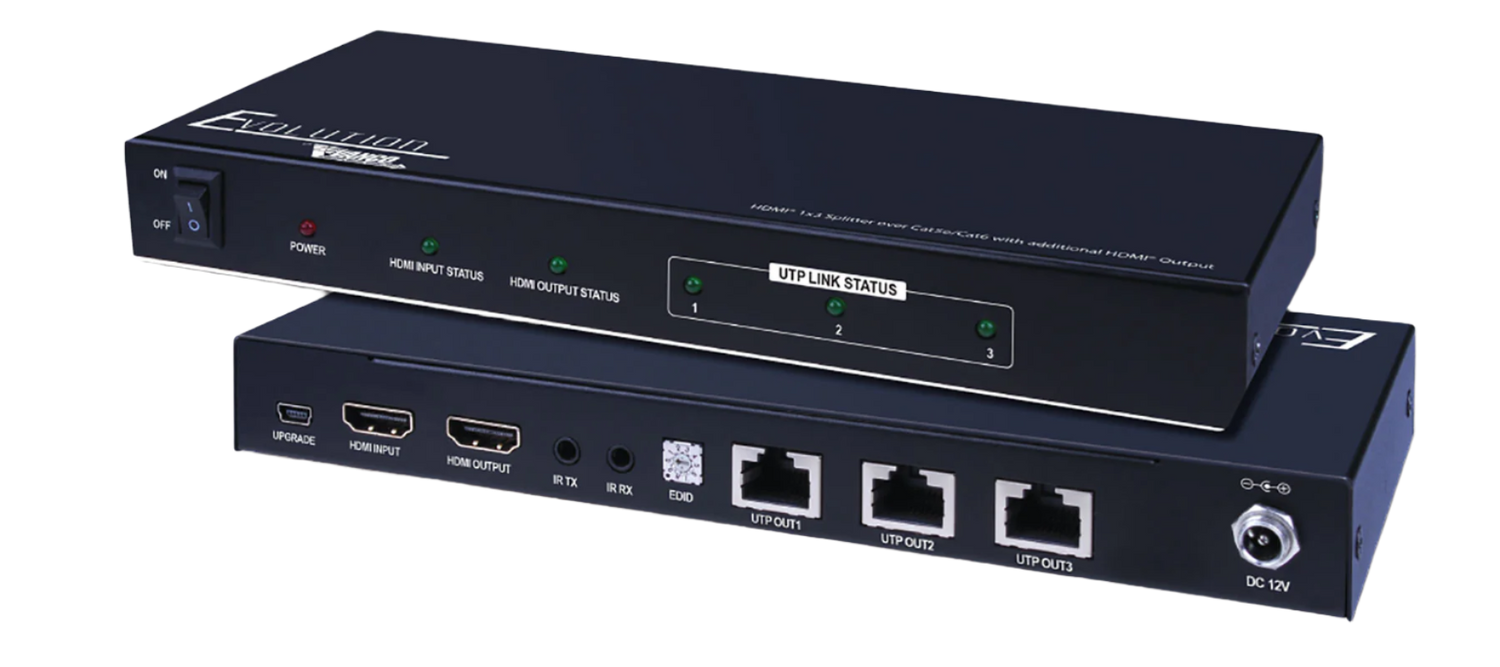

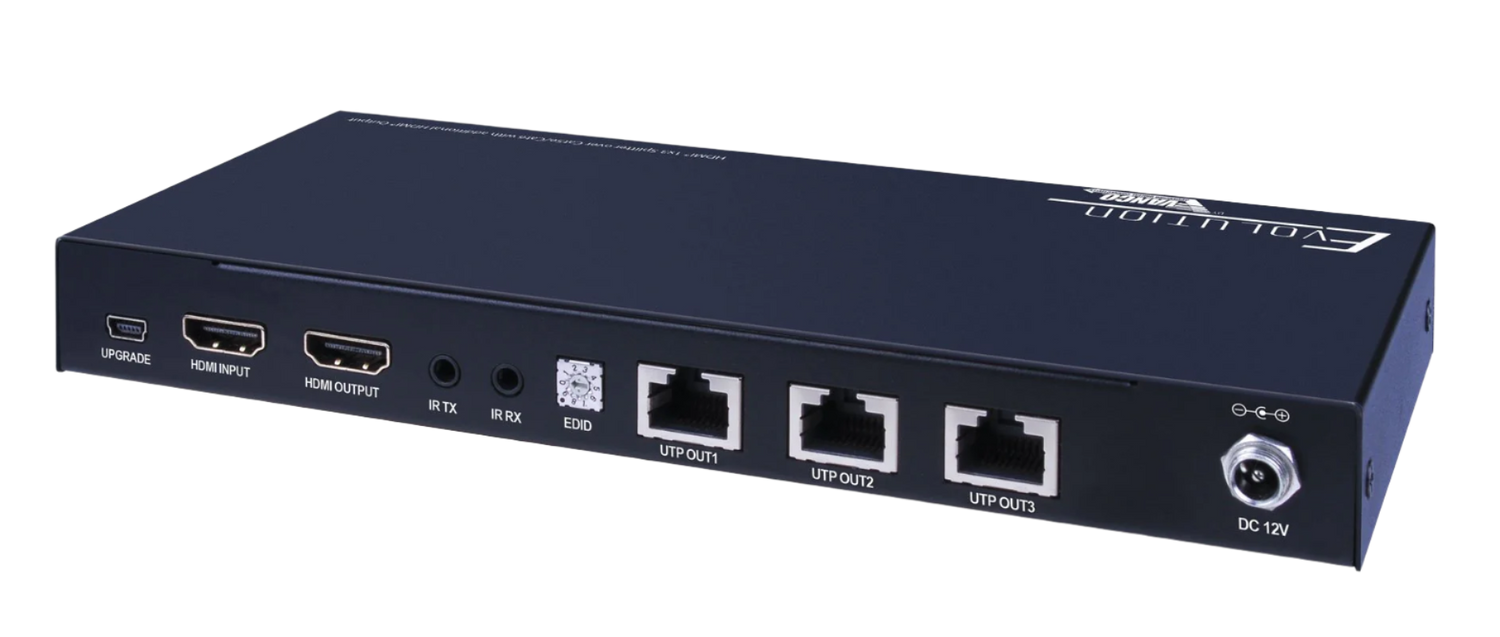

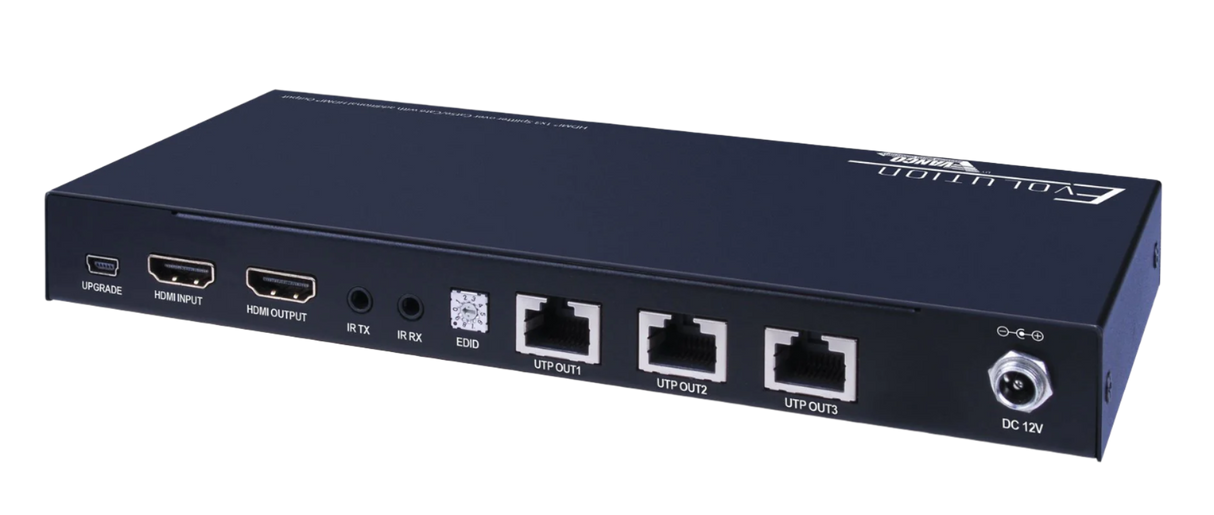

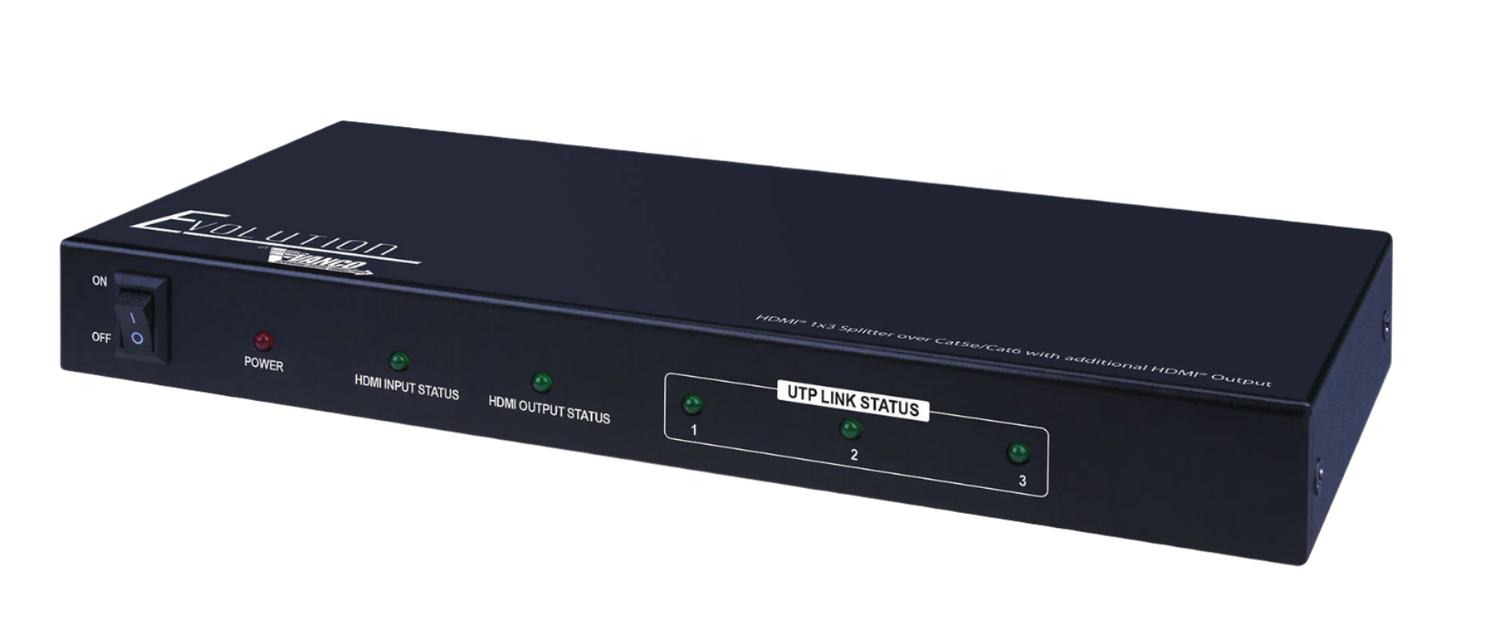

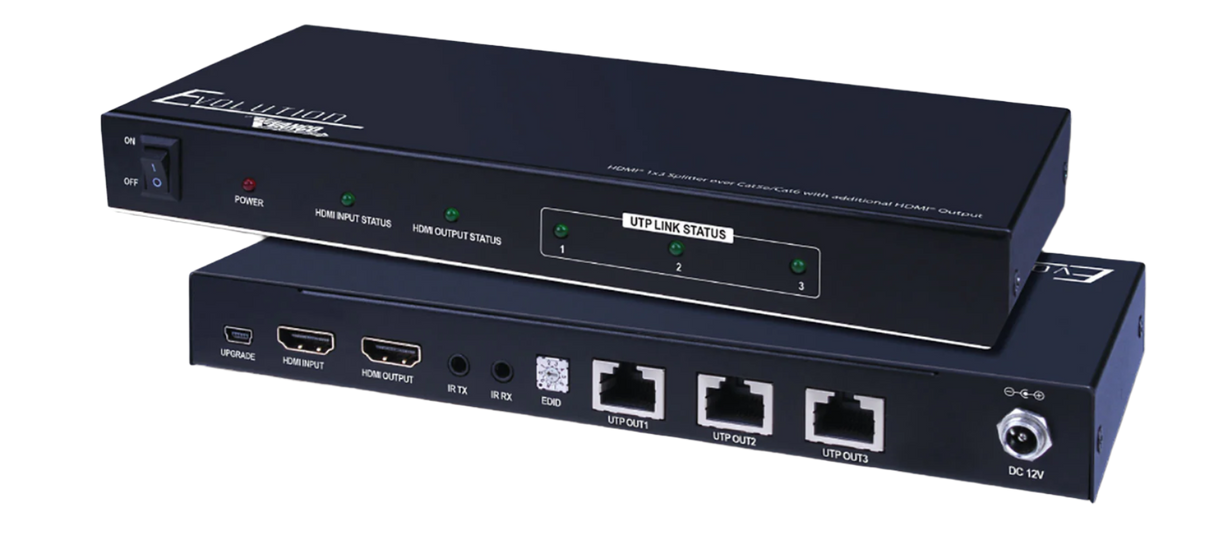

EVSP1013 1x3 Plus 1 HDMI Output Splitter over Single CAT5e/CAT6 Cable PoE 165'

• Allows for 1 HDMI input to be split and sent to 4 different displays
• (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
• Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
• Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
• Supports 20-60kHz wideband bi-direction IR communication
• Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
• Supports multiple audio formats including Dolby True HD- DTS-master- etc.
• Supports all 3D Signal Formats
• Supports manual or dynamic EDID management
• HDCP 2.0 compatible

Download Spec Sheet
