Allen & Heath  |  SKU: AH-AB-168 | Item No. 0197-0003

AH-AB-168 16in x 8out 48kHz Expander

Login for pricing

MSRP: $1799.00

Description

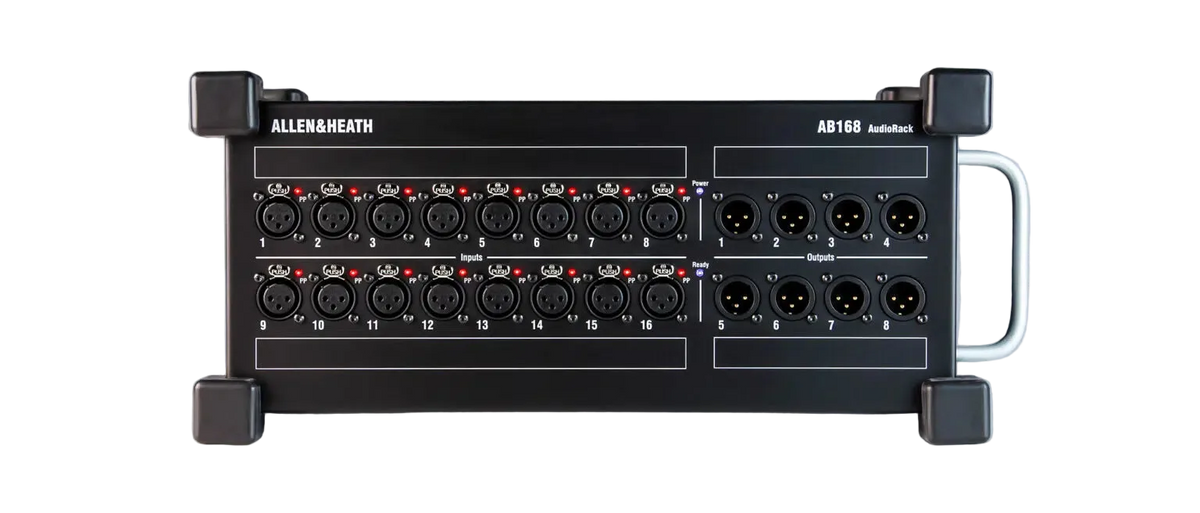

AB168 is a 48kHz portable remote AudioRack for use with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.

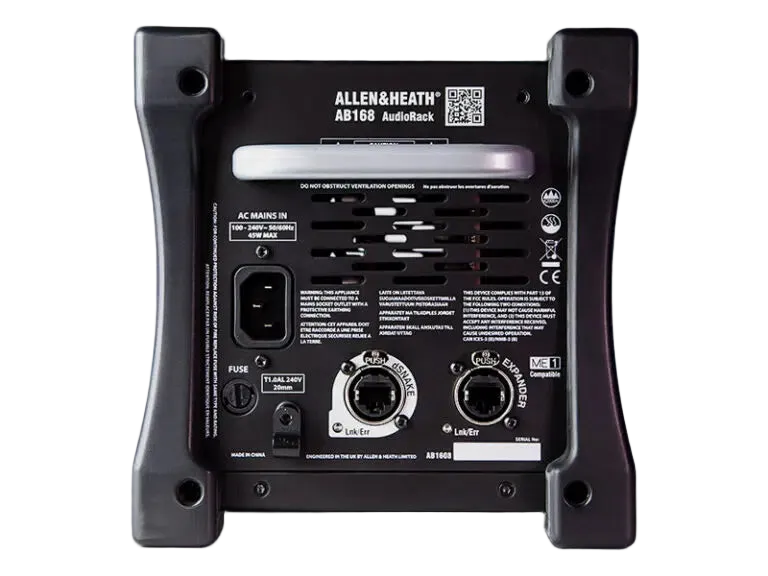

The AB168 can be placed up to 100m away from the mixer for maximum flexibility of positioning. The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.

Product Features
  • 16 Mic Preamps: +60dB of gain, Phantom Power indicators and -20dB pad for line level sources.
  • 8 XLR Line Outs: Balanced, relay protected line outputs on XLR.
  • Expander Port: For daisy-chaining 2 compatible Expanders or connection to ME personal mixers.
  • Plug-and-Play: No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.

In the Box
