Lab Gruppen  |  SKU: LAB-E10:4 | Item No. 0189-0023

E10:4 1000W Amplifier with 4 Flexible Output-Channels

MSRP: $1799.00

Description

Specifically designed for greater sustainability through “greener” commercial installations, E Series incorporates the latest advances in Lab.gruppen quality and durability into a complete line of compact (1U) and highly cost-effective.



Product Features

  • 1000 W amplifier carrying 4 flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost
  • Energy efficient with Energy Star* certification for supreme green credentials and exceptionally low lifetime running costs
  • Flexible IntelliDrive permits delivering the 4 x 125 W at constant voltage 70 V or low impedance (2, 4, 8 and 16 Ohms) on any channel
  • Asymmetric channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization
  • High efficiency amplifier with low power consumption and minimized heat generation lowers demands on the installations' mains distribution and cooling systems
  • IDEEA outputs stage based on proprietary, state-of-the-art Class-D amplifier technology for superior performance
  • Comprehensive fail safe circuit protection ensures continued operation even under reduced operating conditions
  • Auto-standby and auto-power-on reduces power consumption to below 1 W in non-operating cycles
  • Rail Sense Limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads
  • Built in 50 Hz high pass filter selectable per channel available on rear panel switch

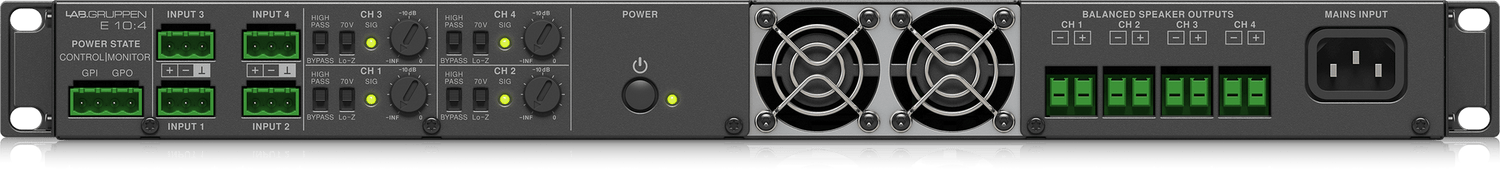

  • Per channel attenuation knob and signal LED on rear panel for simple commissioning
  • Efficient cooling with temperature-controlled fans with front to back airflow

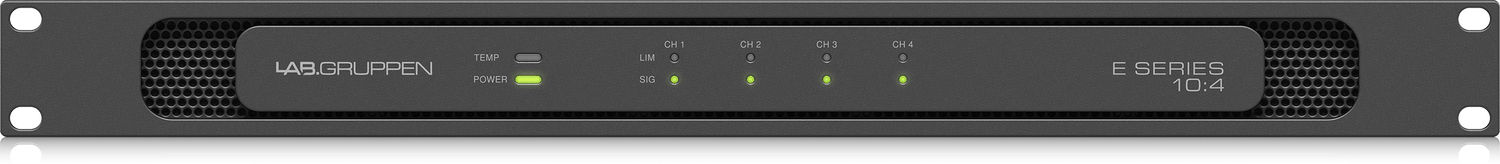

  • Aluminum front panel with power and temperature LEDs and per-channel signal and limit LEDs
  • GPIO connector with power control and indication for further system integration
  • Balanced high-quality analog inputs and amplifier outputs on detachable screw terminals

In the Box

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Channels
    4 Channel
  • Watts/Channel
    1000W
  • Features
    70 Volt
  • Rack Mountable
    Yes
  • Rack Size
    1
  • Height
    1.7 in
  • Length
    16.4 in
  • Width
    19 in
  • Weight
    14.7 lb
