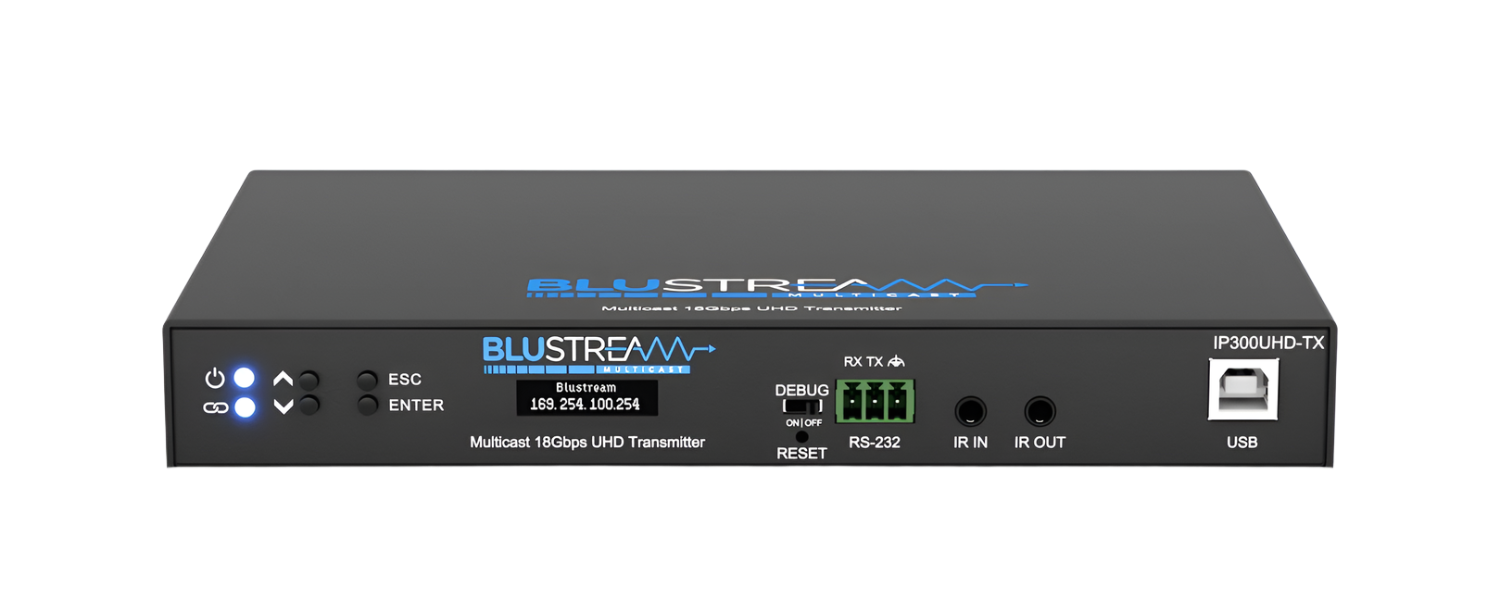

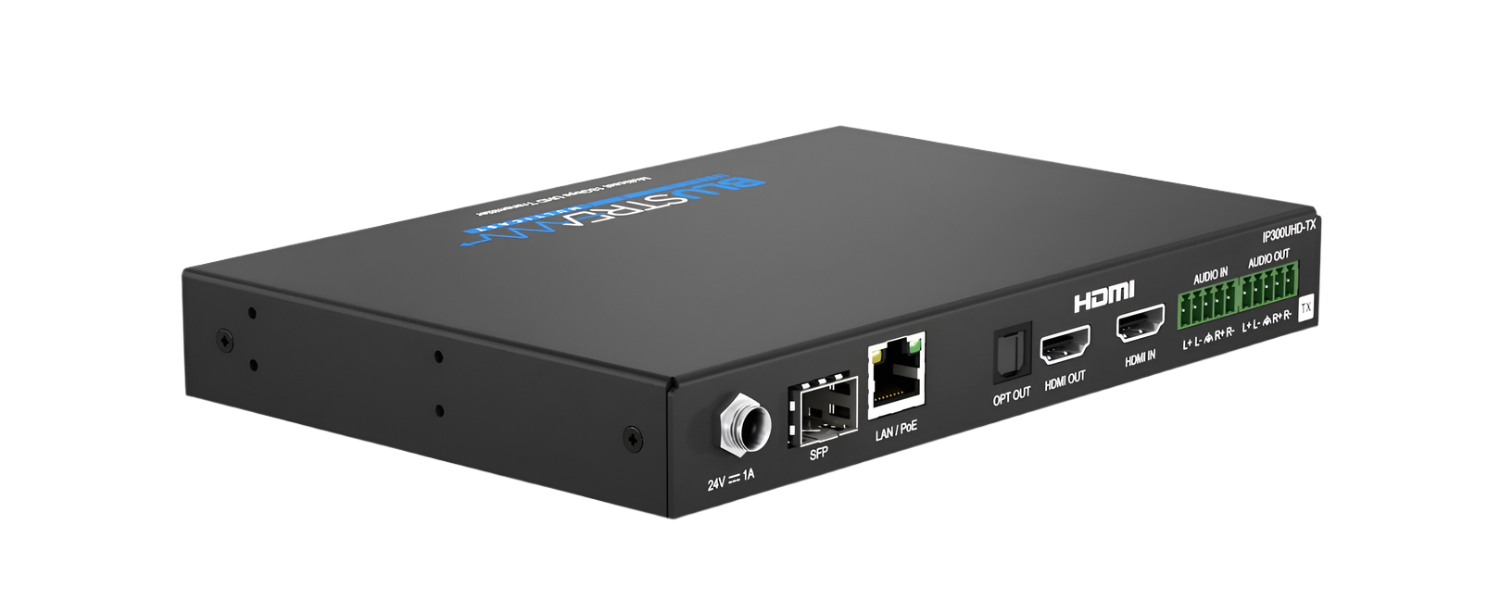

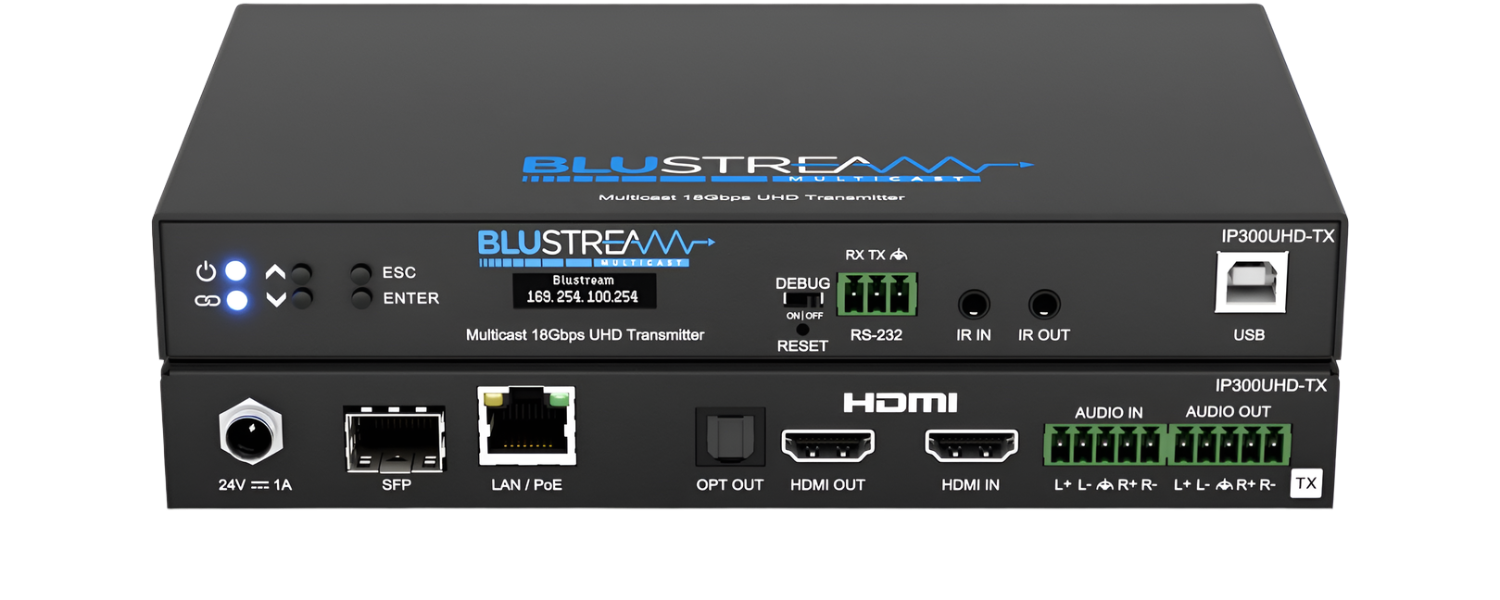

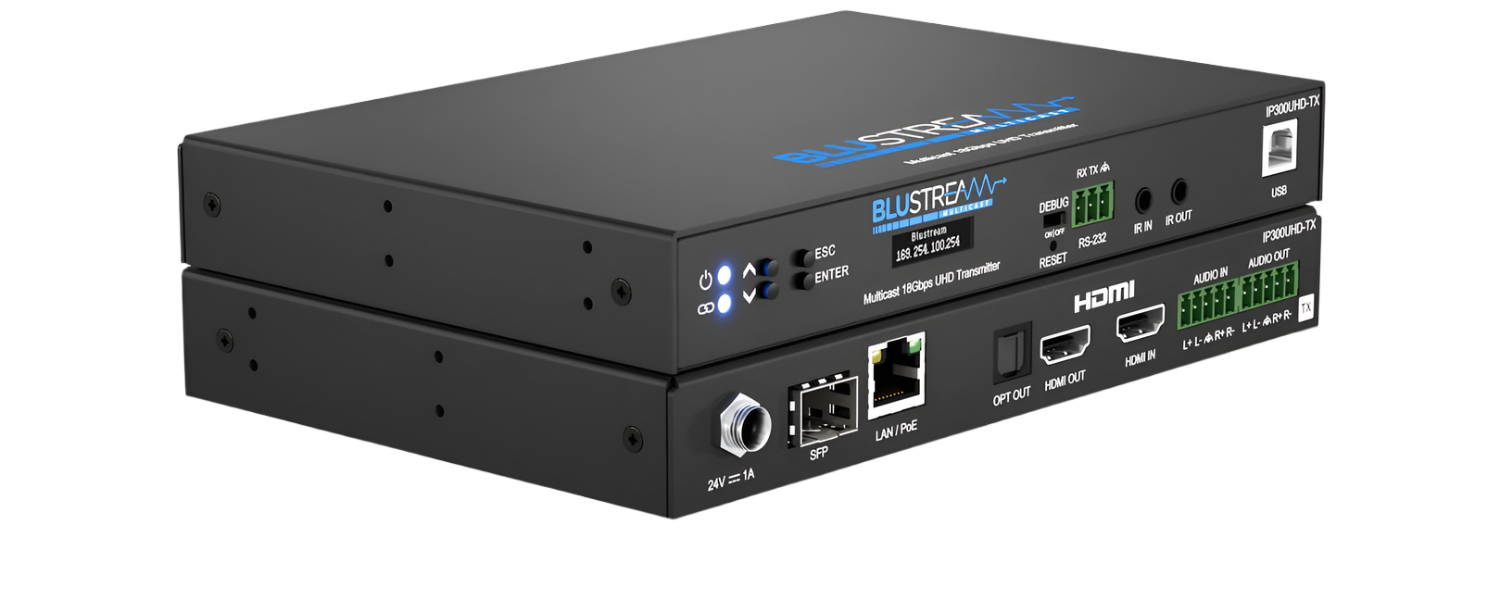

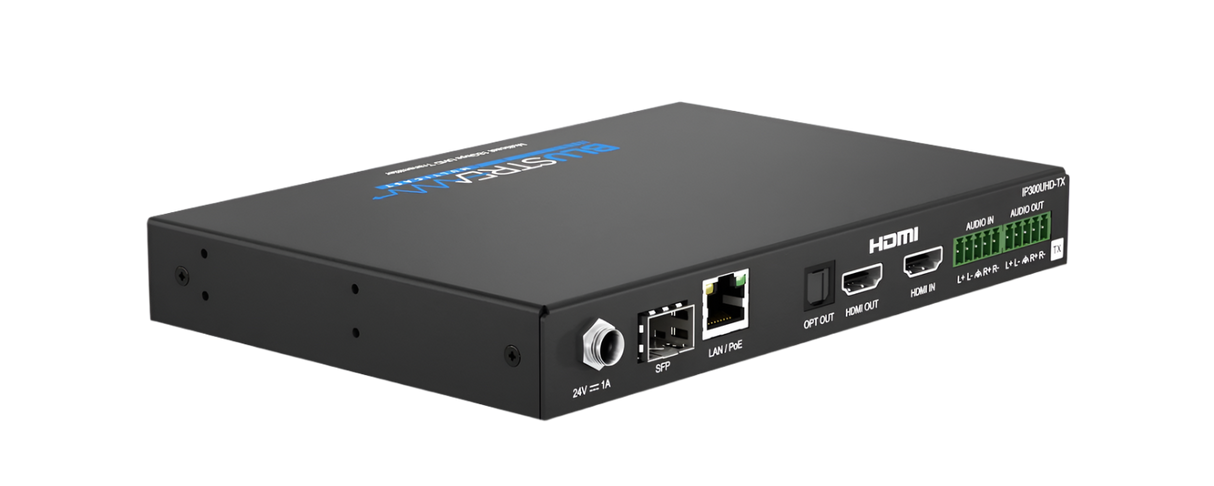

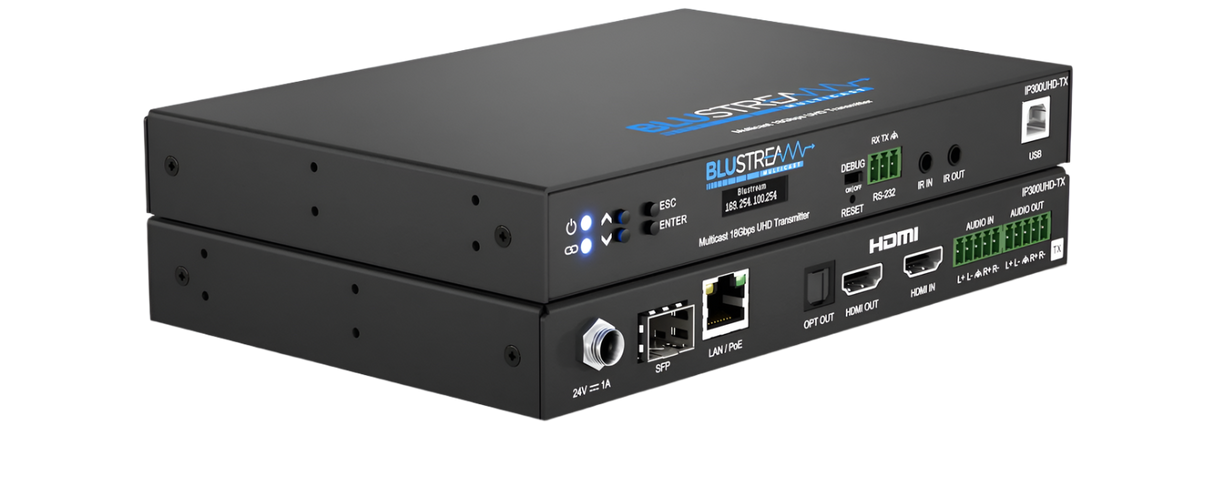

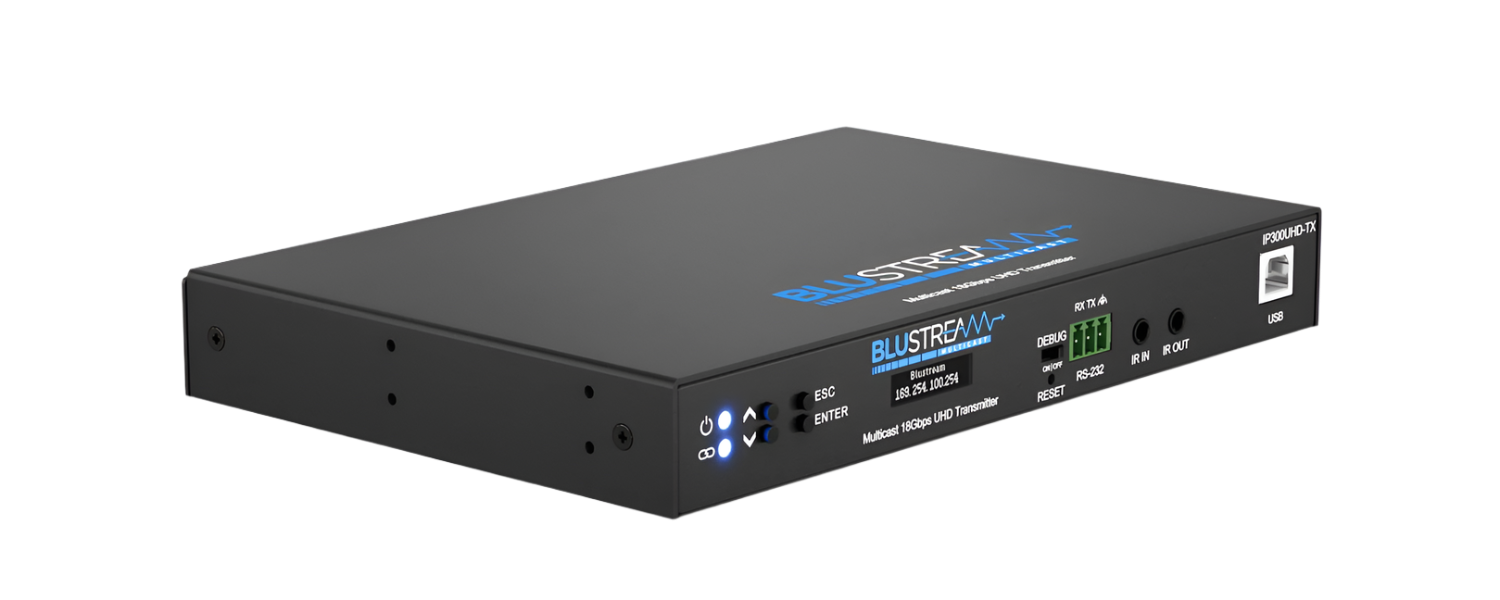

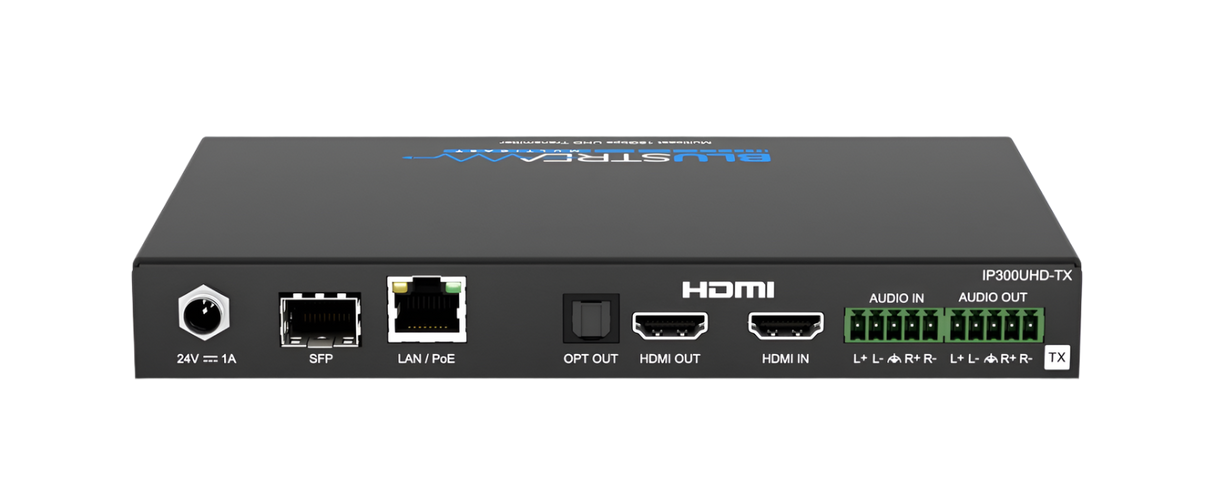

IP300UHD-TX 4K 60Hz UHD HDMI Video over IP Transmitter with PoE over 1Gb Network

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• SFP port for signal distribution over fiber
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR including Dolby Vision LLM
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Audio breakout to optical (S/PDIF) and analog L/R audio outputs, supporting both balanced and unbalanced audio signals
• Balanced/unbalanced analog audio input for replacing the HDMI embedded audio with a different audio signal
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products

IP300/350 Multicast platform features 4 operational modes:

• Matrix distribution (requires 1Gb network switch)
• Video wall (requires 1Gb network switch)
• One-to-one HDMI extender (no network switch required)
• One-to-many HDMI extender (no network switch required)
