Evolution | SKU: EVEXKVM1 | Item No. 0002-1183

EVEXKVM1 Evolution HDMI® Extender with KVM and PoE

Description

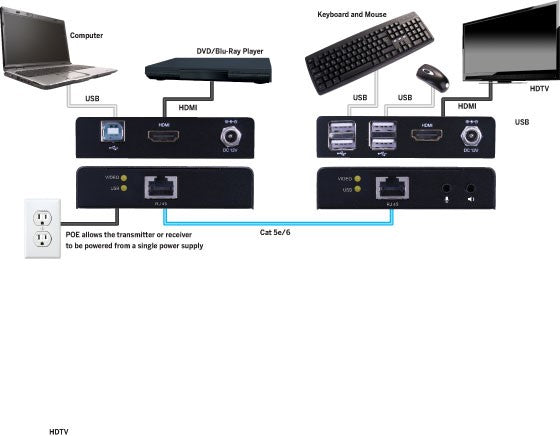

Transmits audio and video via HDMI as well as complete KVM (Keyboard- Video- Mouse) functionality via USB 2.0 ports over a single Cat5e/6 up to 164ft/50m with POE.
Power Over Ethernet (PoE)- integrates power into the Cat5e/6 cable- requiring no power supply for either the Transmitting unit or Receiving unit (opposite of unit that is plugged in to power)
Auto EDID management automatically adjusts to overcome compatibility issues
Auto EQ distance for perfect transmission and reception of HDMI signals
Supports up to 1920×1080 @ 60Hz resolutions
Transmission Range: Extends HDMI signals up to 164ft/50m over a single Cat5e or Cat6 cable
Extends USB 2.0 high speed at 480Mbps to 164ft/50m

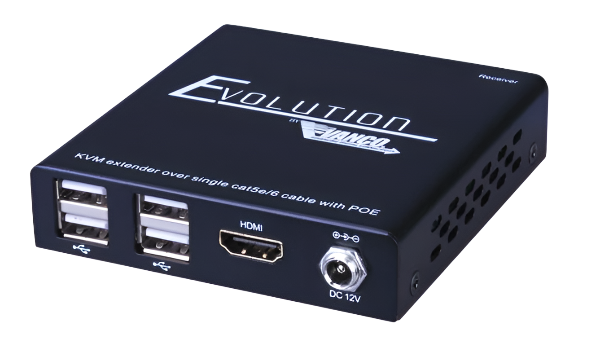

RX unit provides 4 USB 2.0 high speed ports at display end
USB ports allow for charging of connected USB devices (please use properly certified and licensed cabling with utilizing the charging feature)
RX integrated with Hi-Fi USB audio card- supports analog passive earphone and microphone access
VESA DDC and hot swap technology (HPD)
Compatible HDMI 1.3/DVI 1.0
HDCP 1.4
