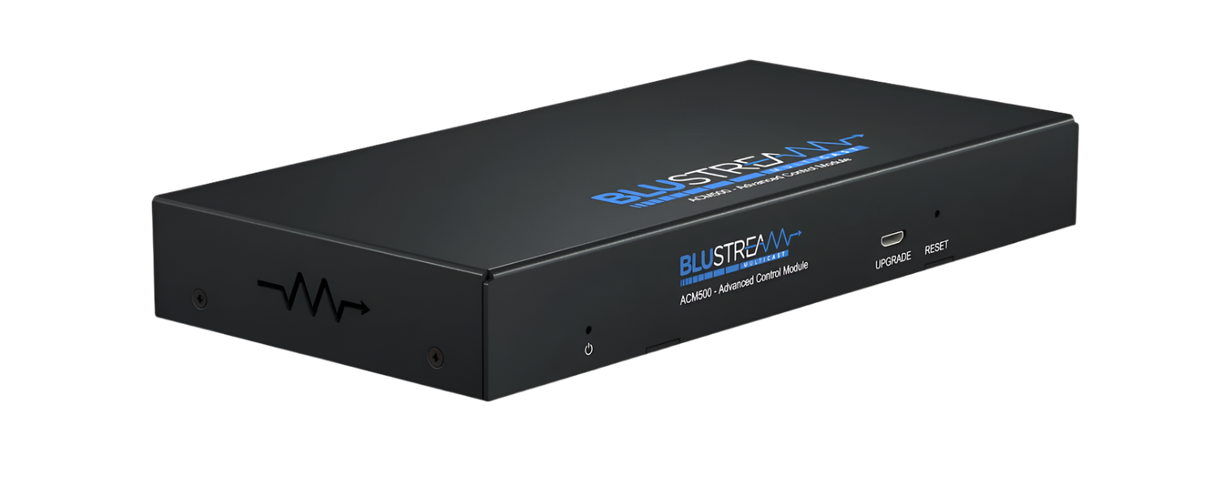

ACM500 Advanced Control Module for IP500UHD-TZ

• Web interface module for configuration and control of Blustream IP500UHD and IP510UHD SDVoE 10GbE Multicast systems
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• Auto system configuration

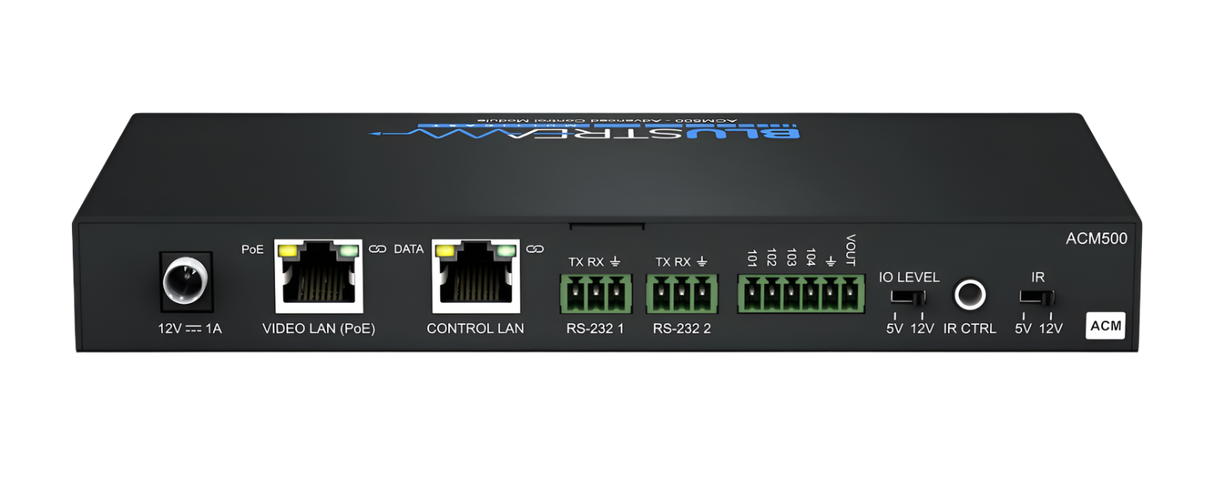

• 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:     - Better system performance as network traffic is separated     - No advanced network setup required     - Independent IP address per LAN connection  - Allows simplified TCP/IP control of Multicast system
• Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices
• 5V/12V IR integration for control of Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should Ethernet switch not support PoE
• Support for iOS and Android App control
• 3rd Party drivers available for all major control brands
