Evolution  |  SKU: A-EVEXHDB3 | Item No. 0002-2105

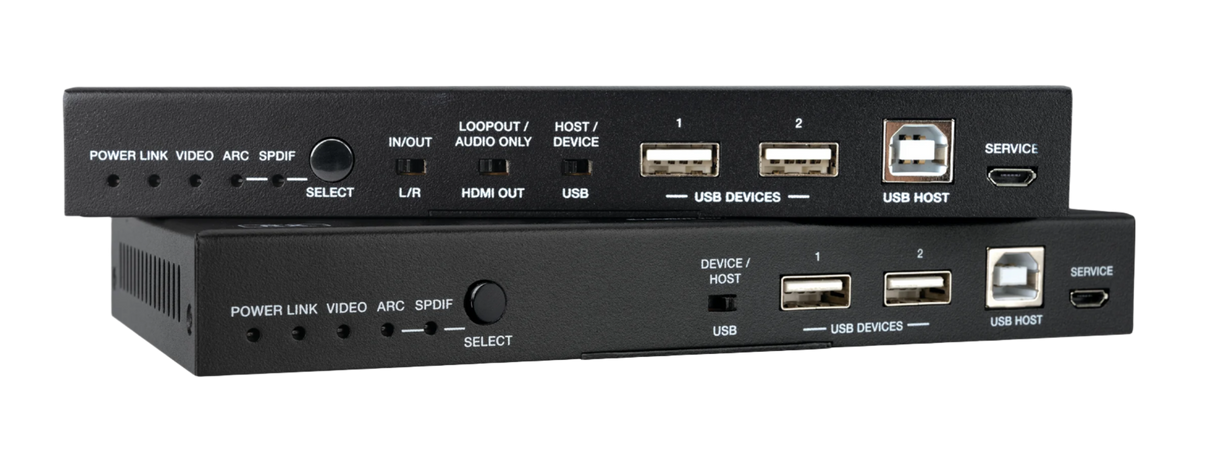

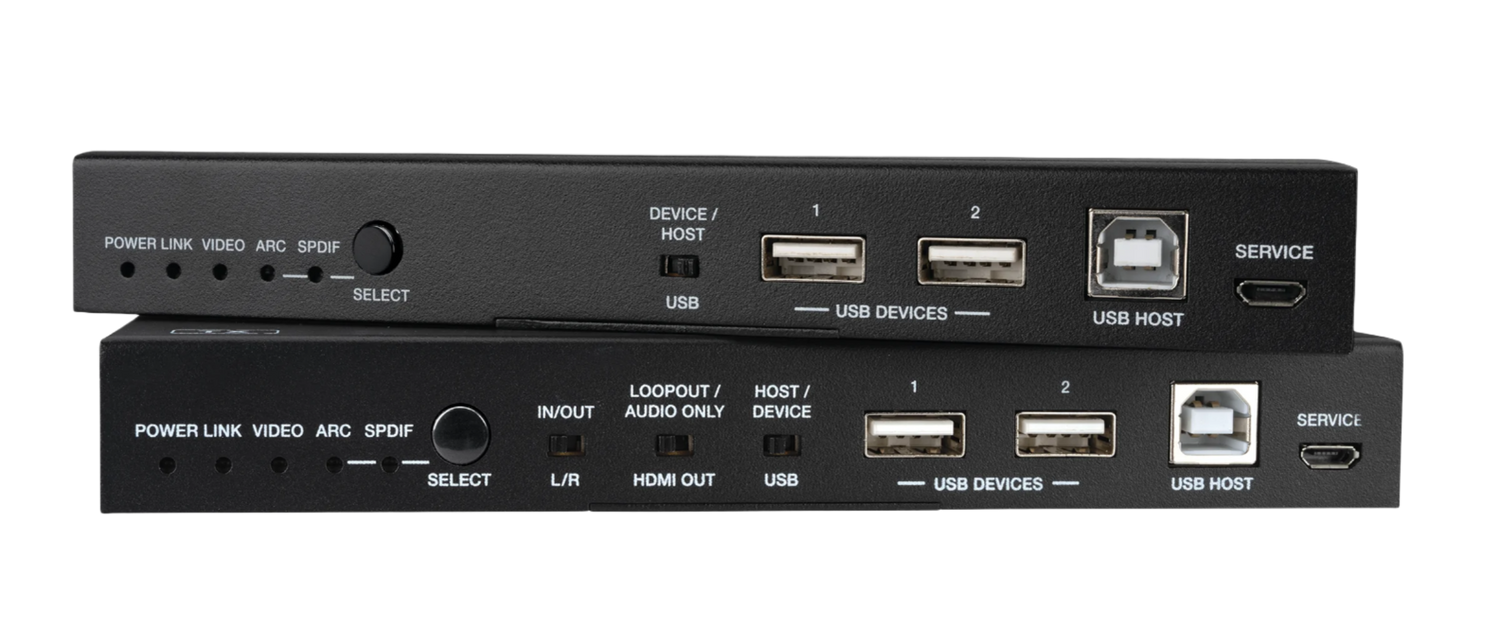

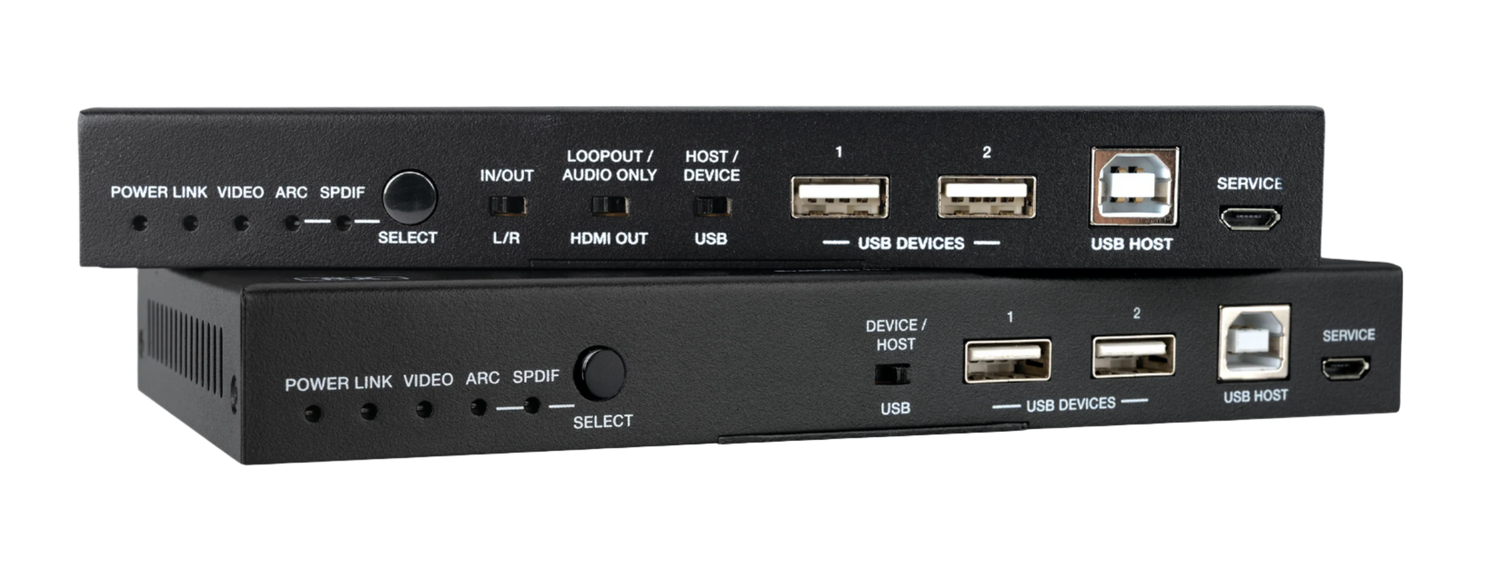

EVEXHDB3 Evolution HDBaseT™ 3.0 Extender Uncompressed

Login for pricing

MSRP: $1793.99
Type

Description

The Evolution by Vanco EVEXHDB3 HDBaseT 3.0 extender offers multiple options for pass-through control, and audio including eARC and ARC, along with PoH while being able to extend uncompressed 4K with HDR up to 164ft/50m over a single Cat6 or up to 328ft/100m using Cat6a/7.



Product Features
  • Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable HDMI 2.0b, HDCP 2.3/1.4 and HDBaseT 3.0 compliant
  • Extends uncompressed 4K@60Hz, 4:4:4, 18Gbps and HDR up to 328ft/100m
  • Transmission distance up to 328ft/100m via a single CAT6a/7 cable, or 164ft/50m using a single Cat6 cable
  • HDR compatible: passes HDR10, HDR10+, Dolby Vision and HLG formats
  • Supports Enhanced Audio Return Channel (eARC) and Audio Return Channel (ARC)
  • Supports multiple audio formats such as LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and more
  • Able to embed audio from a separate audio source, or de-embed to break out or extract audio
  • Bi-directional IR, RS-232 and 1Gb Ethernet signal pass through
  • Extends and supports USB 2.0 functions such as mouse, keyboard, and touch screen control, as well as data, microphone and webcams
  • HDMI loop-out for local monitoring, use with other HDMI distribution products, or for de-embedding audio from the source or display end
  • Features Power over HDBaseT technology (PoH) which transmits power over Cat6/6a/7, allowing for either Transmitter or Receiver to be powered without the use of a power supply

In the Box
  • (1) EVEXHDB3 (TX and RX)
  • (1) IR Emitter
  • (1) IR Receiver
  • (4) Mounting Ears
  • (8) Mounting Screws
  • (2) 3-pin Phoenix Connector
  • (1) 24V/1A Locking Power Adapter
  • (1) Product Manual
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Weight
    0 lb
  • Height
    0.9 in
  • Width
    6.7 in
  • Weight
    0 lb
  • Depth
    4 in
