TechLogix  |  SKU: SM9-LC | Item No. 0184-0069

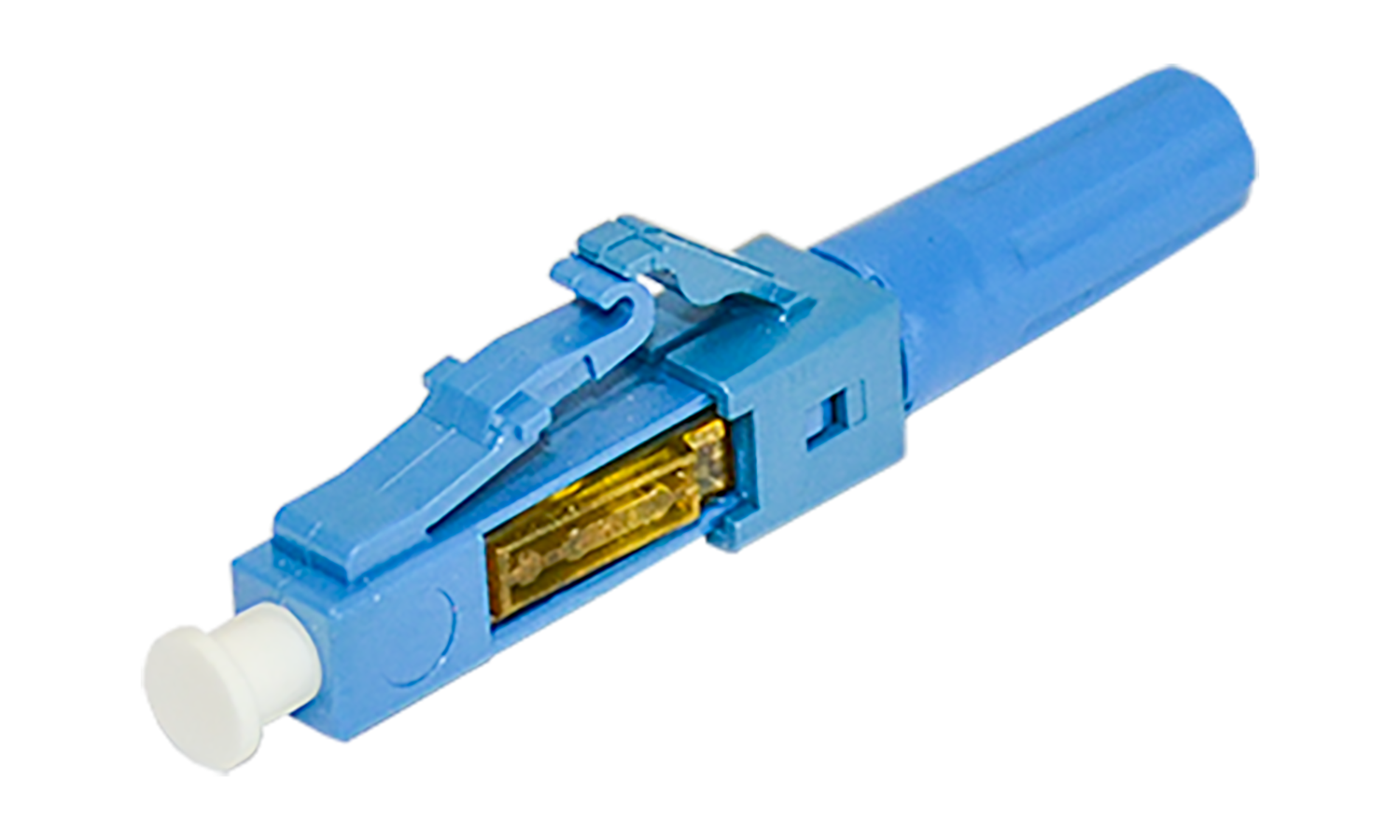

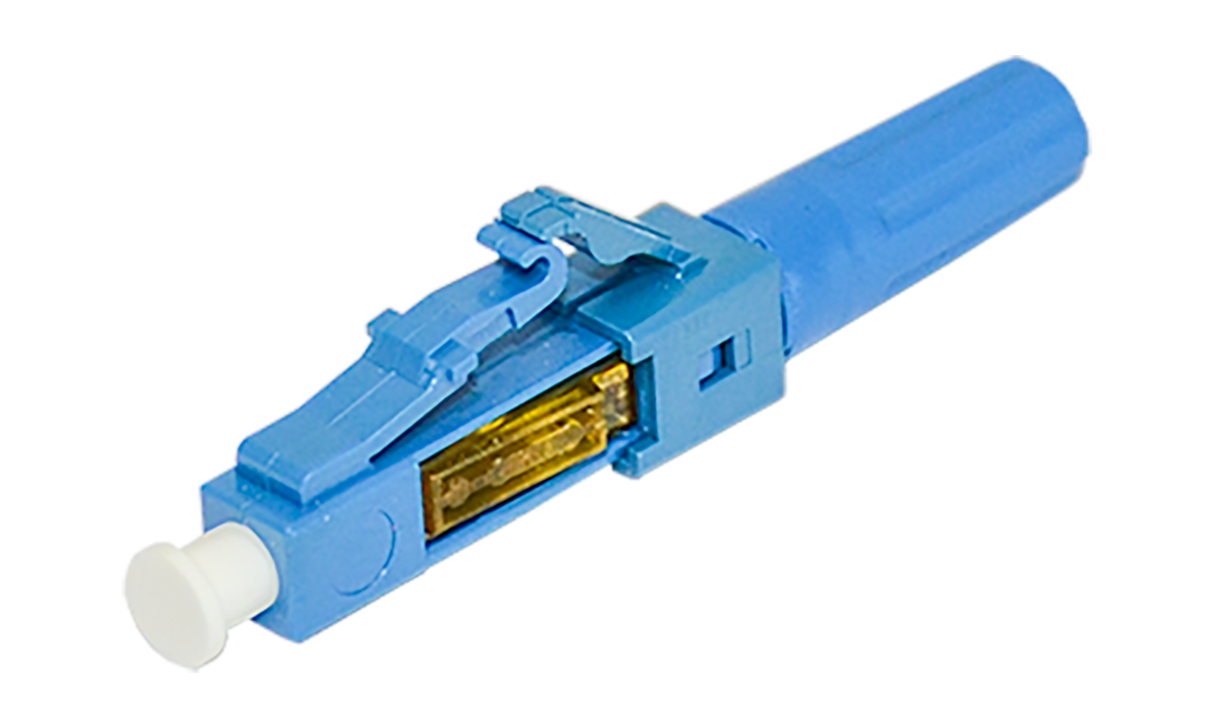

SM9-LC Single Mode 900um LC Click-on Connector

Login for pricing

MSRP: $21.00

Description

ECO Series™ connectors are compatible with both single mode (OS1 & OS2) and multimode (OM2, OM3 & OM4) fiber and are available in standard (UPC) and angled (APC) pre-polished formats. No epoxying, crimping, polishing or proprietary tools are required for termination.

Unlike other connectors which are marketed as “one-size fits all”, ECO Series™ connectors are specific to 250μm, 900μm and 2.0mm cables to ensure perfect alignment, reducing refraction and signal loss. And regardless of cable, a large built-in verification window, self-centering alignment groove and easy-to-press button for one-click termination ensures installation times around two minutes.



Product Features
  • LC type connectors
  • Pre-polished for UPC (standard) & APC (angled) connections
  • Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable
  • Compatible with 250μm, 900μm & 2.0mm cable, including distribution and zip-cord formats
  • No proprietary tools required
  • No epoxy, crimping or polishing required
  • Built-in verification window showing proper termination
  • Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
  • Built-in button for one click termination & locking jig release
  • Average termination time around two minutes
  • Re-usable (five or less termination cycles recommended)

In the Box
