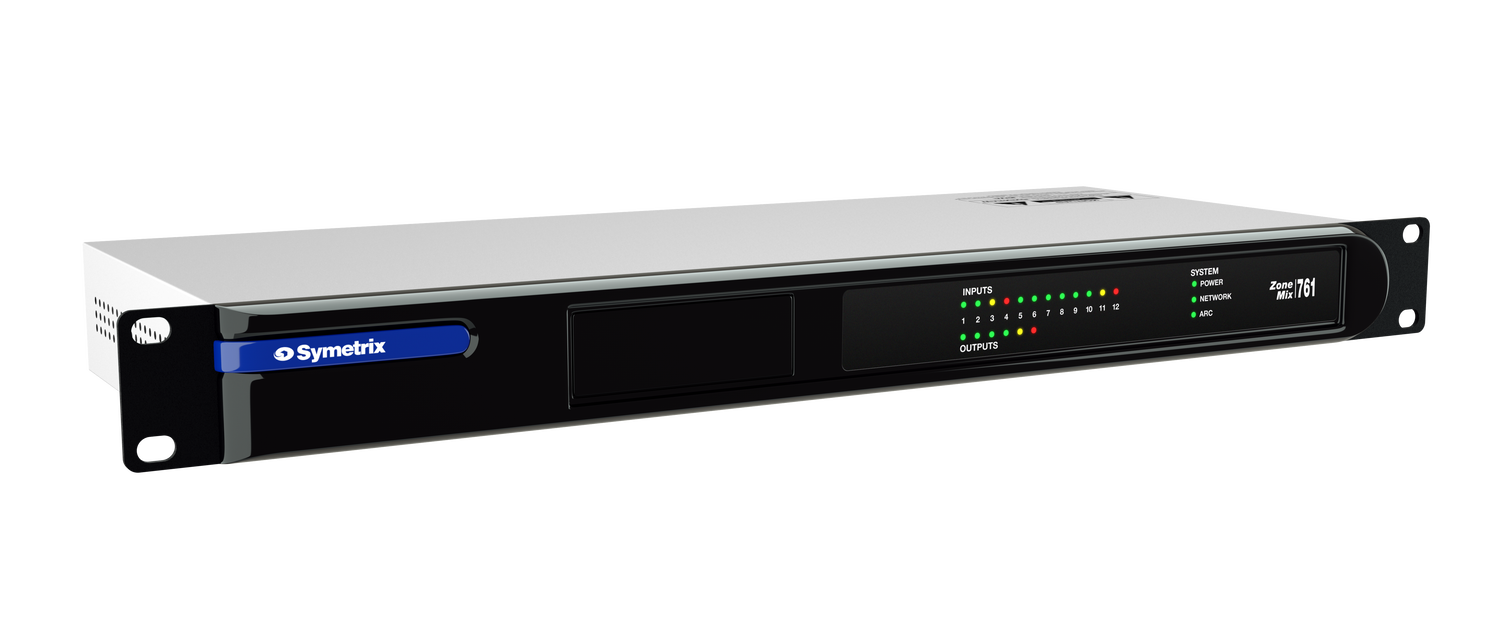

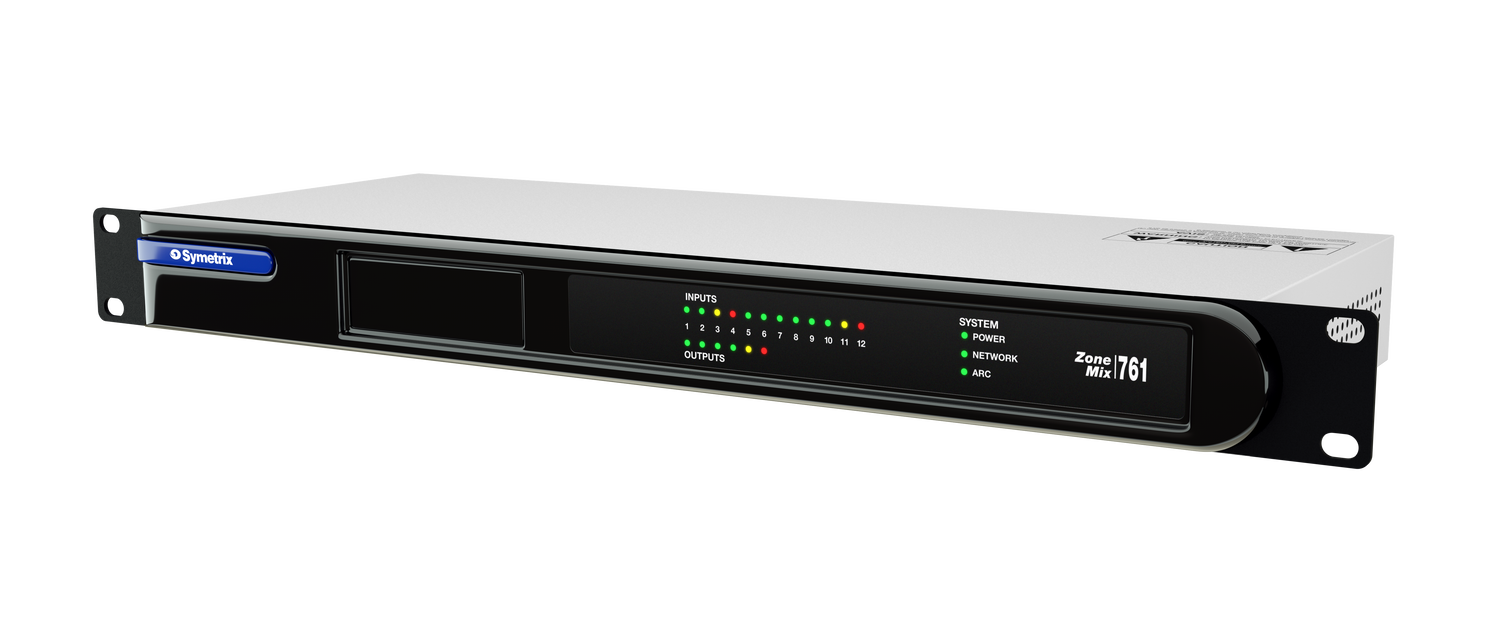

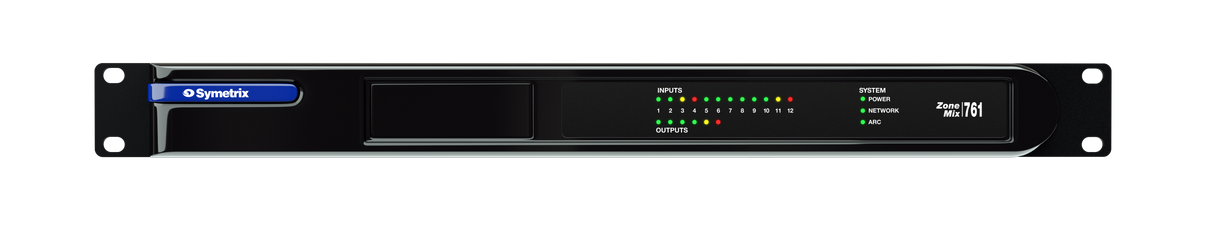

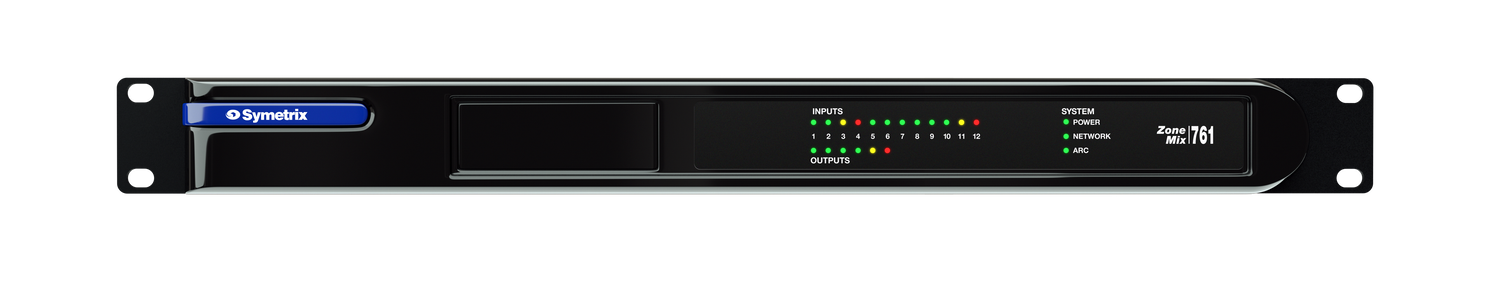

Zone Mix 761 Paging and Music Management 6 Zone DSP, App-based Software

• Efficient setup using a straightforward Windows-interface connected over Ethernet.
• Optimal feature set with microphone preamplification, compression, and AGC, paging, feedback elimination, filters and equalization.
• Support for Symetrix ARC wall panel remotes and ARC-WEB for simple, intuitive end-user operation.
• 4 switchable mic or line inputs for paging from up to three locations plus emergency page, and 8 audio media inputs.
• 6 outputs route audio media inputs plus paging to as many as 6 unique locations.

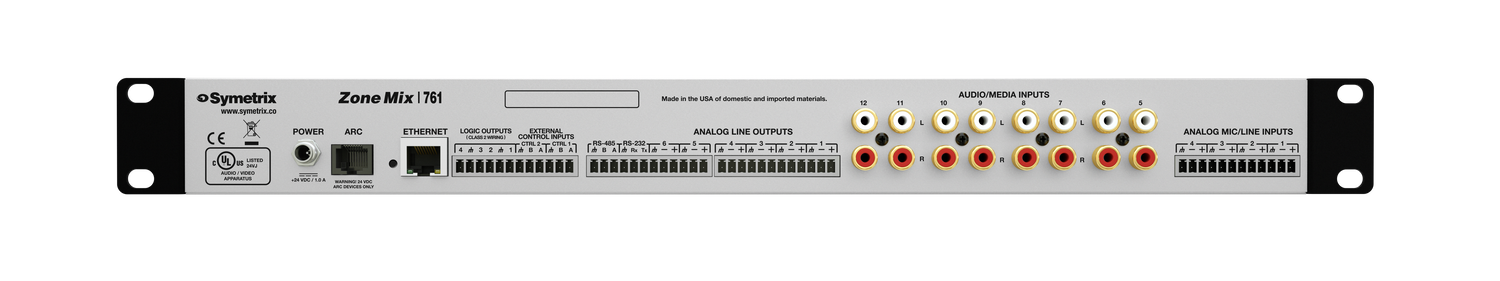

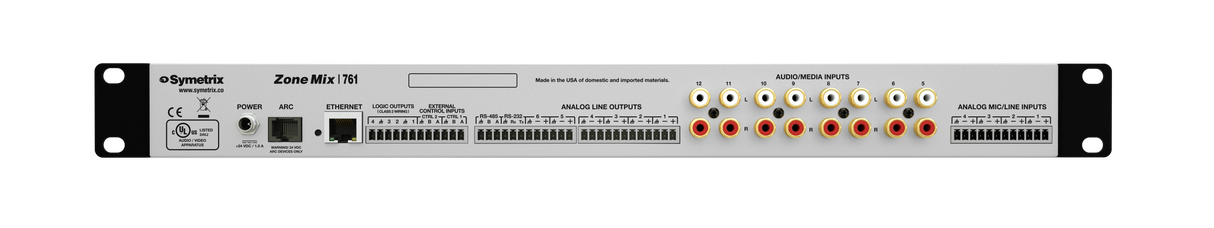

Inputs

• Number of Inputs: Twelve (12) total; Four (4) switchable balanced mic or line, Eight (8) mono-summed stereo -10 dBV line level.
• Connectors: 3.81 mm terminal blocks (mic/ine), RCA (Audio Media source).
• Nominal Input Level: +4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom.
• Mic Pre-amp Gain: +40 dB.
• Maximum Input Level: +23 dBu mic/line, +8 dBV RCA.
• Input Impedance: > 18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged (Euroblock); > 20 kΩ unbalanced (RCA). CMRR: > 50 dB @ 1 kHz, unity gain.
• Mic Pre-amp EIN: < -125 dBu, 22 Hz - 22 kHz, 100 Ω source impedance.
• Phantom Power : +20 VDC, 20 mA maximum per input.

Outputs

• Number of Outputs: Six (6) balanced line level.Connectors: 3.81 mm terminal blocks.
• Nominal Output Level: +4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.
• Maximum Output Level: +24 dBu.
• Output Impedance: 200 Ω balanced, 100 Ω unbalanced.

System

• Sample Rate: 48 kHz.
• Frequency Response: 20 Hz - 20 kHz, +/- 0.5 dB.
• Dynamic Range: > 110 dB (A-Weighted), input to output.
• THD+Noise: < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.
• Interchannel Crosstalk: < -90 dB @ 1 kHz, typical.Latency: < 1.6 ms, input to output with all DSP inactive

Mechanical Data

• Space Requires: 1U (WDH: 48.02 cm x 22.15 cm x 4.37 cm / 18.91 in x 8.72 in x 1.72 in), depth is specified from front panel to back of connectors. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
• Electrical: 100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
• Ventilation: Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
• Certifications or Compliance : UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS

• Shipping Weight:  8.15 lbs
