RDL  |  SKU: TP-BN14 | Item No. 0165-0978

TP-BN14 Networked Mic Input and Selectable Monitor Station

Login for pricing

MSRP: $1879.28

Description

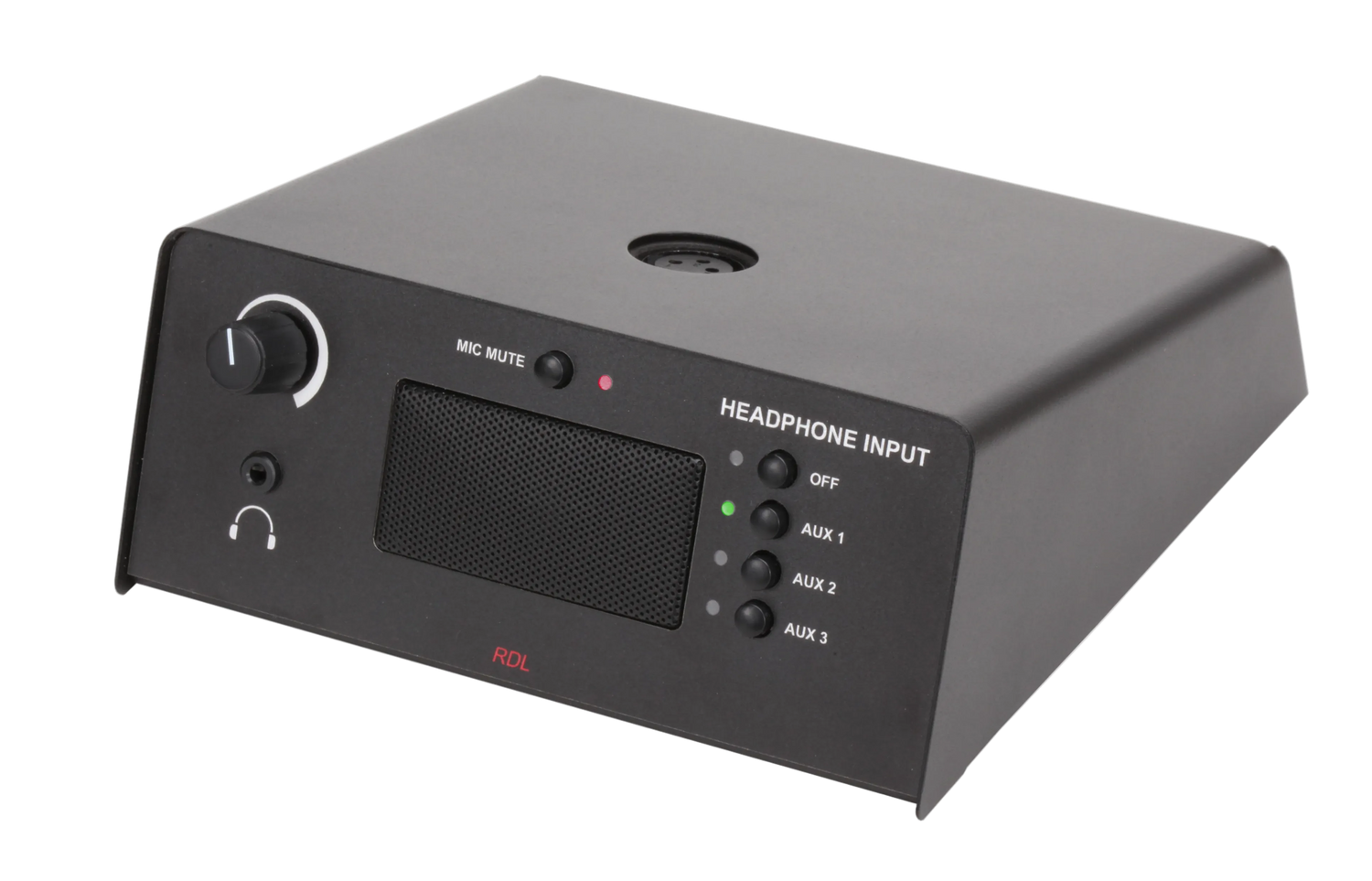

The TP-BN14 is a bidirectional Dante network interface for tabletop use. The unit provides a shock-mounted XLR microphone input with a mute button. A front-panel 2W amplified speaker provides monitoring of a specific audio mix.

The TP-BN14 provides a front-panel headphone Mini-jack with an associated four input source selector. LEDs associated with the input buttons indicate the selected source.

The front panel level control is a long-life potentiometer controlling a VCA. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 90 mW into either high or low impedance headphones. The headphone output may be used to listen to different language translations.

The TP-BN14 may be powered from a 24 Vdc power supply, available separately, or from PoE. It is used in meeting halls, conference rooms or courtrooms.

Product Features

Microphone to Network Section:

  • Converts a Standard Mic Source to a Dante Network Channel
  • Mute Button Toggles Output On and Off or Provides Momentary Muting
  • Automatic Microphone Gain for Condenser or Dynamic Mics
  • P48 Phantom is Provided on the Microphone Input

Network to Speaker Section:

  • 2 Watt RMS Audio Amplifier
  • Compressor/Limiter Prevents Clipping
  • Speaker Audio Source may be a Dedicated Channel or Follow Headphones*

Network to Headphone Section:

  • Selection from 3 or 4 Mono Dante Network Sources to a Stereo Headphone
  • Single-Button Selection for Each Source with LED Indication
  • Upper Button Selects “OFF” or Speaker Source*
  • Front-Panel Output Level Control

Common:

  • Adjustment and Switch Settings on the Chassis Bottom*
  • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
  • Normal or Hot-Standby Operation from PoE
    *set by installer

In the Box
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    2.85 in
  • Width
    6.95 in
  • Weight
    2.97 lb
  • Depth
    7 in
