RDL  |  SKU: RU-MLB4P | Item No. 0165-0741

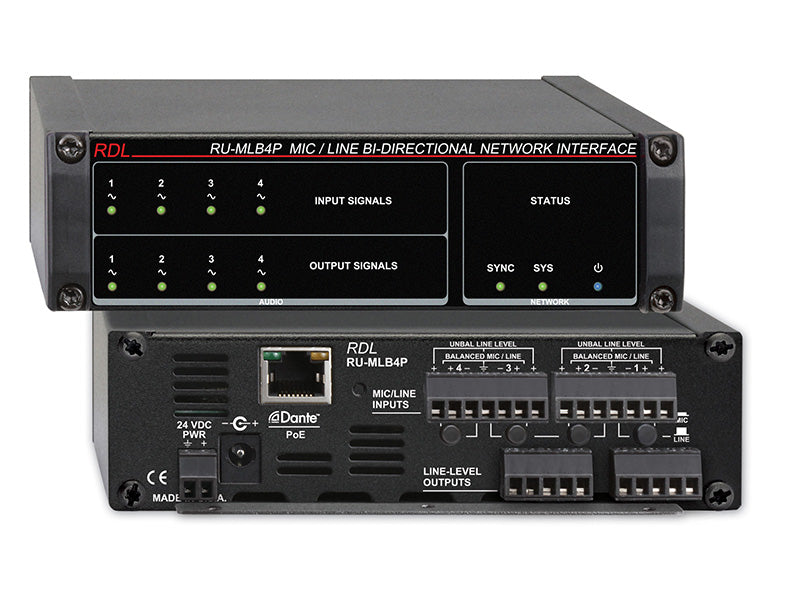

RU-MLB4P Mic/Line Bi-Directional Network Interface

Login for pricing

MSRP: $1316.51

Description

The RU-MLB4 modules are Dante audio network interface products compatible with microphones and line-level audio equipment inputs and outputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

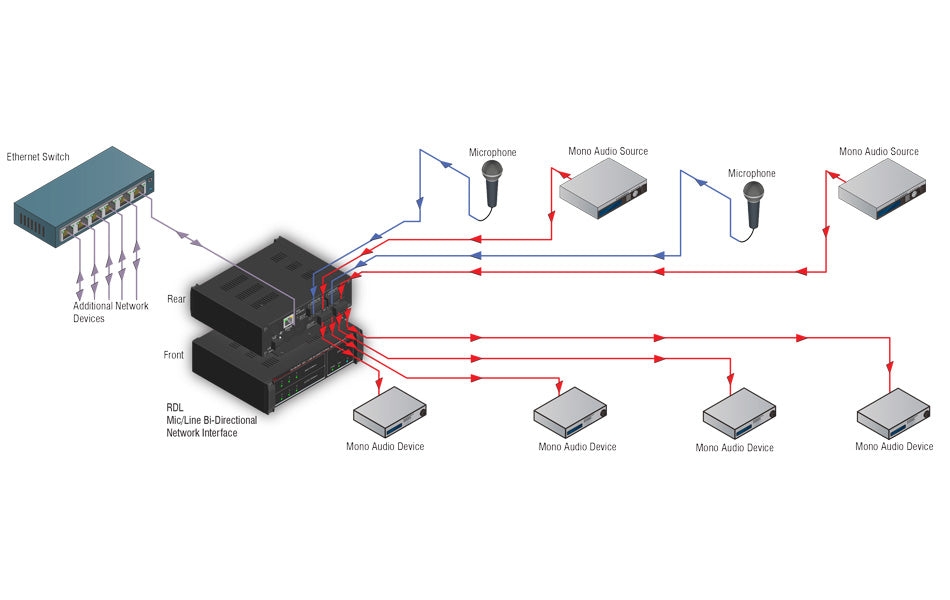

APPLICATION: The RU-MLB4 is a high quality converter that provides professional line-level outputs from four Dante network received audio channels. It also converts four professional or consumer line-level sources, or dynamic or condenser microphones to Dante network audio channels.

The RU-MLB4 is powered from an external 24 Vdc power supply, available separately.

Product Features
  • Interfaces Four Dante Inputs and Four Dante Outputs
  • Converts Four Standard Mic or Line Audio Sources to Dante Network Channels
  • Each Input is Switch-Selectable for Mic or Line
  • No User or Installer Gain Adjustments are Required
  • Automatic Microphone Gain of 40 dB for Condenser Mics and 60 dB for Dynamic Mics
  • P48 Phantom is Provided on Each Microphone Input
  • Line-Level Inputs Accept Unbalanced -10 dBV or Balanced +4 dBu Signals with > 18 dB Headroom
  • Front-Panel Signal LED for Each Audio Input
  • Converts Four Dante Network Audio Signals to Balanced Line Level
  • Line-Level Outputs Provide +4 dBu with > 18 dB Headroom
  • Signal LEDs Indicate Audio for Each of the Received Network Signal Channels
  • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • LED Indicators Show Network Sync Status
  • Normal or Hot-Standby Operation from PoE (Model RU-MLB4P)
  • Equipped for Rack Mounting or Surface Mounting

In the Box
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    1.7 in
  • Width
    5.8 in
  • Weight
    1.81 lb
  • Depth
    5.2 in
