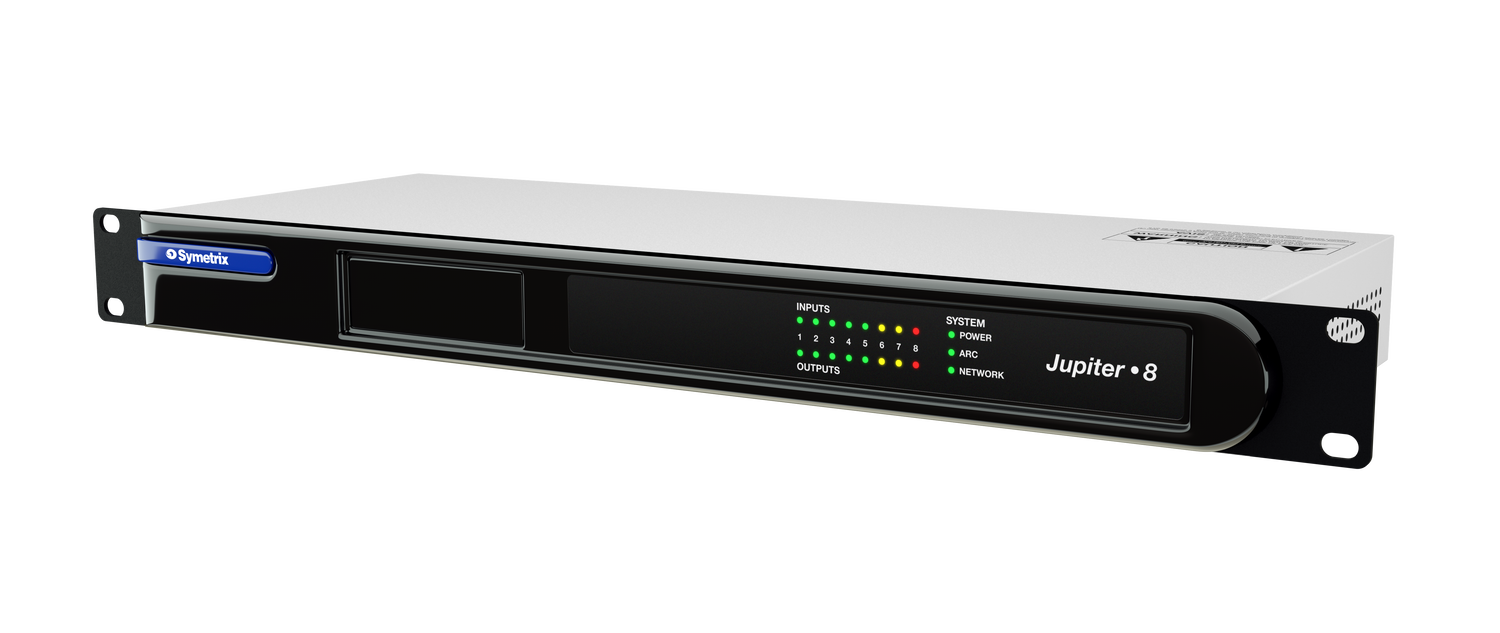

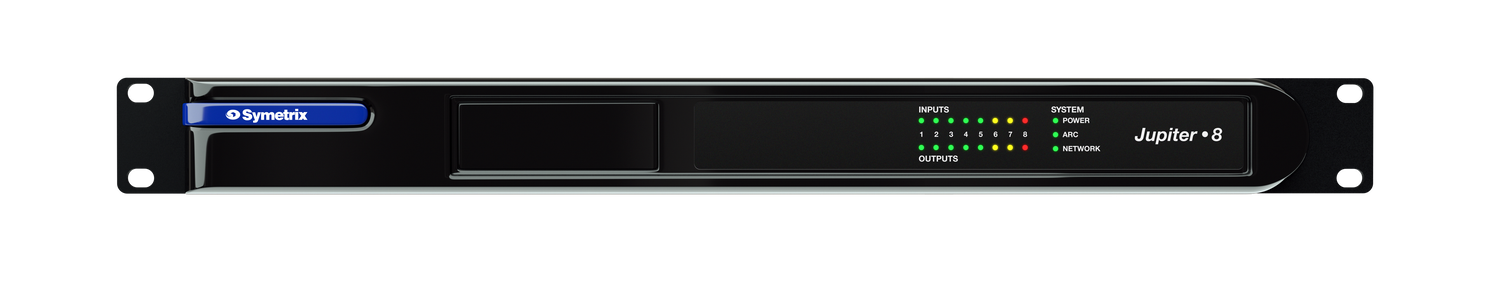

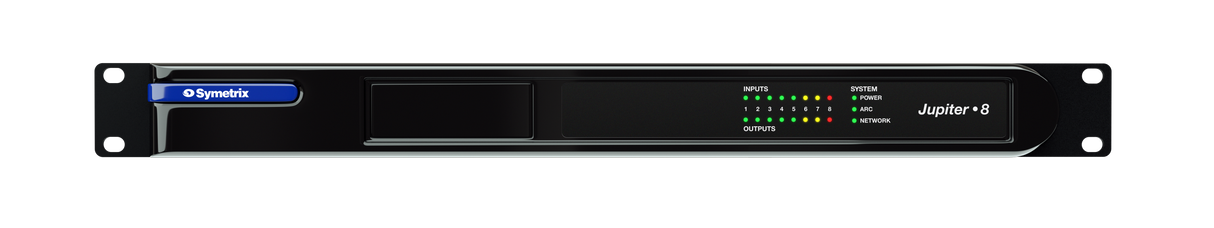

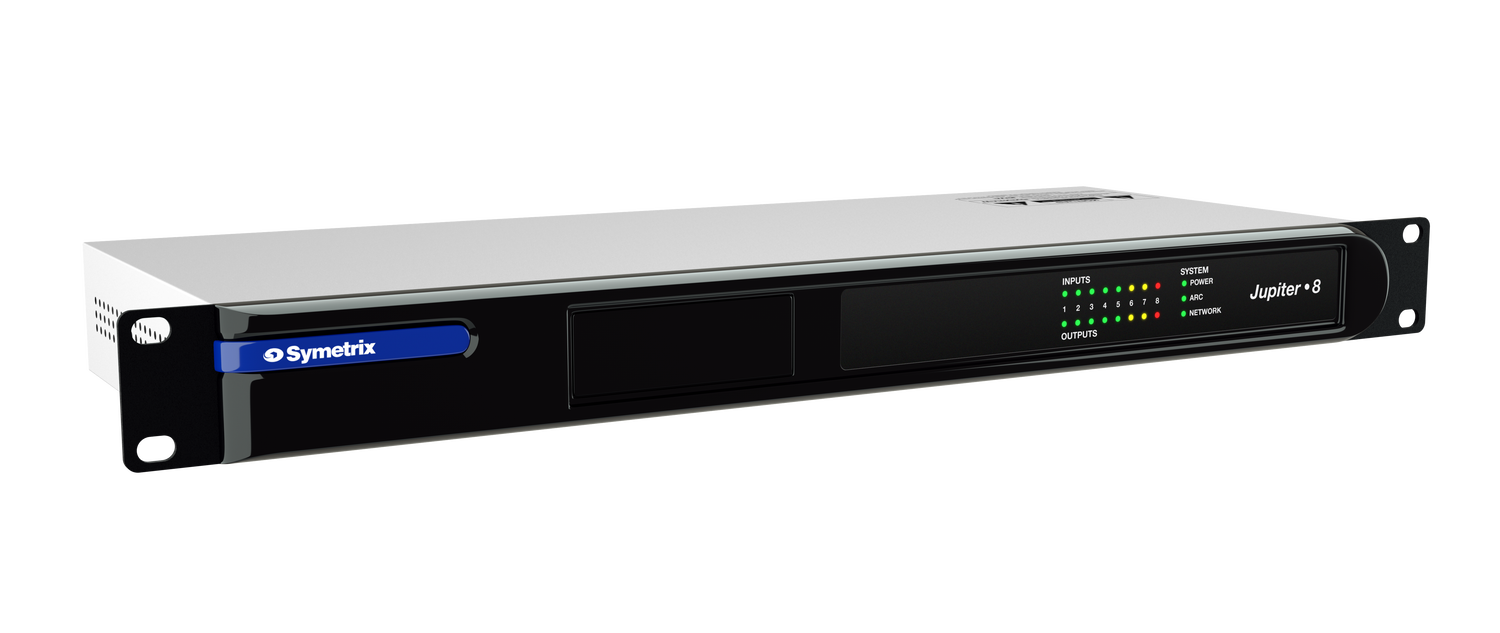

Jupiter 8 8 In, 8 Out DSP, App-based Software

Inputs

• Number of Inputs:  Eight (8) switchable balanced mic or line level.
• Connectors:  3.81 mm terminal blocks.
• Nominal Input Level:  +4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom.
• Mic Pre-amp Gain:  +40 dB.
• Input Trim:  +/- 24 dB.
• Maximum Input Level:  +23 dBu.
• Input Impedance:  18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged.
• CMRR:  > 50 dB @ 1 kHz, unity gain.
• Mic Pre-amp EIN:  < -125 dBu, 22 Hz - 22 kHz, 100 Ω source impedance.
• Phantom Power:  +20 VDC, 20 mA maximum per input.

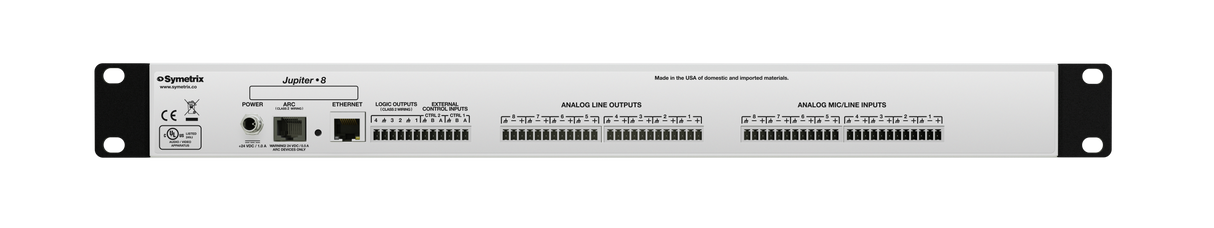

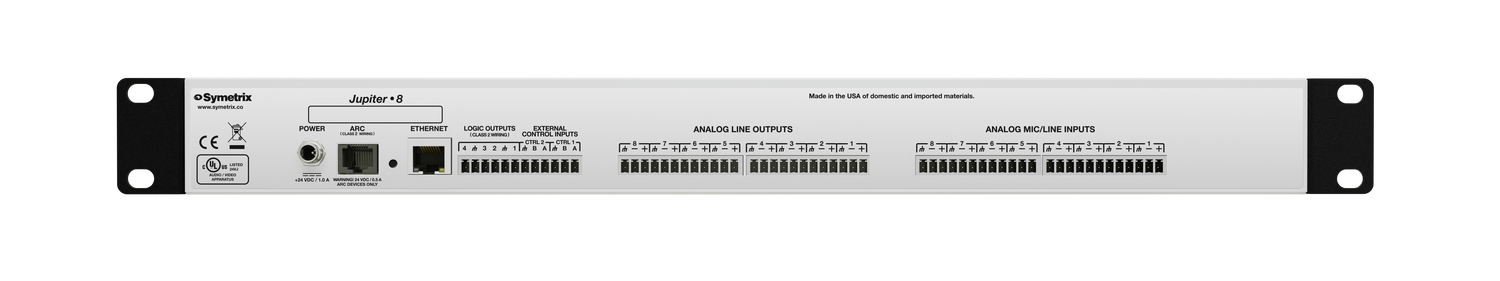

Outputs

• Number of Outputs:  Eight (8)
• Connectors:  3.81 mm terminal blocks.
• Nominal Output Level:  +4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.
• Maximum Output Level:  +24 dBu.
• Output Impedance:  200 Ω balanced, 100 Ω unbalanced.

Mechanical Data

• Space Required:  1U (WDH: 48.02 cm x 19.05 cm x 4.37 cm / 18.91 in x 7.5 in x 1.72 in), depth is specified from front panel to back of connectors. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
• Electrical:  100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
• Ventilation:  Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
• Certifications or Compliance:  UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS

System

• Sample Rate:  48 kHz.
• Frequency Response:  20 Hz - 20 kHz, +/- 0.5 dB.
• Dynamic Range:  > 110 dB (A-Weighted), input to output.
• THD+Noise:  < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.
• Interchannel Crosstalk:  < -90 dB @ 1 kHz, typical.
• Latency:  < 1.6 ms, input to output with all DSP inactive.

• Shipping Weight:  7.5 lbs
