Blustream  |  SKU: ACM1000 | Item No. 0210-0459

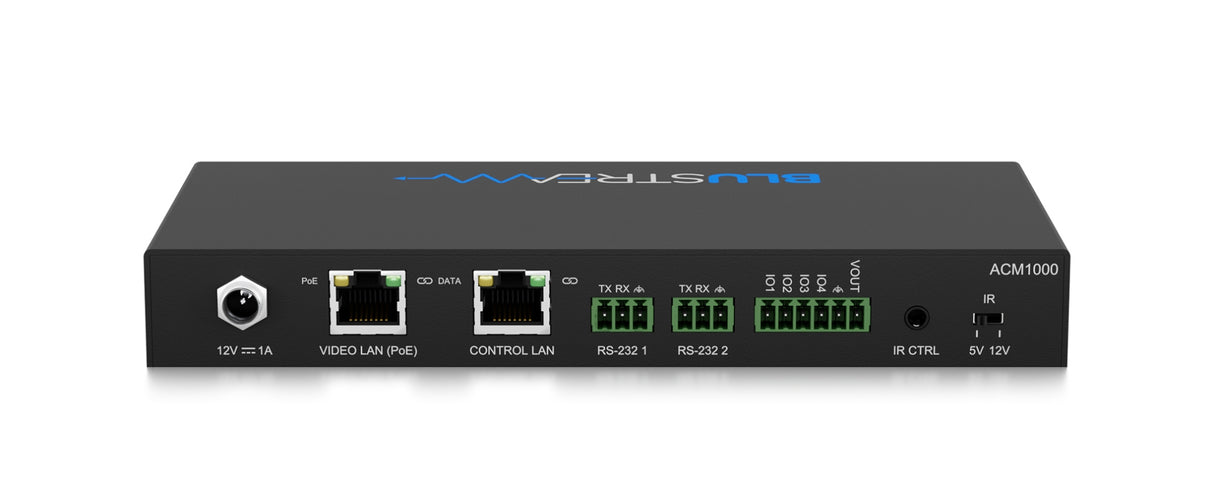

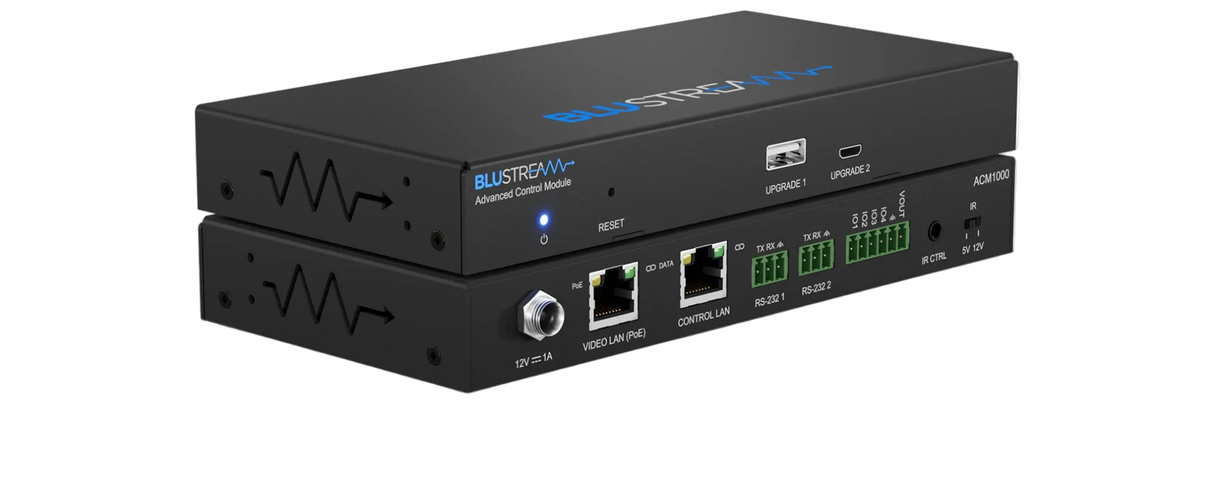

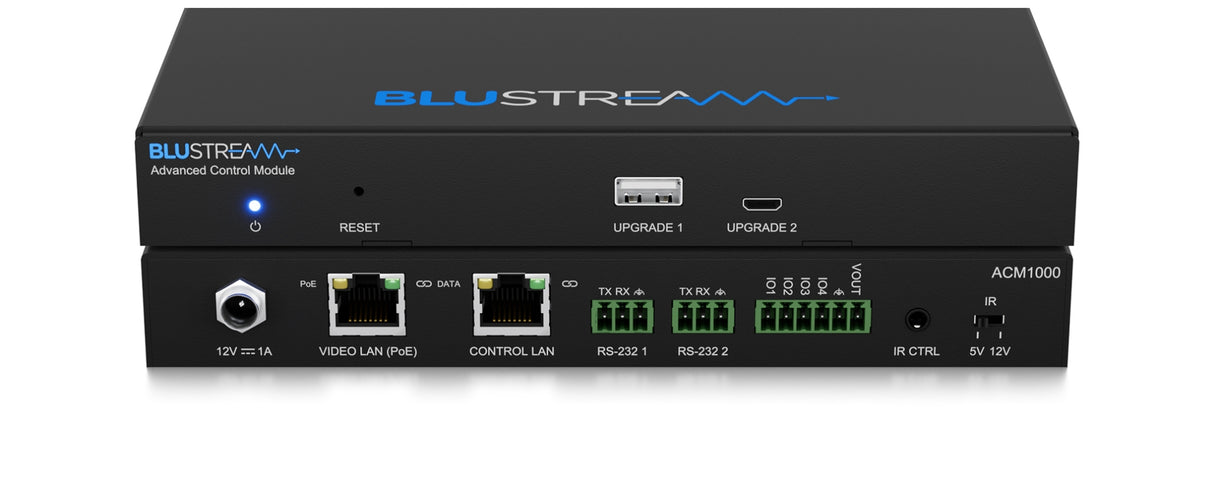

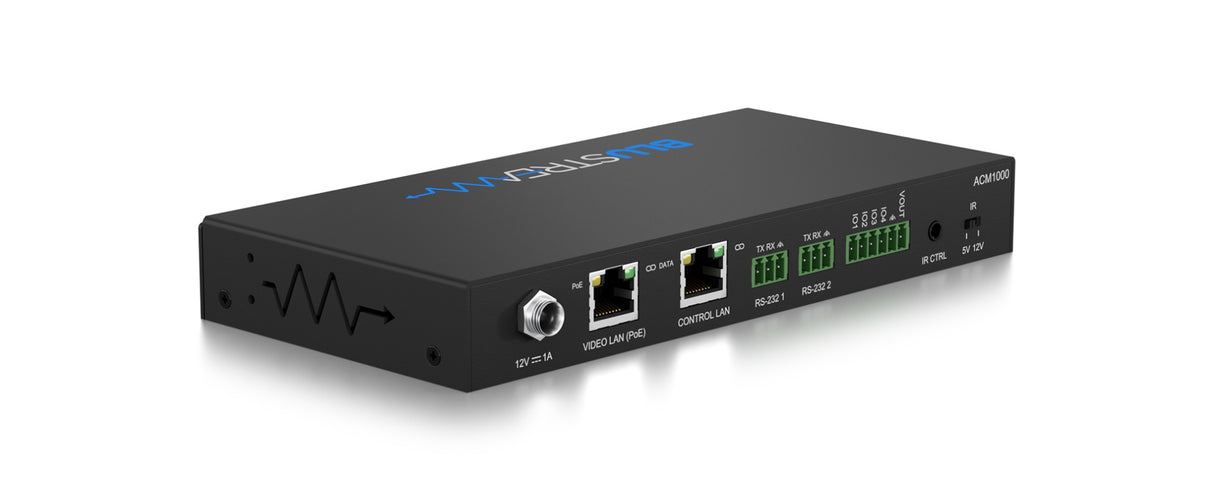

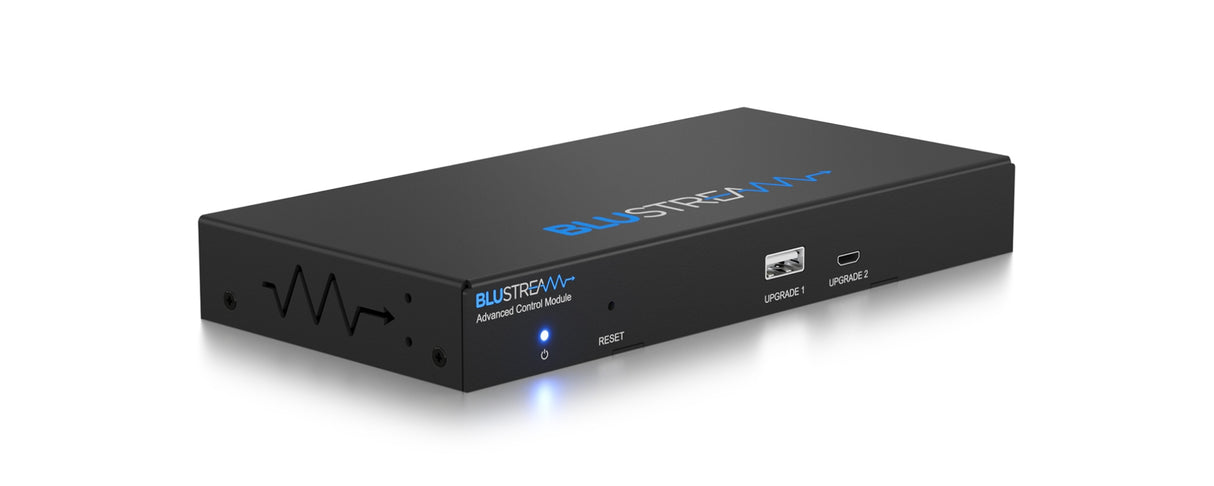

ACM1000 Advanced Control Module

Login for pricing

MSRP: $1429.95

Description

Built on the foundation of our existing ACM platform, the ACM1000 continues to deliver the powerful core functionality our AV over IP customers rely on every day. These include one-touch configuration, intuitive drag-and-drop control via the web interface, and fully independent routing of video, audio, serial, IR, USB/KVM, and CEC signals.

The new ACM1000 introduces a complete rebuild of both the control module hardware and supporting management software. Powered by a quad-core processor, this next-generation platform unlocks a number of new intuitive features including 24/7 scheduling, enhanced source and display control, simultaneous switching, advanced presets, and pre-configured macro control. Together, these enhancements deliver greater automation, faster workflows, and a more intelligent control experience across the entire AV system.

Product Features

• Web interface module for configuration and control of Blustream AV over IP systems
• Intuitive 'Drag & Drop' source selection with video preview feature for active monitoring of system status
• Advanced signal management for independent routing of video, audio, IR, RS-232, USB/KVM, and CEC (AVoIP platform dependent)
• Auto system configuration using in-built 'Setup Wizard'
• Dual RJ45 LAN connections to bridge business / home network to AV over IP video distribution network, resulting in:
- Better system performance as network traffic is separated (different networks, or VLAN's)
- No advanced network setup required
- Independent IP address per LAN connection
- Allows for simplified TCP / IP control of AV over IP system
• Dual RS-232 ports for control of the AV over IP system, and passthrough of control commands to remote third party devices
• 5V/12V IR integration for control of AV over IP system
• Configurable GPIO ports for integration with 3rd party products
• Direct control command processing allowing IP to IR, serial or CEC to any end point in the system
• GUI based source and display remote for direct control using IR, serial and CEC
• 24/7 scheduling functionality
• Macro functionality for recall of multiple commands from a schedule, GPIO, or API command
• Grouping of receivers for instant recall of input switching to multiple displays
• Preset functionality for recalling set I/O's from a single GUI button press or API command
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should AV over IP network not support PoE
• 3rd Party drivers available for major control brands

In the Box

1 x ACM1000
4 x Rubber Feet
1 x Mounting Kit
1 x Quick Reference Card

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    0.98 in
  • Width
    7.48 in
  • Weight
    1.1 lb
  • Depth
    3.66 in
