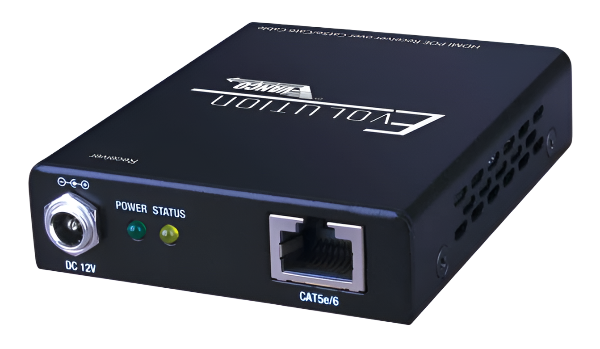

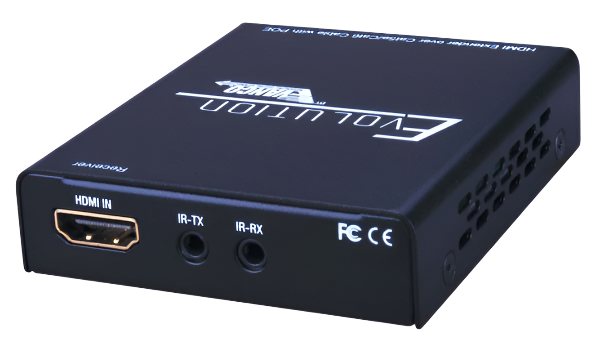

EVRX2006 HDMI Receiver PoE 165' /50m

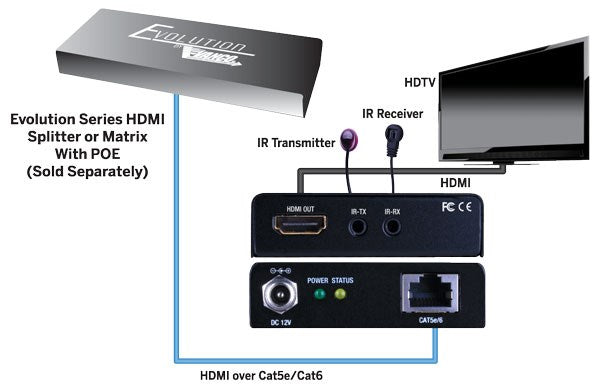

• To be utilized with Evolution by Vanco matrix units or splitters that transmit HDMI signals over a single Cat5e/6 cable and feature Power over Ethernet (PoE) Technology
• Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
• Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6; No power supply needed on the receiver end
• Slim and compact design
• Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
• Wideband IR signal from 20KHz to 60KHz
• Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
• Features Auto EDID and EQ Management
• Works with HDMI and HDCP compliant devices
• HDCP 2.0 compliant
• Pure uncompressed 7.1ch digital audio
• Supports DTS-HD and Dolby TrueHD high bit rate audio

• Patent No. 9,710,038 B1

Tech Support Tips: With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now “2nd Generation” versions of each of these products for improved compatibility. Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a “2nd Generation” splitter, a “2nd Generation” EVRX2006 receiver must be used. All “2nd Generation” Products are marked as such on the product and box. If no version or version number is listed, this would be a “1st Generation” unit.
