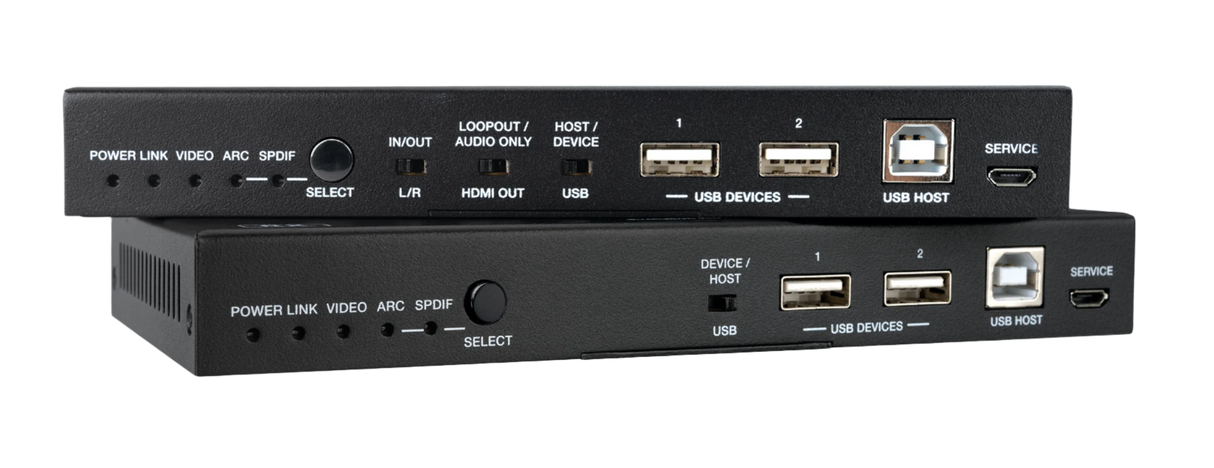

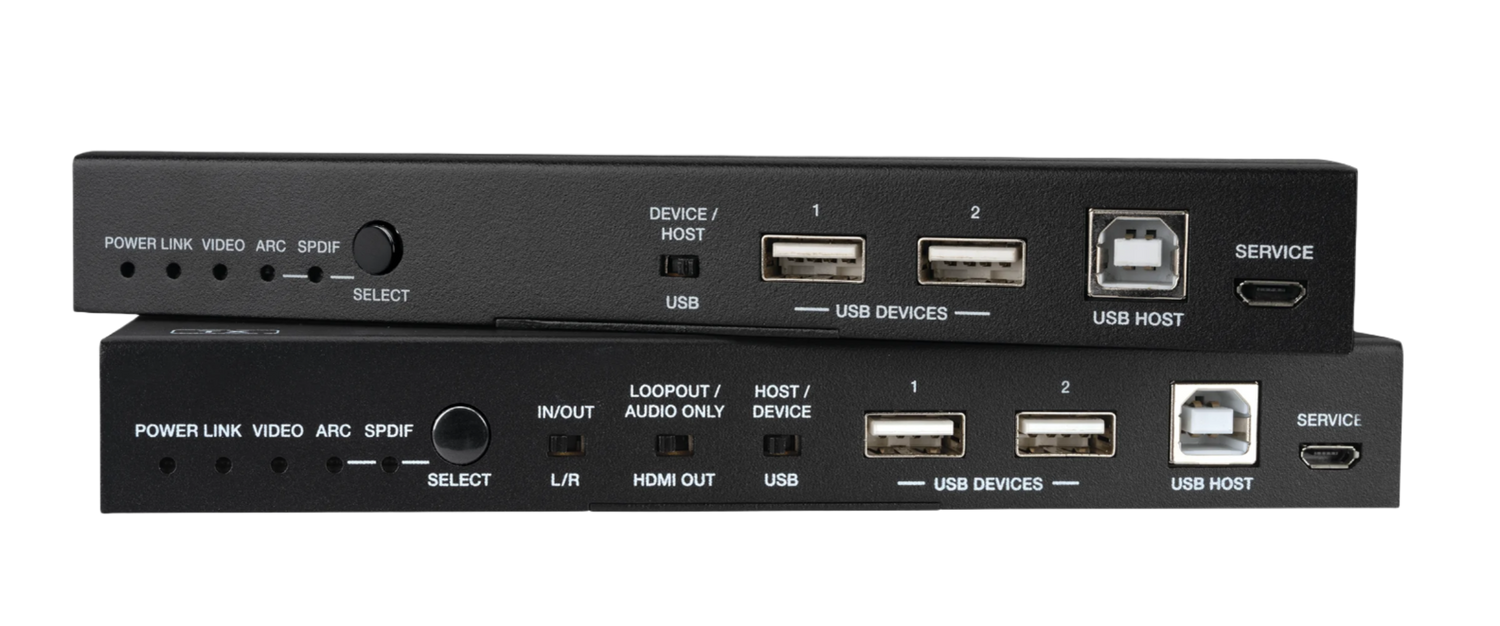

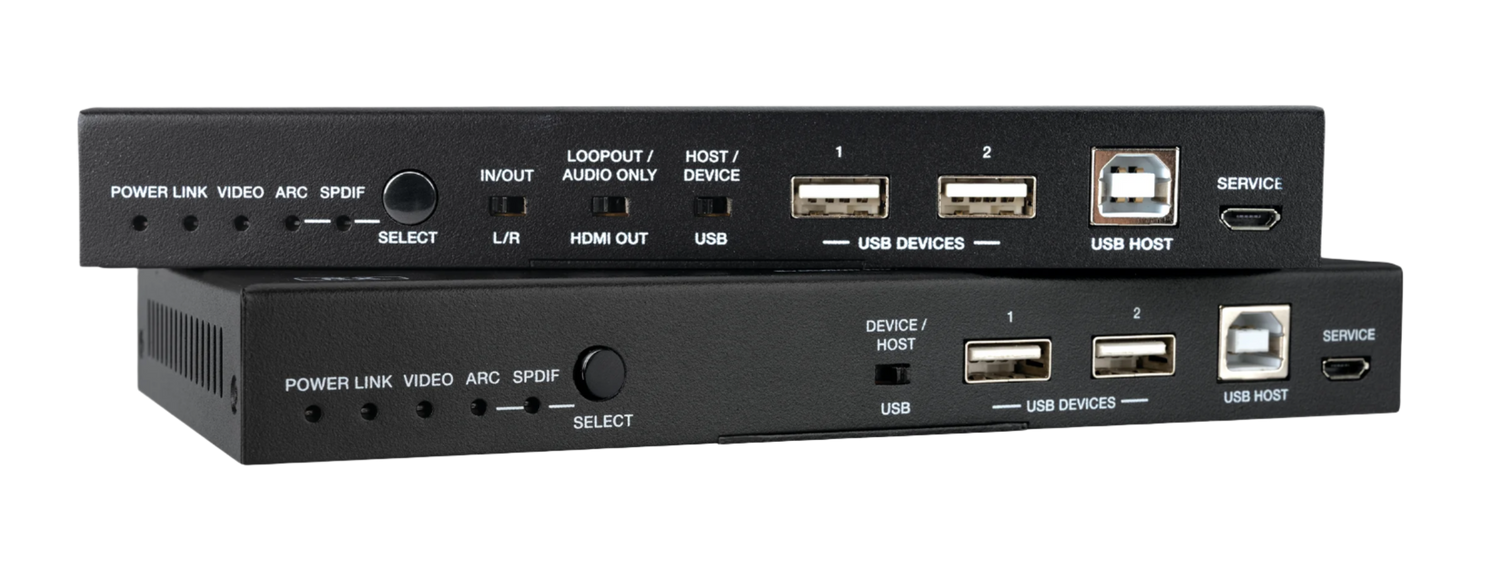

EVEXHDB3 Evolution HDBaseT™ 3.0 Extender Uncompressed

• Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable HDMI 2.0b, HDCP 2.3/1.4 and HDBaseT 3.0 compliant
• Extends uncompressed 4K@60Hz, 4:4:4, 18Gbps and HDR up to 328ft/100m
• Transmission distance up to 328ft/100m via a single CAT6a/7 cable, or 164ft/50m using a single Cat6 cable
• HDR compatible: passes HDR10, HDR10+, Dolby Vision and HLG formats
• Supports Enhanced Audio Return Channel (eARC) and Audio Return Channel (ARC)
• Supports multiple audio formats such as LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and more
• Able to embed audio from a separate audio source, or de-embed to break out or extract audio
• Bi-directional IR, RS-232 and 1Gb Ethernet signal pass through
• Extends and supports USB 2.0 functions such as mouse, keyboard, and touch screen control, as well as data, microphone and webcams
• HDMI loop-out for local monitoring, use with other HDMI distribution products, or for de-embedding audio from the source or display end
• Features Power over HDBaseT technology (PoH) which transmits power over Cat6/6a/7, allowing for either Transmitter or Receiver to be powered without the use of a power supply
