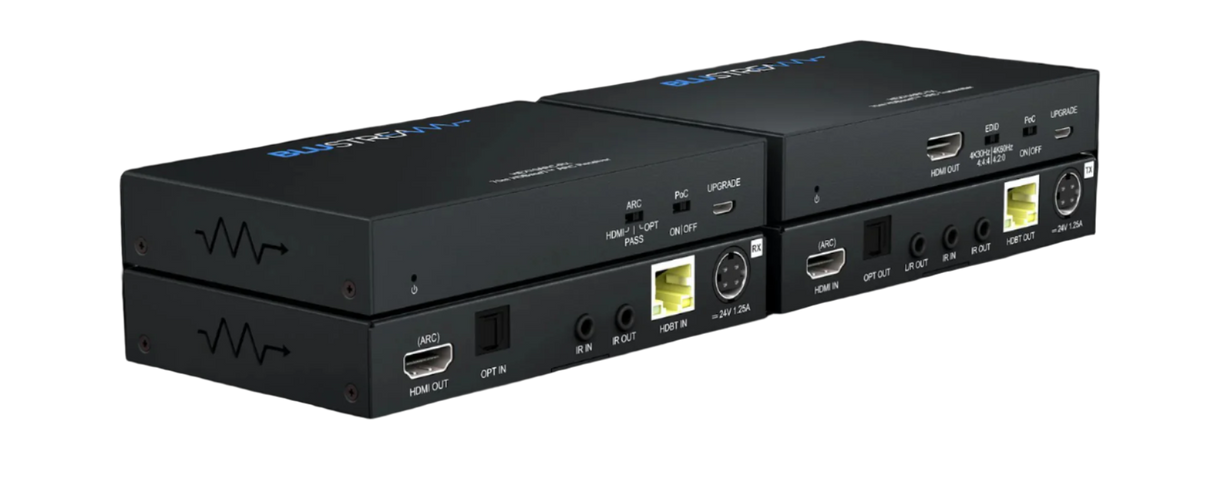

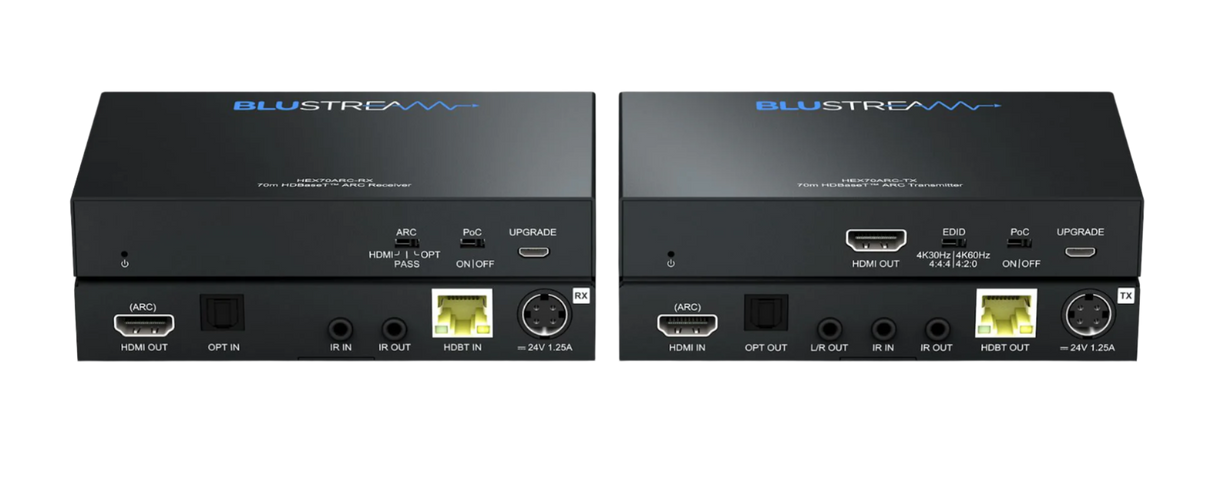

HEX70ARC-KIT HDBaseT™ ARC Extender Set 70M

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
• Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant with smart EDID management

*Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.

1 x HEX70ARC-TX
1 x HEX70ARC-RX
1 x 24V/1.25A DC Power Supply
1 x IR Emitter
1 x IR Receiver
2 x Mounting Bracket Sets
1 x Quick Reference Guide
