Blustream  |  SKU: IP300UHDWP-TX | Item No. 0210-0360

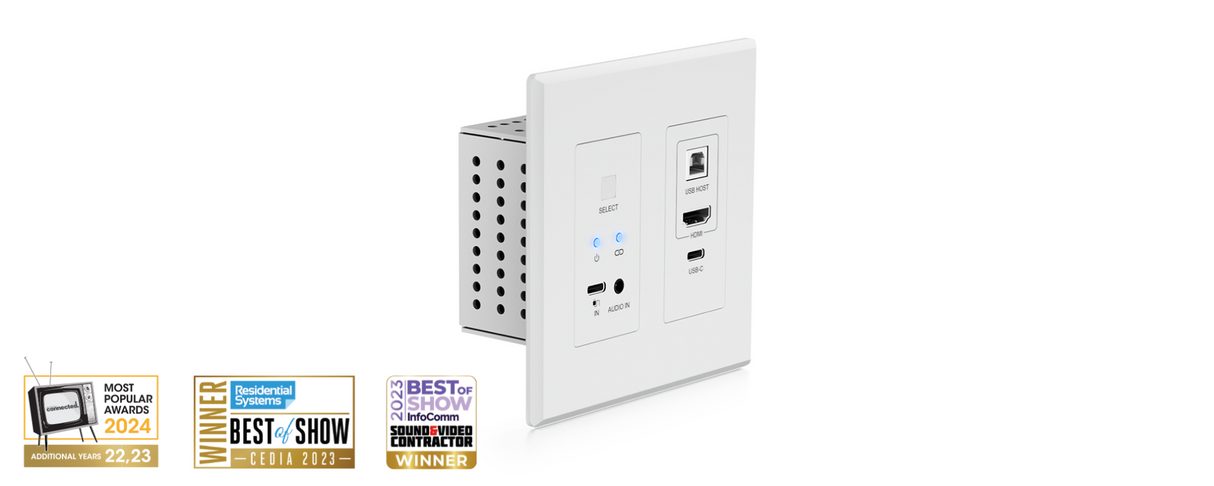

IP300UHDWP-TX IP Multicast HDMI 2.0 & USB-C Video Wallplate Transmitter

Login for pricing

MSRP: $1647.95

Description

Our HDMI 2.0 Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network switch. The IP300UHD-WP Transmitter is an industry leading 4K HDMI 2.0 HDCP 2.2 transmitter that using visually lossless compression technology delivers switchable HDMI or USB-C, Bi-directional RS-232 & USB/KVM up to lengths of 100m over standard network architecture.

The IP300UHD-WP can be powered via PoE from the network switch or locally should the switch not support PoE. The IP300UHD-WP is compatible with our IP300UHD-TX/RX and IP350UHD-TX/RX products and with multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.

Product Features

• Advanced 4K HDMI 2.0, or USB-C video over 1Gb managed network
• Virtually unlimited system size
• Extends HDMI or USB-C (DP Alt Mode) up to a distance of 100m over a single CAT cable
• Manual and / or auto source switching of inputs
• Supports up to 4K UHD 60Hz 4:4:4 via HDMI and USB-C connections
• Supports HDR & HDR10+
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of RS-232, audio and video
• USB-B Host connection for KVM connectivity from the HDMI or USB-C video connections*
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• Local 24V power supply (should Ethernet switch not support PoE) - PSU sold separately (part code: PS241-2PH)
• HDCP2.2 compliant with advanced EDID management
• Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX / RX products
• Dual US Decora faceplate surround and backbox compatibility
• Our IP300 Series Video over IP system features flexible deployment options including:
     - Matrix distribution (requires 1Gb network switch)
     - Video wall (requires 1Gb network switch)
     - One-to-one HDMI extender (no network switch required)
     - One-to-many HDMI extender (no network switch required)

*Please note that the USB-C connection is DP Alt Mode video only and does not carry USB data

In the Box

1 x IP300UHD-WP-TX
1 x 2-piece Dual US Decora Faceplate (plastic) with backbox screws
