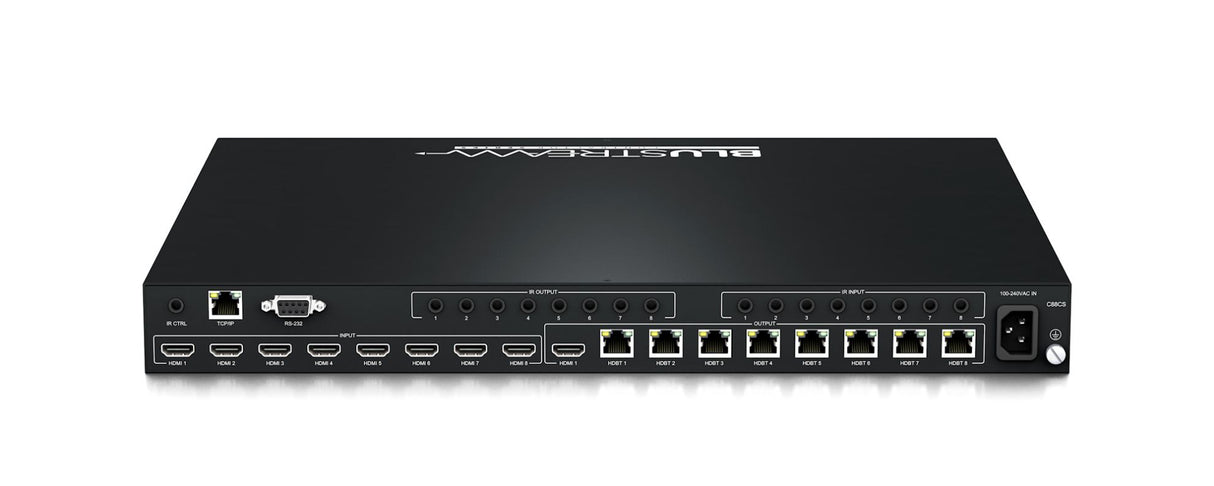

C88CS Contractor 8x8 HDBaseT™ CSC Matrix - 70m

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports pass-through of Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission signals
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for major control brands
• 1U Design for 19" rack mount integration - mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• Recommended receiver: RX70CS (where 18Gbps CSC support is required)

*For 18Gbps CSC support use RX70CS receivers

1 x C88CS
1 x Rack Mounting Kit
1 x Remote Control
8 x IR Emitters
9 x IR Receivers
1 x RS-232 Control Cable
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
Power Cable(s)
