Blustream  |  SKU: HMXL42ARC-KIT | Item No. 0210-0231

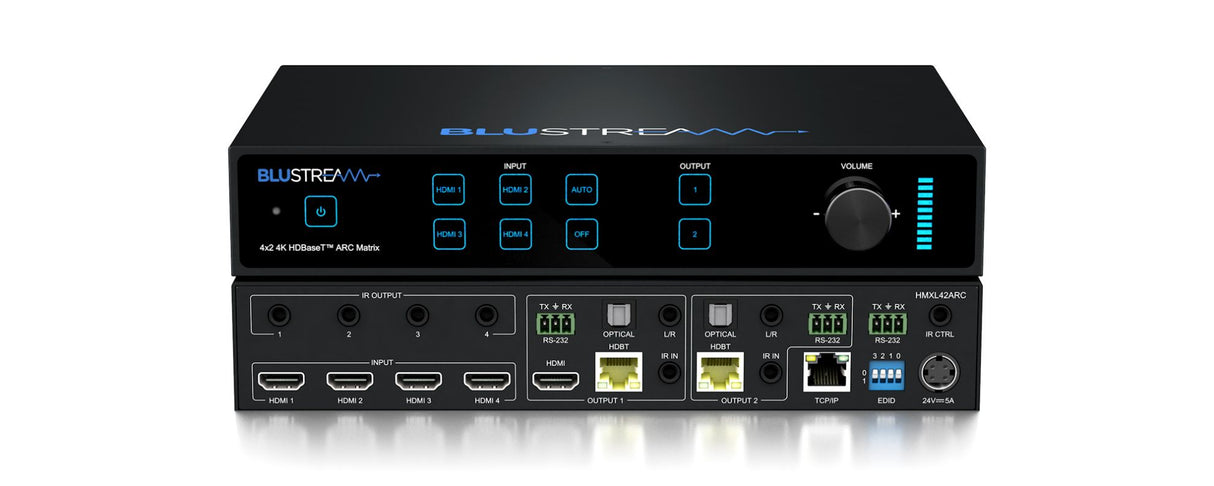

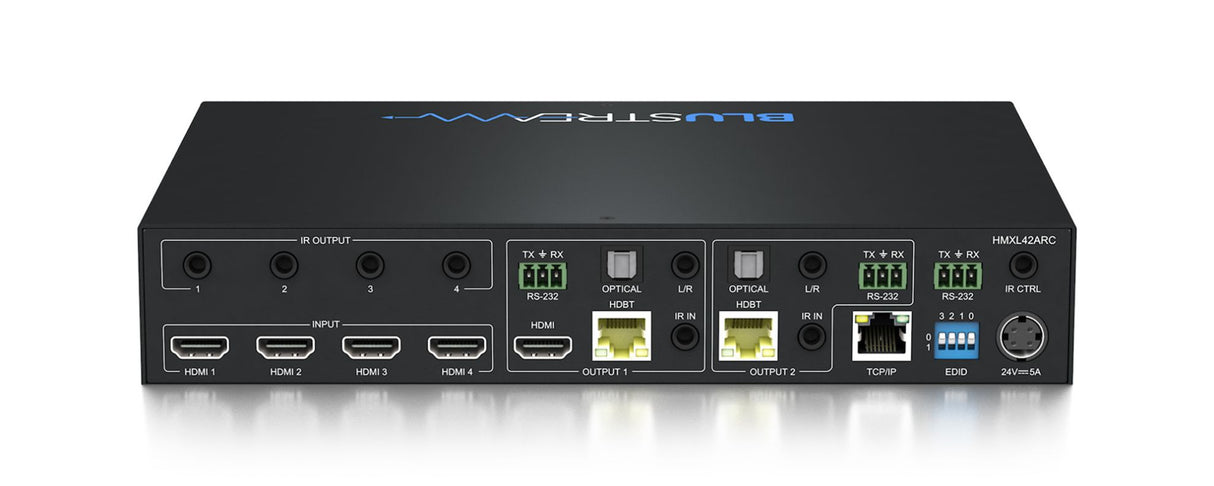

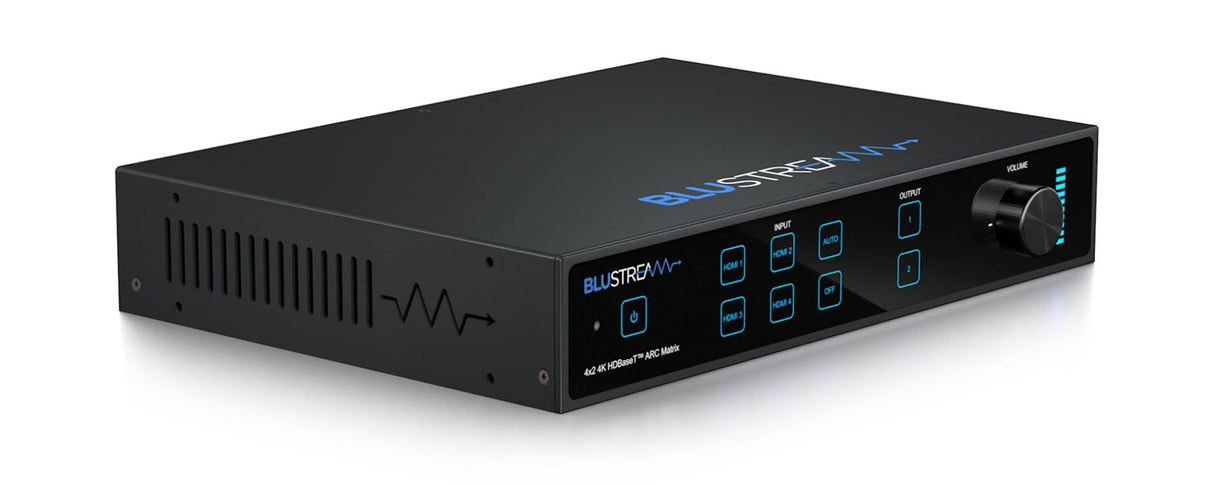

HMXL42ARC-KIT 4x2 HDBaseT™ Matrix Kit - 70m

Login for pricing

MSRP: $2579.95

Description

Our Essential 4x2 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

The HMXL42ARC-KIT is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs, manual or auto source selection, independent audio matrix and a web browser interface module for control and configuration of the Matrix.

The HMXL42ARC-KIT is supplied with 2 x HDBaseT™ receivers.

Product Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• 8 x 2 audio matrix that is independently controllable from video.
• Audio source inputs include:
   - 4 x audio breakout from HDMI source
   - 2 x audio breakout from zone outputs
   - 2 x ARC from zone outputs
• Audio breakout to analog L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analog outputs
• Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
• 3rd Party drivers available for all major control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Supplied with 2 x RX70CS HDBaseT™ receivers

In the Box

1 x HMXL42ARC
2 x RX70CS
1 x 19" Rack mounting kit for HMXL42ARC
1 x Surface mount kit for HMXL42ARC
2 x Mounting kit for RX70CS
1 x Remote control
4 x IRE1 emitters
3 x IRR receivers
1 x Serial Cable - DB9 to 3-pin Phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x 24V/5A power supply
1 x Quick Reference Guide
