Blustream  |  SKU: MX44AVW | Item No. 0210-0383

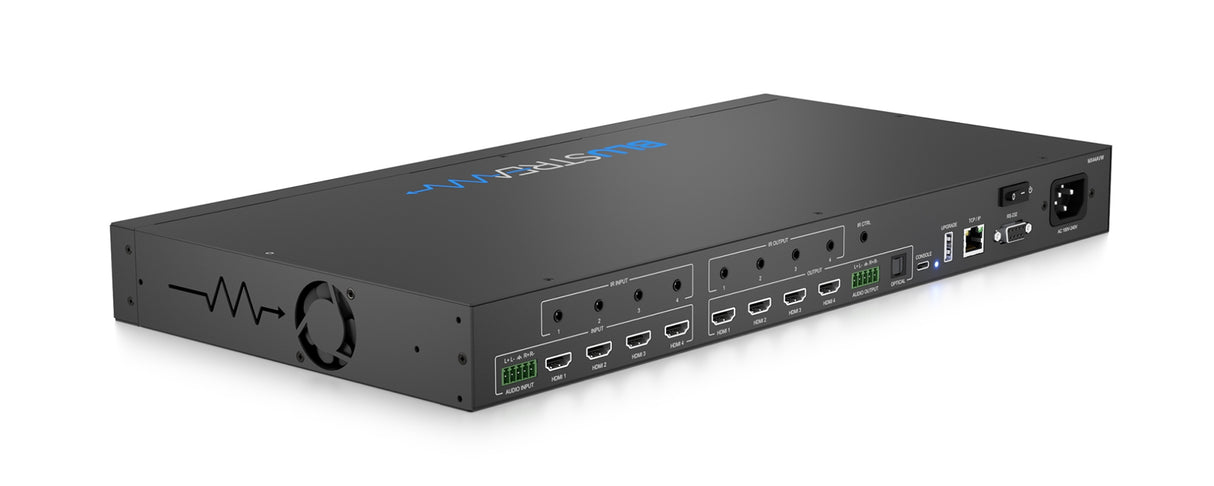

MX44AVW 4x4 Advanced Video Wall Processor

Login for pricing

MSRP: $4685.95

Description

Our MX44AVW is an advanced 4K HDMI 2.0 multi-purpose high-speed video processing system. The MX44AVW can be configured for 3 different output modes:
- 4x4 seamless matrix switcher
- Advanced video wall solution
- Quad multi-view presentation system

The MX44AVW supports advanced video wall configurations, allowing individual overlap and rotation of panels; Multiview with pre-defined and customizable layouts using PIP, POP, PBP, and up to 4 window layouts.

The MX44AVW features a web browser interface module for control and configuration of the matrix with additional third-party control achievable via the front-panel push buttons, IR remote control, RS-232 interface and TCP/IP. The MX44AVW is designed to achieve artistic video wall configurations within retail and showcase style installations.

Product Features

• Advanced 4K HDMI 2.0 multi-purpose high-speed video processor supporting matrix, multiview, and video wall function
• Advanced video wall configuration allowing individual overlap and rotation of panels
• Multiview mode supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations
• Seamless video switching
• Supports HDMI 2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• IR routing
• Control via front panel, IR, RS-232, TCP/IP and web-GUI
• Supplied with Blustream 5V IR receiver and remote control
• HDCP2.2 compliant with advanced EDID management

Please note - a 1080i image is only supported in Matrix and Multiview mode, but will not work on Video Wall mode.

In the Box

1 x MX44AVW
1 x Remote control
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x 19" Rack Mounting kit
4 x Mounting feet
1 x Quick Reference Card
1 x IEC Power Cable
