RDL  |  SKU: D-BT1A | Item No. 0165-0160

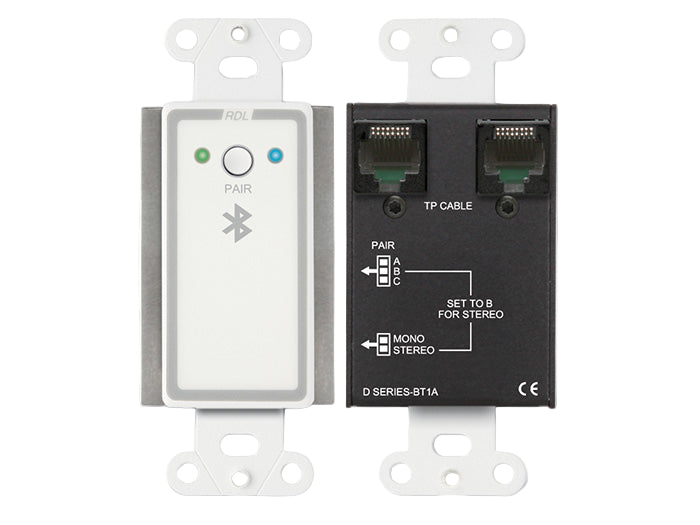

D-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface

Login for pricing

MSRP: $515.81

Description

The D SERIES-BT1A modules are Bluetooth audio receiving modules compatible with RDL® Format-A twisted pair receivers. When paired with a compatible Bluetooth enabled device, the module receives stereo audio from the Bluetooth source. The stereo signal is sent through two Format-A pairs to any RDL Format-A receiver. A stereo/mono switch set by the installer permits summed mono audio to be sent over one switch-selected pair to the Format-A receiver.

Product Features
  • Bluetooth Audio Input for Installed Sound System
  • Intuitive Single Button Pairing with LED Status Indication
  • Special Software Not Required for Module Setup
  • Customize the Module ID Name and Programming Password through the Bluetooth Connection
  • Sends Received Bluetooth Audio to RDL Format-A Receivers
  • Mono Summed or Stereo Audio Input Mode is Switch-Selectable on Rear Panel
  • Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fed in Mono Summed Mode
  • Daisy-Chain up to Three D SERIES-BT1A modules to One Format-A Receiver in Mono Mode
  • Remotely Powered through Twisted Pair Cable
  • Signal and Power Pair Pass-Through on RJ45 Jacks

In the Box
