RDL  |  SKU: DS-A2 | Item No. 0165-0361

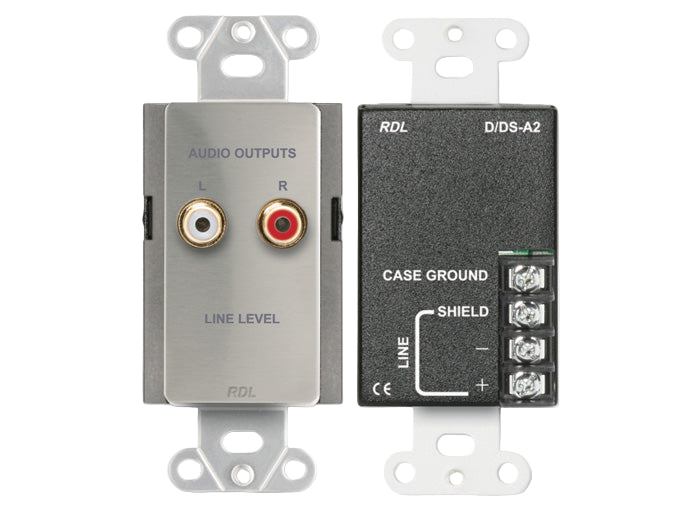

DS-A2 Line Output Assembly RCA Jacks, Terminal Block Stainless

Login for pricing

MSRP: $110.10

Description

The D SERIES-A2 is a passive audio output assembly that provides one or two unbalanced consumer level audio outputs from a balanced line-level audio source. It may be connected to the +4 dBu line level output of any RDL product, even if that output is simultaneously feeding other equipment.

Product Features
  • Input Level:+4 dBu, nominal
  • Input Connector:Full size barrier block
  • Input Impedance:10 kΩ balanced bridging, monaural
  • Output Connectors (2): Phono jacks with gold contacts
  • Input Connections (4): CASE GROUND, SHIELD, + , -
  • Frequency Response:50 Hz to 20 kHz (±1 dB)
  • Attenuated Signal-Reverse Path:< -50 dB (at 150 Ω balanced source output, +4 dBu reference, -10 dBV signal injected into output jack)
  • Power Requirement: Passive

In the Box
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Length
    2.15in
  • Height
    4.13 in
  • Width
    1.7 in
  • Weight
    0.31 lb
