Atlas IED  |  SKU: A-FA138T87FRK | Item No. 0050-0636

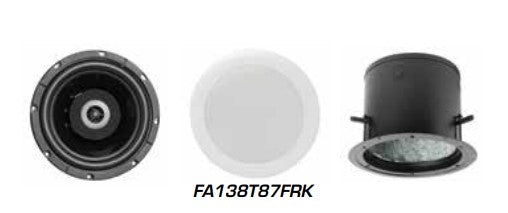

FA138T87FRK Fire Rated 8 Strategy Series Coaxial Loudspeakers

MSRP: $2537.94
Type

Description

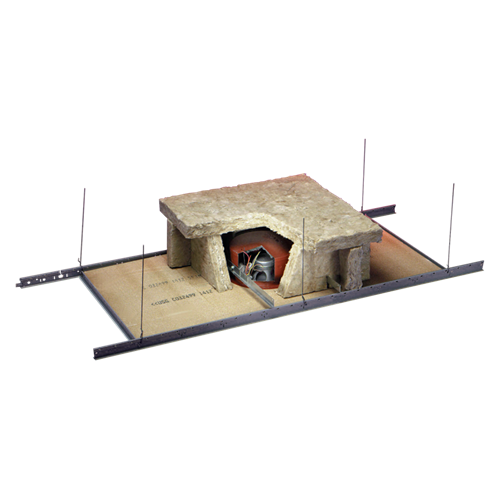

FA138T87FRK is UL classified for fire-resistance in the United States and Canada. The FA138T87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). FA138T87FRK assembly includes a enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer approved for use with the FA136T87FRK are FR versions of the industry standard AtlasIED Strategy Series FA136, FA138 models and the C803A, C10A, and FC104 speakers.

Product Features

8 Watt 70 Volt Transformer

8" Coaxial Driver with Tuned Enclosure

ASTM E119 Standard, NFPA 251

Designed to Work in 32 Different 1,2, & 3 Hour Rated Ceiling Designs as Listed in the 1999 UL Fire Resistance Directory

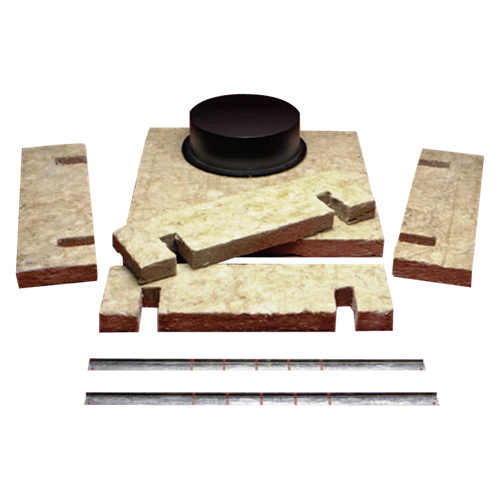

Enclosure-Fiber Kit Includes Pre-Cut Fiber Enclosures, Metal Enclosure, Rail Set, and Hardware

FR Series Assemblies Include Enclosure Kit, UL Listed Speaker/Transformer Assembly, and UL Listed Baffle

Quick Installation & Low Installed Cost

UL 263 Listed for Fire Rated Ceilings

Uses Industry Standard Atlas Strategy Series Components with Proven Performance

Included Baffle:  FA720-8FR

Included Speaker:  FA97-8FR

Included Enclosure:  FA138T87FR

Safety Listed:  ANSI / UL 263 (ASTM E119, NFPA 251)

In the Box

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Length
    24 in
  • Height
    10.75 in
  • Width
    10.75 in
  • Feature
    70 Volt
  • Length
    24 in
  • Height
    10.75 in
  • Width
    10.75 in
  • Feature
    70 Volt
