Crown  |  SKU: CDi4x300BL | Item No. 0087-0112

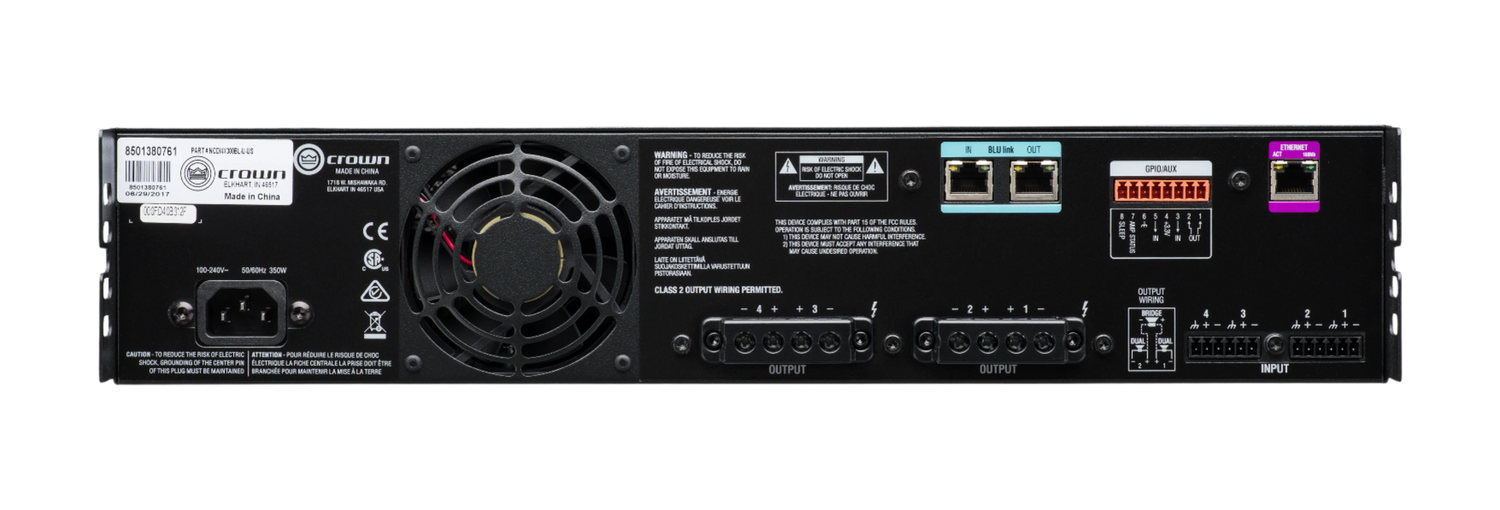

CDi4x300BL Analog + Blu Link Input, 4 Channel, 300w Per Output Channel, Amplifier

Login for pricing

MSRP: $2886.00

Description

The CDi DriveCore 4|300BL offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more.

The 4|300BL also comes with BLU link, adding the ability to send and receive channels over HARMAN’s digital audio BUS.

Product Features
  • BLU link: Yes - Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link
  • Channels:  4
  • Sensitivity (for full rated power at 8 ohms):  0.7V RMS
  • Rated Power Output (per channel @ 4 ohms):  300W
  • Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms):  > 104dB
  • THD (full rated power, 20 Hz - 20 kHz):  0.35%
  • Damping Factor (20 Hz to 100 Hz):  > 1000
  • Frequency Response (8Ω, 20 Hz - 20 kHz):  +/-0.5dB
  • Crosstalk (below rated power) 20 Hz to 1 kHz:  > 80dB
  • Input Impedance (nominally balanced, nominally unbalanced):  20 kΩ balanced, 10 kΩ unbalanced
  • DriveCore Technology – Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
  • Network Control and Monitoring – Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
  • DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration
  • Input Router
  • Input Delay – Up to 1000ms
  • Input Parametric EQ – 8 band
  • Crossover
  • Output Parametric EQ – 8 band
  • Output Delay – Up to 100ms
  • LevelMAX™ Limiter
  • Direct Drive 70/100Vrms Output – Each output channel is capable of provide either 70V or 100V for high impedance applications.
  • Front-Panel Interface – Completely configure the amplifier using an intuitive front-panel interface.
  • GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.

In the Box
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Channels
    4 Channel
  • Watts/Channel
    300W
  • EQ
    Yes
  • DSP
    Yes
  • Rack Mountable
    Yes
  • Rack Size
    2
  • Height
    3.5 in
  • Length
    12.25 in
  • Width
    19 in
  • Weight
    16.13 lb
