LEA  |  SKU: CONNECT 88 | Item No. 0147-0007

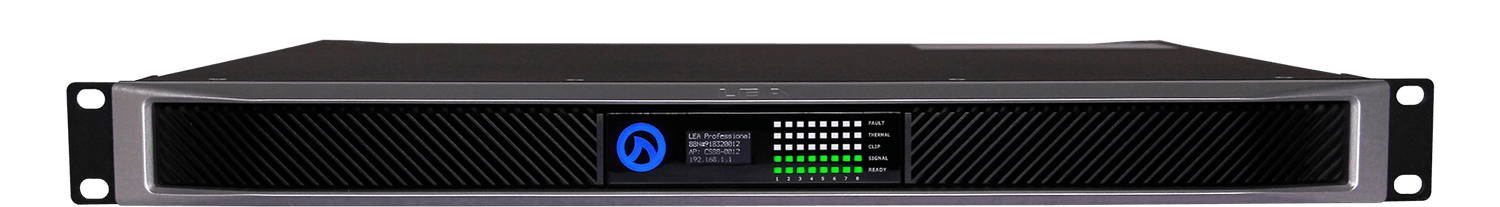

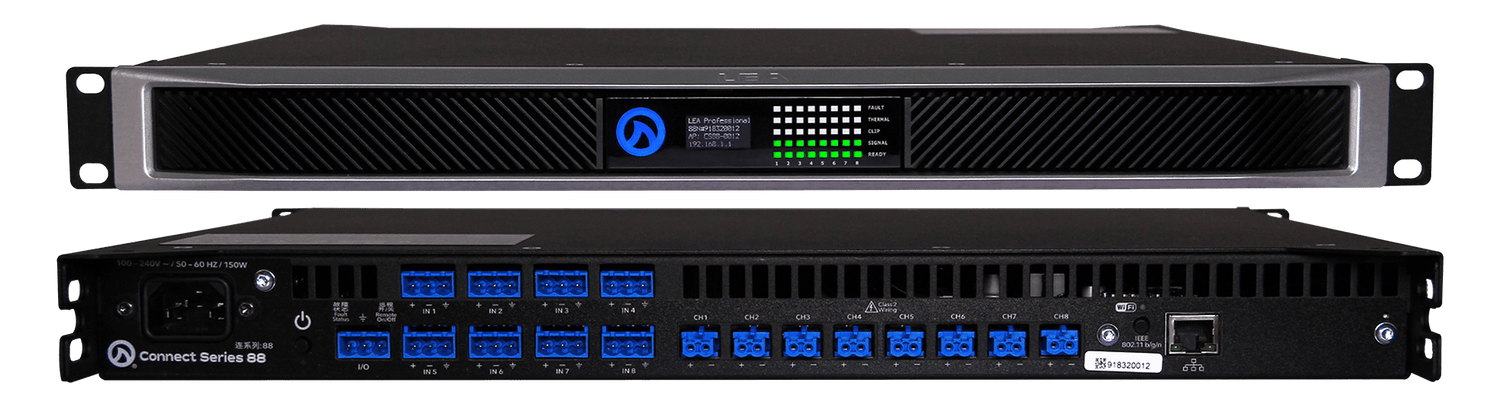

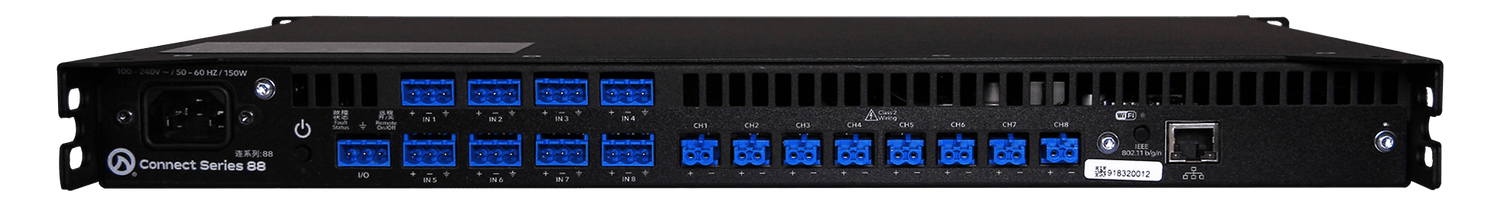

CONNECT 88 Amplifier 8 Channel 80W

Login for pricing

MSRP: $2932.00

Description

Introducing the world’s first Internet of Things- (IoT) enabled, professional-grade amplifier family – the NETWORK CONNECTSERIES. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Product Features
  • Web Browser-based UI – works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw

In the Box
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Channels
    8 Channel
  • Watts/Channel
    80
  • Features
    70 Volt
  • Width
    19 in
  • Height
    1.75 in
  • Depth
    14.25 in
  • Weight
    13.4 lb
