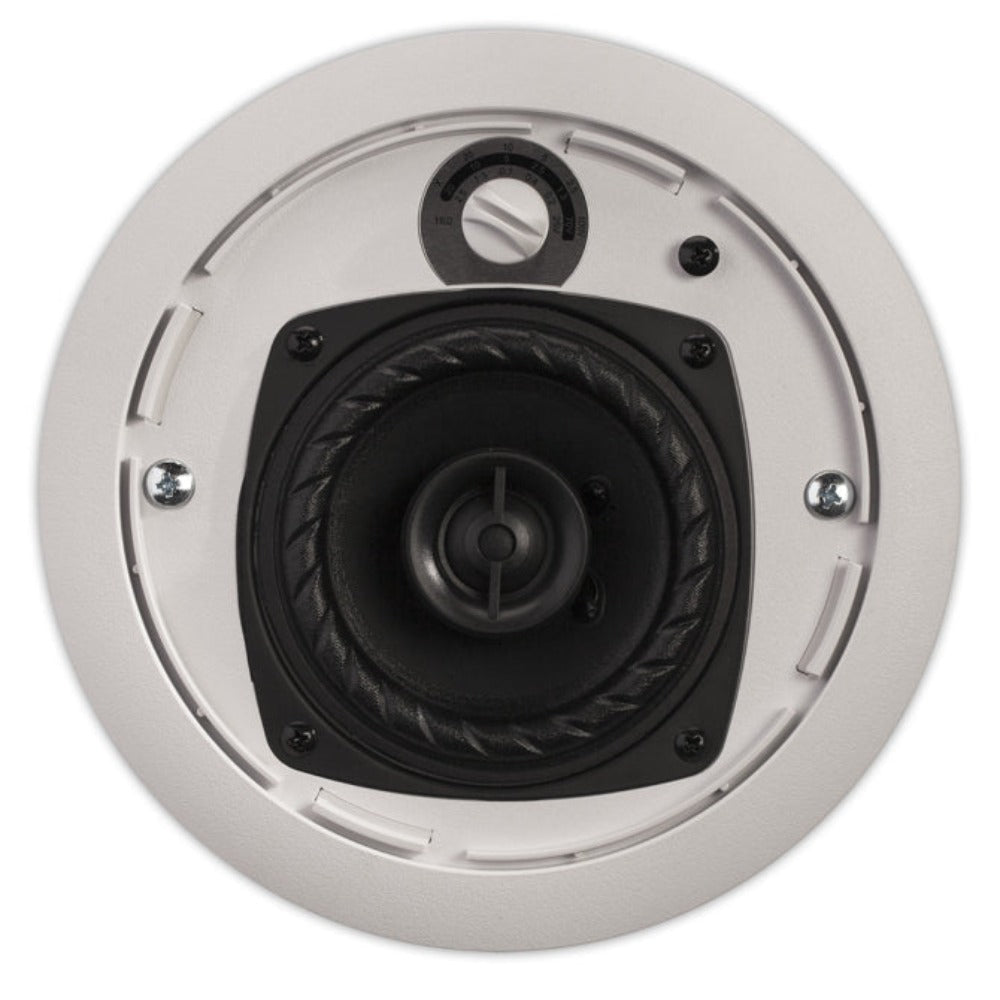

CM42EZSIIWH 4" 2-way In Ceiling Speaker with Short Can

• Engineered for applications with limited plenum pace incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5”
• One 4” (102 mm) treated fiber woofer with cloth surround and one 0.75” (19 mm) silk dome tweeter
• Easy-access six-position tap switch for 25/70.7/100-volt and 16 Ω transformer bypass
• position allows for easy ordering, stocking, and installation
• Reduced amplification costs with maximum efficiency including 87.5 dB sensitivity and 16 Ω impedance
• Superior voice intelligibility with an average coverage angle of 100° (2-10 kHz, independently verified)
• Cost-effective 16 Ω settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer

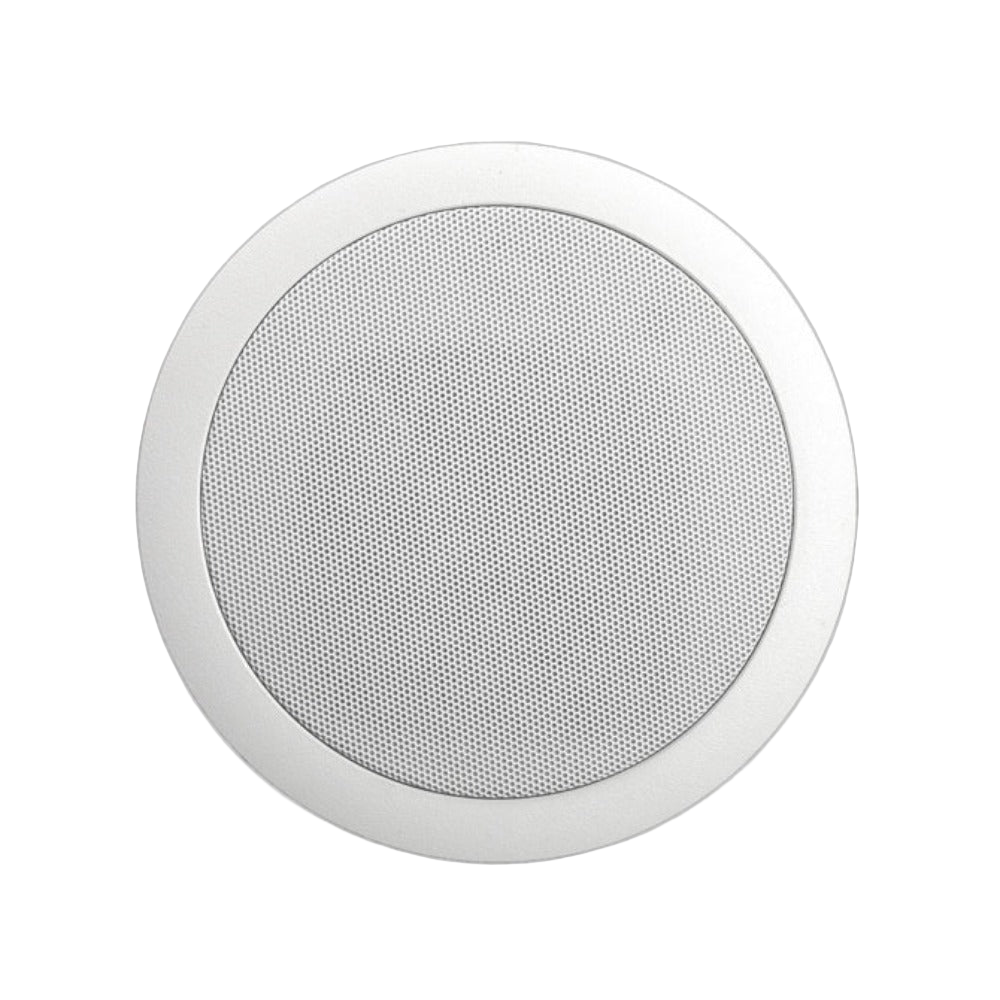

• Incorporates a painted steel grille for lasting durability
• Clamping allowance from 0.0” (0.0 mm) to 1.5” (38.1 mm)
• UL1480A and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
• High-quality black or white painted finish. Custom colors available
• Included accessories: tile bridge, UL-listed 0.5” flex conduit clamp, paint shield, and two wire nuts

Backcan Diameter 146.8 mm | 5.78”
Backcan Height 95.3 mm | 3.75”
Visible Diameter 190.5 mm | 7.5”
Visible Height 8.4 mm | 0.33”
Mounting Hole Diameter 165.1 mm | 6.5
