TOA  |  SKU: A-9120DHM2CU | Item No. 0081-0011

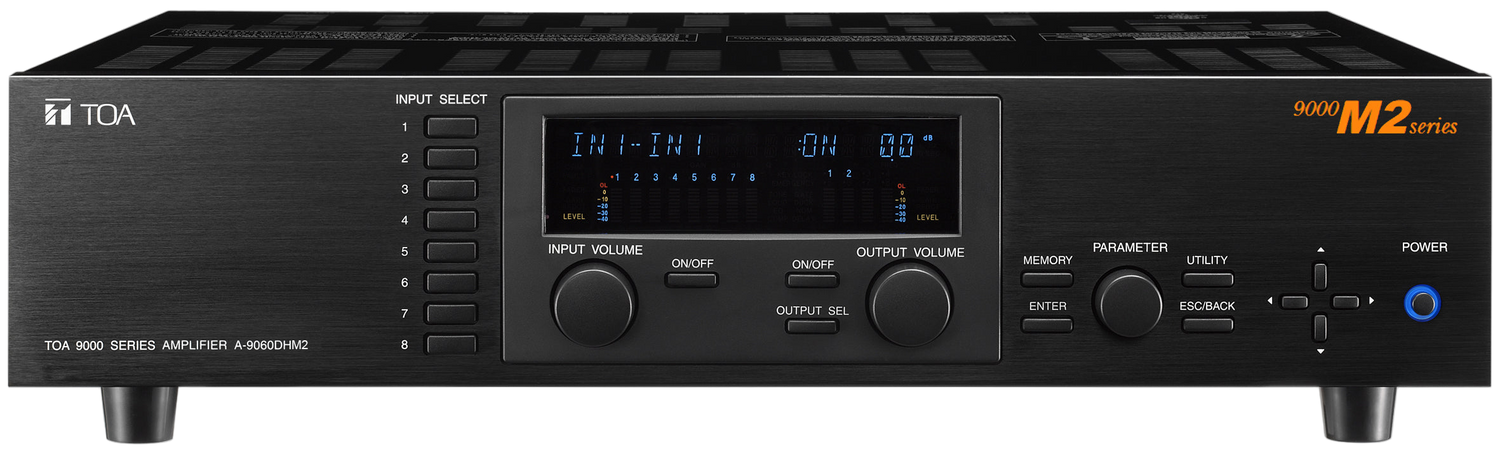

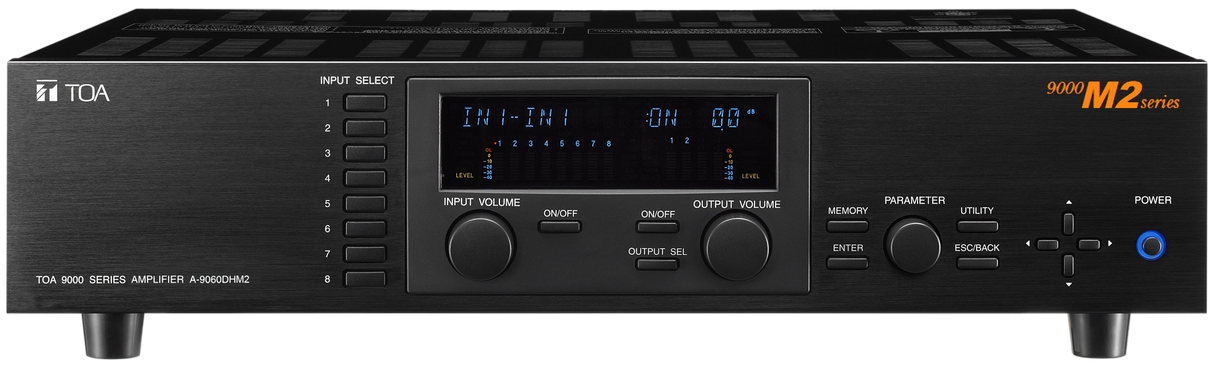

A9120DHM2CU Digital Matrix Mixer 2x 120W @ 70V

Login for pricing

MSRP: $1669.80

Description

The A-9120SM2 CU Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. Since it comes with one 120W power amplifier, it can individually perform multi-origin broadcasts. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.

Product Features
  • Easy to Configure and Operate
  • Exceptional Audio Quality
  • 24-bit, 48 kHz sampling
  • Ultra-Low Distortion - 0.0008%
  • Minimum Latency - 1.1ms (D-001T input to output)
  • Modular Mixer - up to 8 mic/line inputs and 8 outputs
  • Dual Channel Digital Signal Processor (DSP):
  • 10-Band Parametric EQ
  • High and Low Pass Filters
  • Compressor
  • Loudness Contour
  • Bass and Treble
  • Delay (MIXER mode)
  • 34 TOA Speaker EQ Presets
  • Single or Dual Channel Power Amplifiers 70.7 V, 25 V and low impedance models
  • Flexible Output Power - dual channel models allow 50% of either amplifier channel to be allocated to the other channel (Ex. A-9060DHM2: CH1:90W, CH2:30W)
  • Telephone Zone Paging - access up to eight zones with optional ZP-001T module
  • Flexible, integrated, operating system (Mixer + Paging Matrix)
  • Mixer functions along with simultaneous Priority Paging Matrix activation, each with 32 presets
  • Scene memory (x32) contains all mixer (non-priority) settings
  • Paging memory (x32) contains global (static) input settings, independent Xpoint assignments, paging trigger & paging output levels for all high priority (1, 2 & 3) inputs.
  • Both scene & paging memories are stored in a single template along with remote assignments, security lock and other global functions
  • Mixer & Paging functions are independent, and mixer (scene) settings will not affect Paging (event) functions.
  • Rack-mount Kit Included
  • Five Year Warranty

In the Box
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Channels
    2 Channel
  • Watts/Channel
    120W
  • Features
    70 Volt
  • Width
    15.55 in
  • Height
    4.24 in
  • Depth
    16.54"
  • Weight
    24.25 lb
