TOA | SKU: BG-2060 CU | Item No. 0081-0049

BG2060 Mixer Amplifier 5-Input 60W 4 Ohm/25V/70V

MSRP: $705.40

Description

The BG-2060 is 60W Mixer/Amplifier has a newly engineered chassis, designed to not only look better, but perform better and most of all-install easier. Starting with removable euro-block connectors to make wiring a snap, we added assignable MOH/Second Zone source assignment and provided access to mute priority and other settings via rear panel DIP switches - no more "popping the top".

Product Features

Compact five channel Mixer Amplifier for paging, background/foreground music distribution and music/messaging-on-hold.
All inputs/outputs have removable terminal blocks for quick and easy installation.
Phantom Power (+ 24V DC) incorporated for MIC input.
3 line inputs, with Line 1 line/tel switchable, while Line 2 and 3 are equipped with
RCA pin jacks.
Module slot accepts 900 Series input plug-in modules for custom system configurations.
2-channel broadcast system capability together with zone 2 expansion capability
(when used with BA-200 Series).
Any of 5 inputs assignable to MOH/ZONE 2 out on the BG-2035/2060/2120/2240D-AM to fulfill specific BGM requirements.

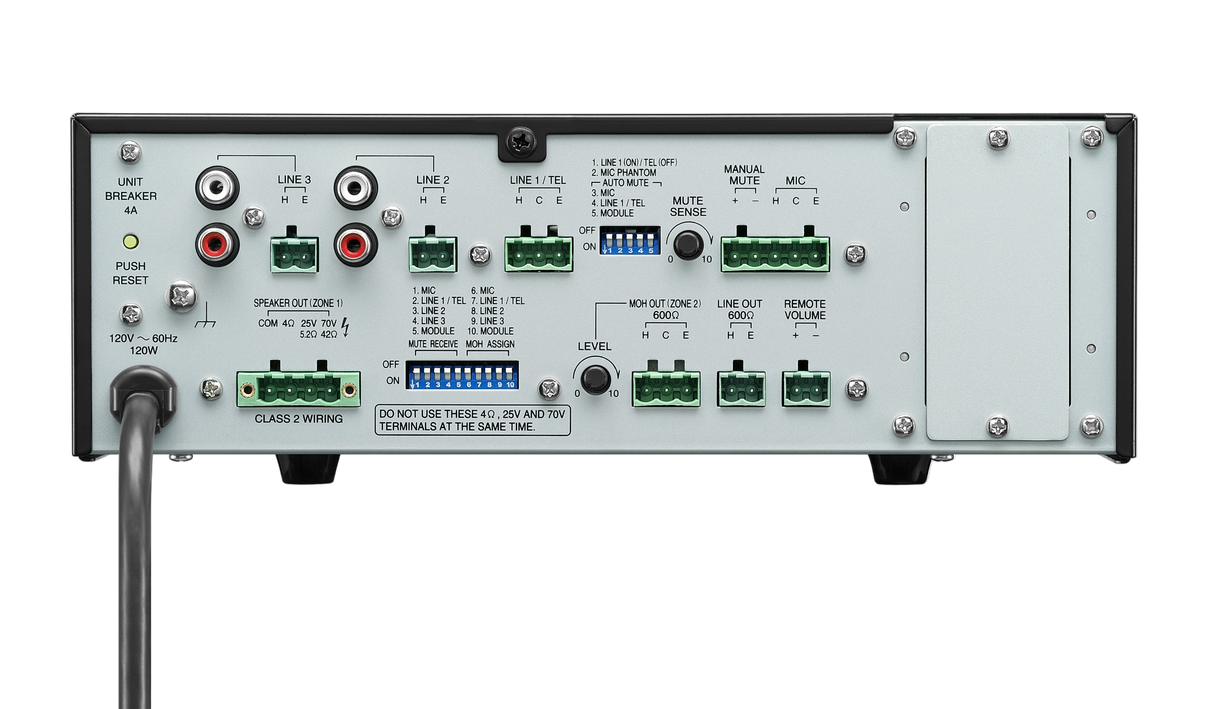

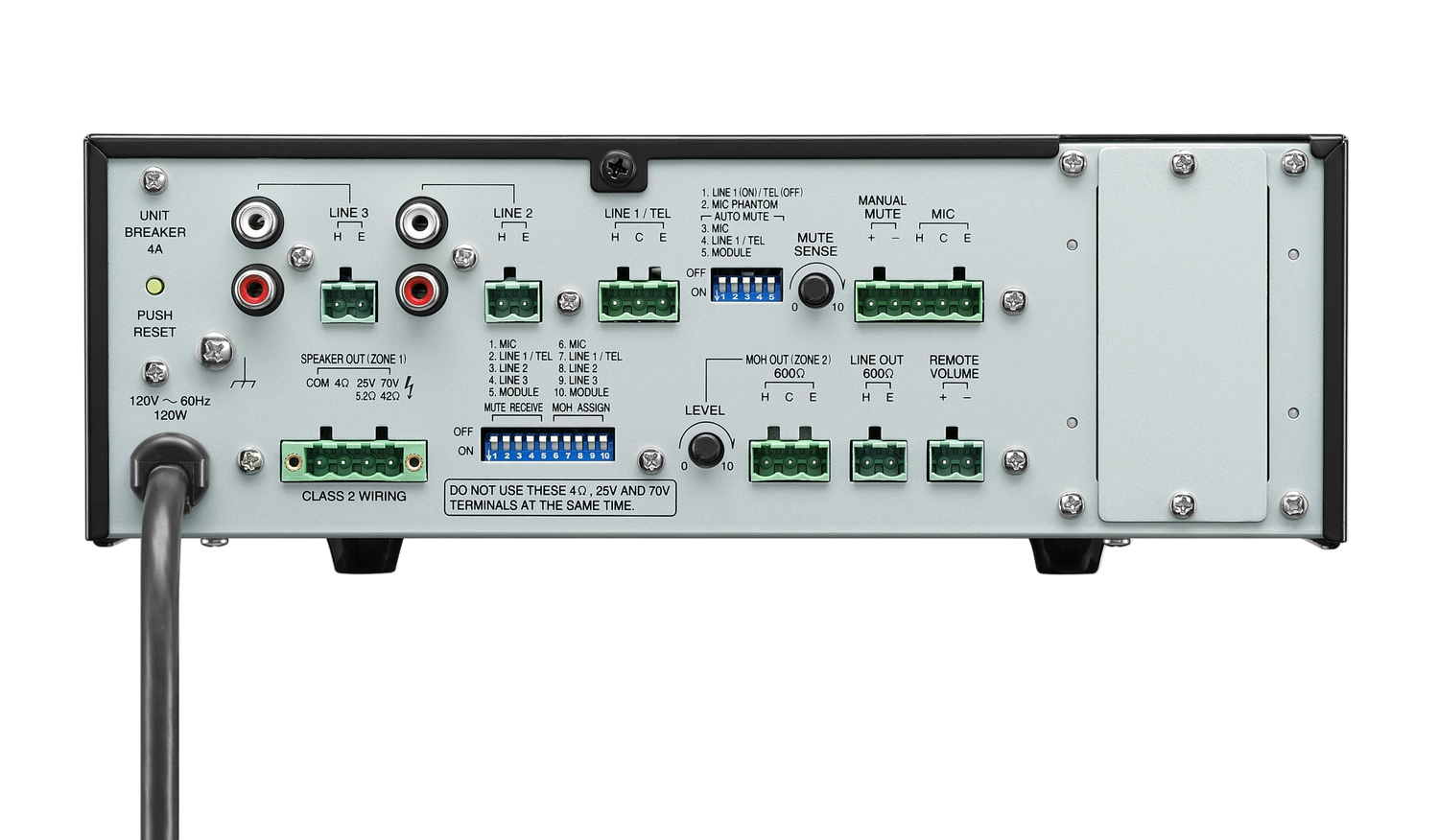

Rear panel-mounted DIP switches allow easy settings.

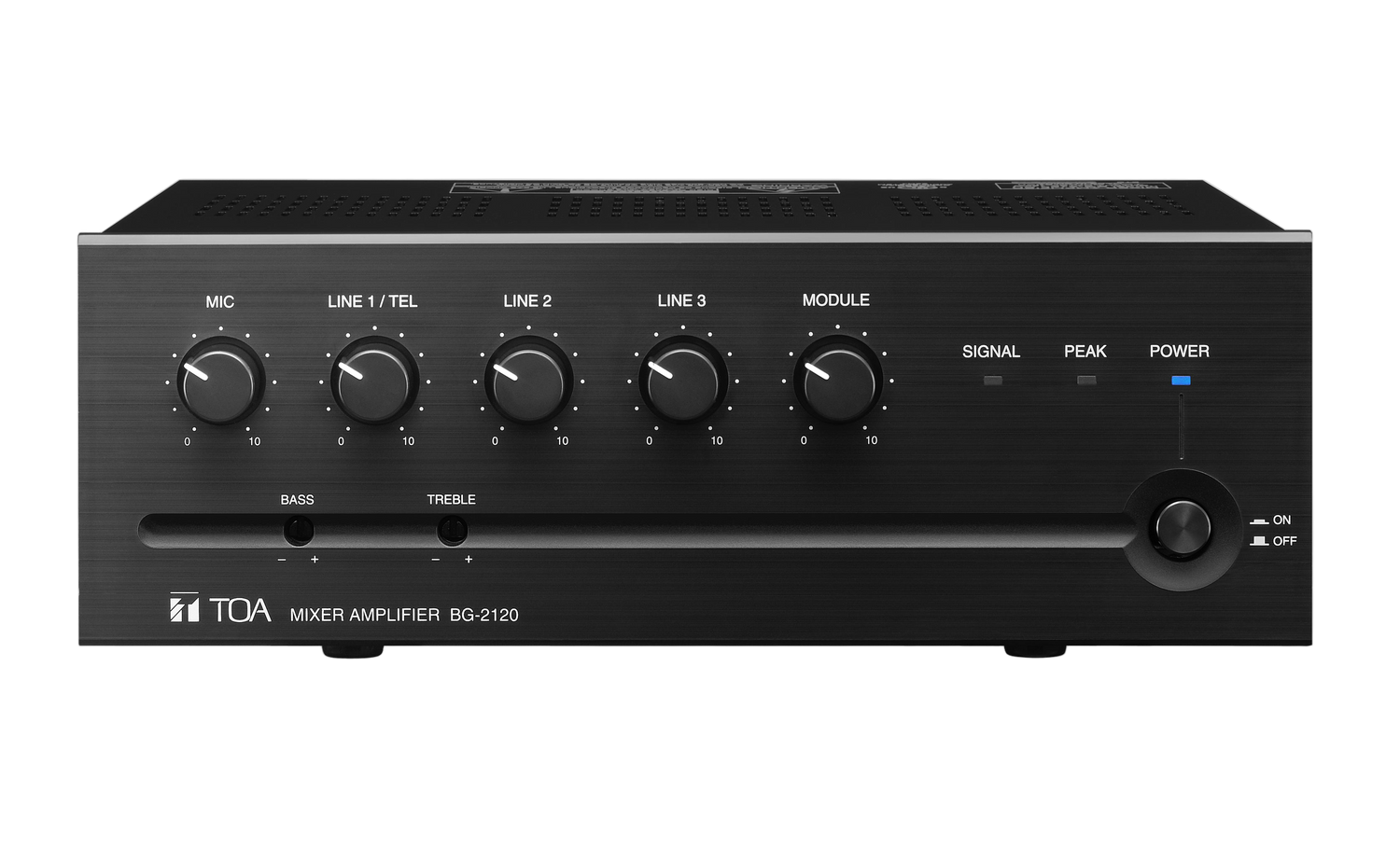

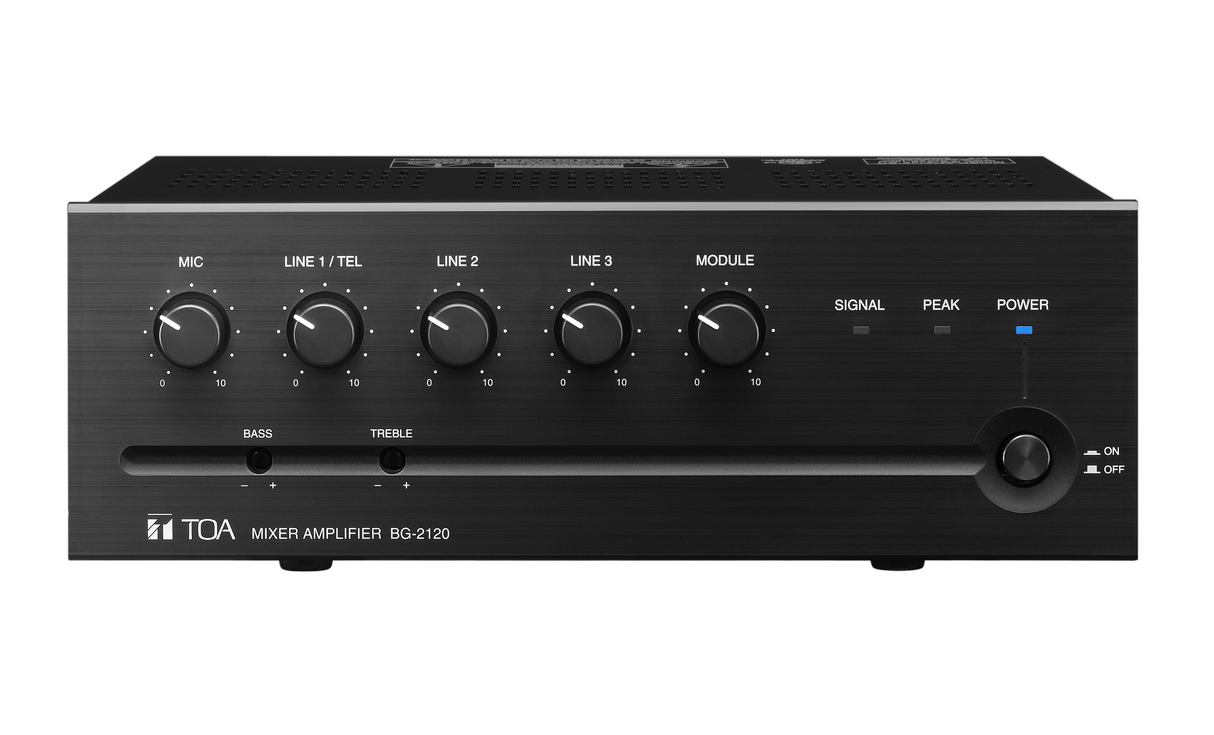

Tamper-proof, front-panel bass and treble controls are recessed to protect their settings.
Auto/manual mute function with adjustable muting sensitivity.
Incorporates Remote volume control connection.

In the Box

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Channels

5 Channel
Width

10.52 in
Height

3.71 in
Depth

10.39"
Weight

11.68 lb
