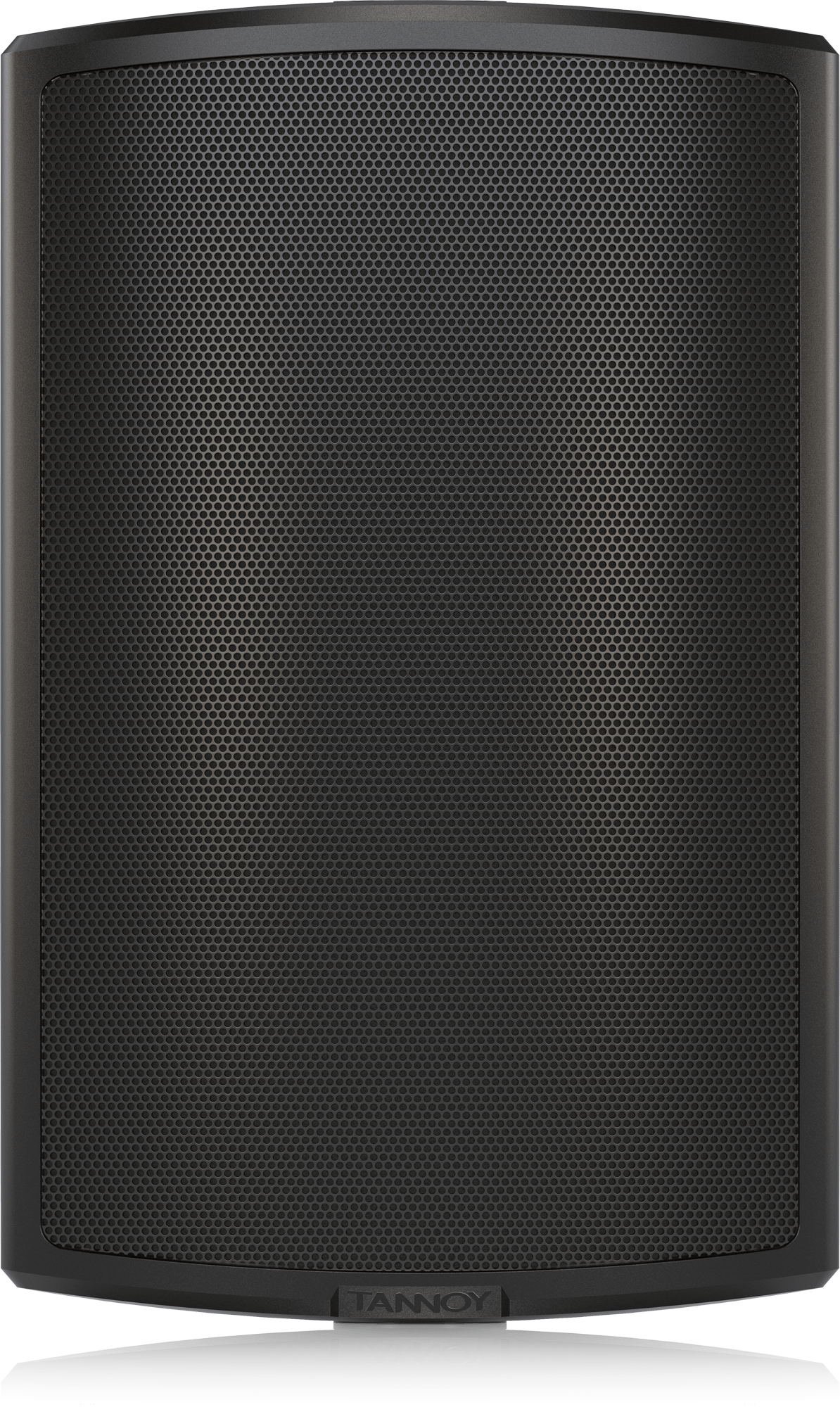

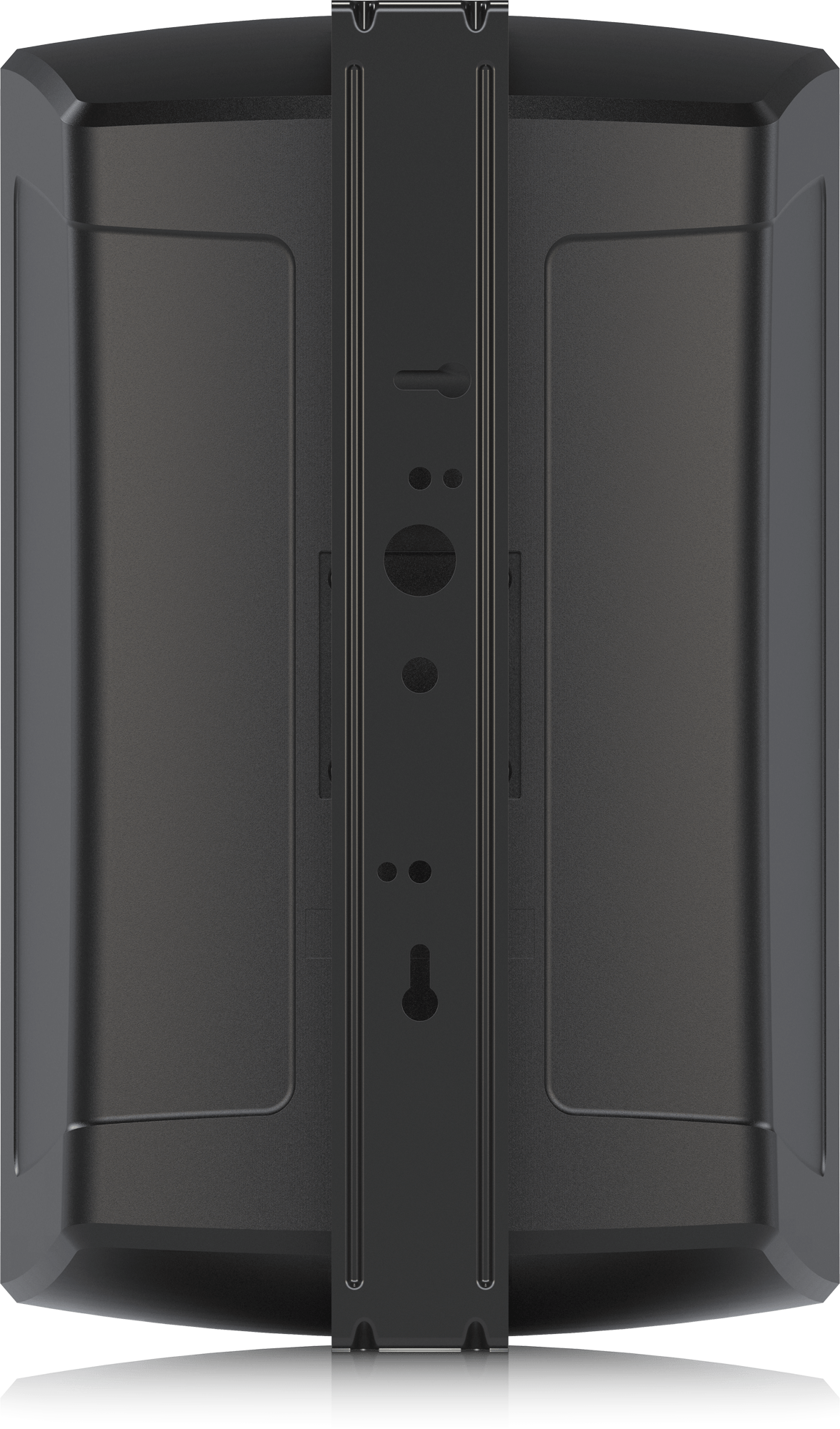

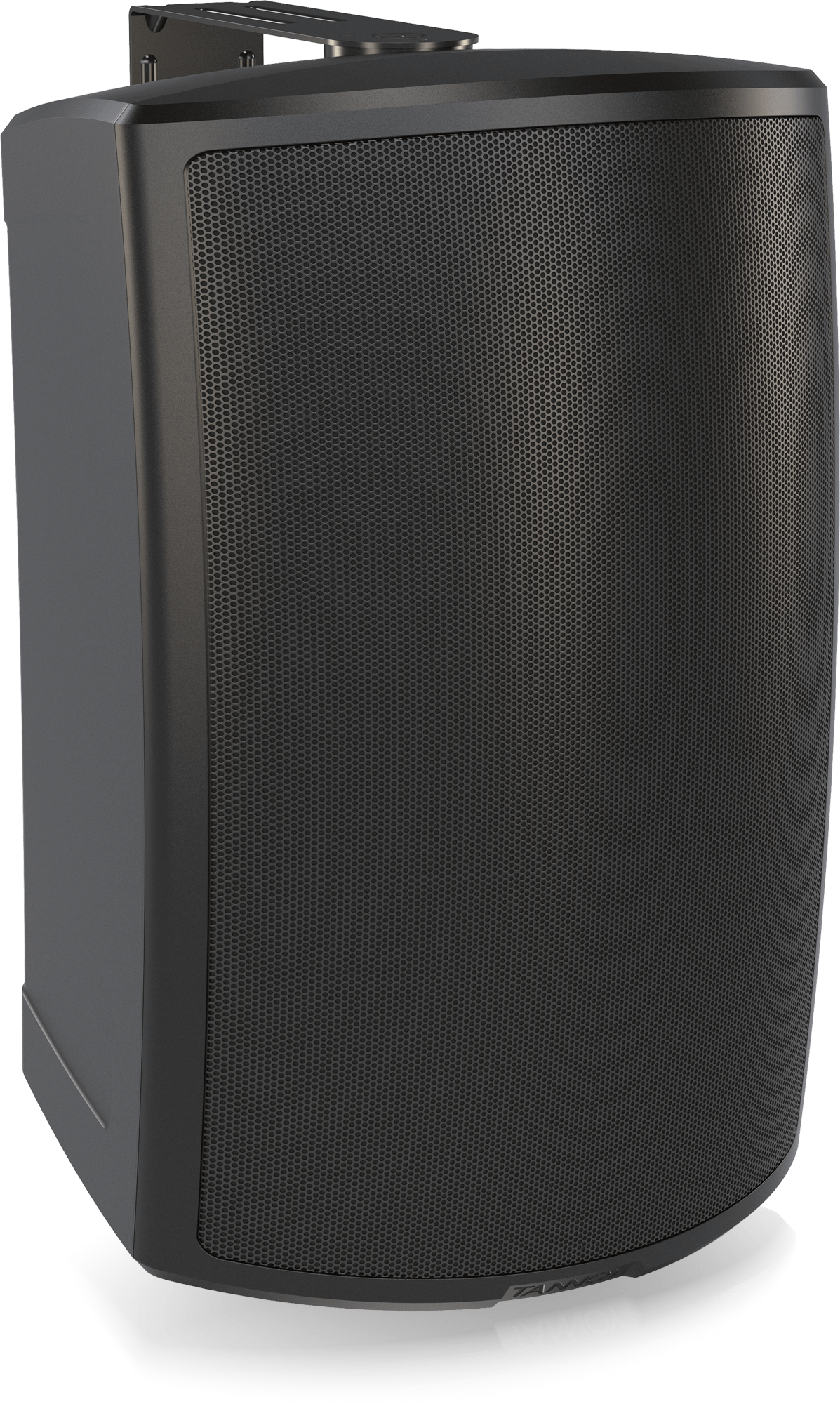

Tannoy AMS8DC-BK 8" Dual Concentric Surface Mount Loudspeaker Black

Tannoy AMS8DC-BK 8" Dual Concentric Surface Mount Loudspeaker Black

Login for Pricing

MSRP: $2156.00

Tannoy | SKU:Tannoy AMS8DC-BK

ITEM: 0189-0075

The AMS 8DC is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.



  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 90 Watts continuous, 380 Watts peak power

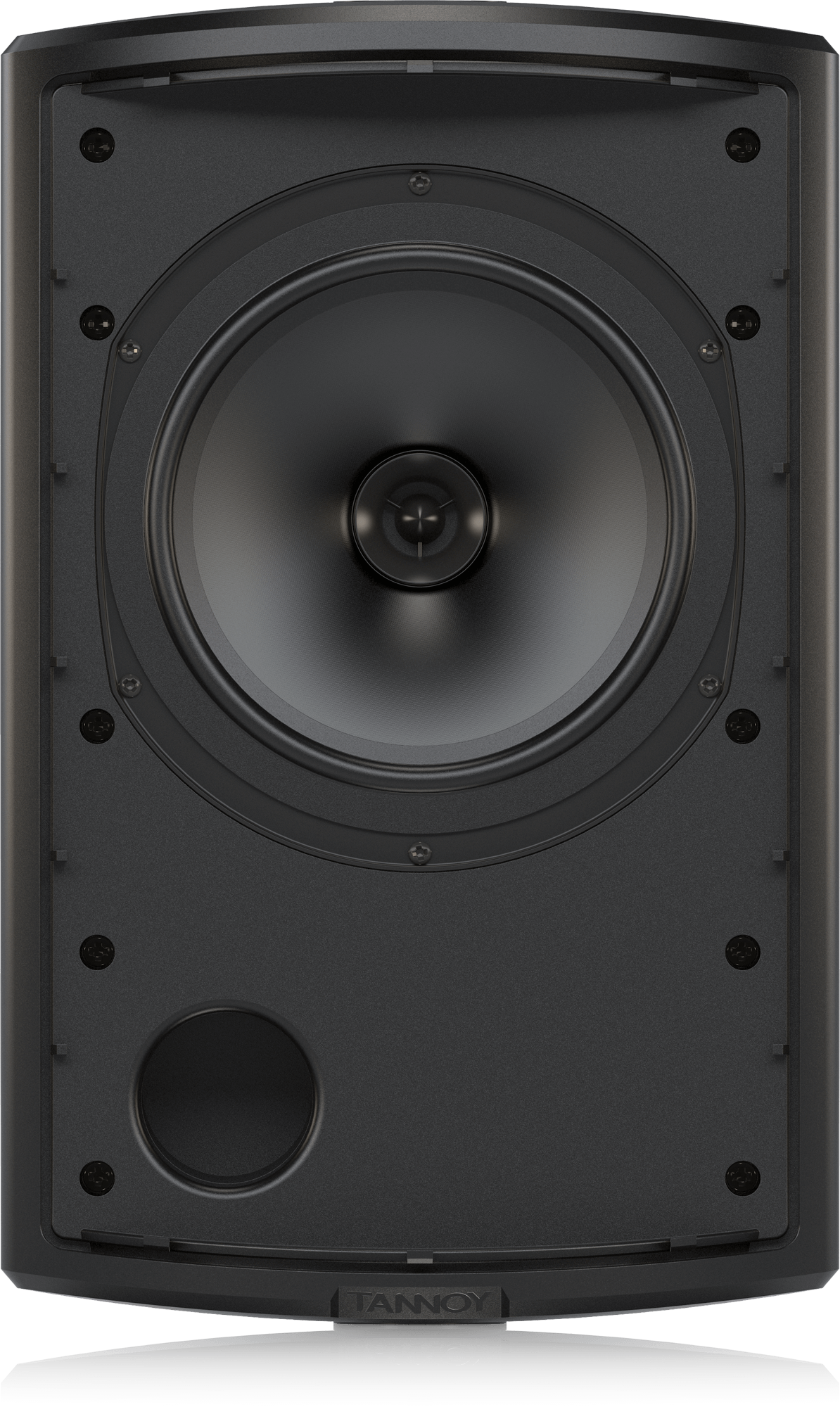

  • 8" next generation Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved high frequency response and directivity
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
  • All components weather resistant to IP65 for outdoor use
  • High temperature resistant ABS enclosure rated at 120°C
  • Semi matt black paint finish fits unobtrusively in any environment
  • Yoke bracket included for ease of installation
  • Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
  • Weatherproof cable gland cover to protect Phoenix* connectors and tap selector switch


  • Dimensions:  16.13 x 10.24 x 12.06"
  • Weight:         17.24 lbs
